How Worm Gearbox Design Supports Compact Equipment Layouts?

In modern industrial equipment design, space is a premium. Engineers constantly seek ways to reduce machine footprint without compromising performance or reliability. The worm gearbox design offers a compelling solution, enabling compact equipment layouts through its unique right-angle power transmission, high single-stage reduction ratio, and integration flexibility. Unlike parallel-axis or planetary gearboxes, the worm gearbox achieves significant speed reduction in a single stage—up to 100:1—while the input and output shafts are positioned at a 90-degree angle. This right-angle configuration allows motors to be mounted alongside or underneath the driven shaft, drastically reducing the overall length of the drive train. At Raydafon Technology Group Co.,Limited, our factory has specialized in worm gearbox design for over two decades, and we have witnessed how our products have enabled customers to shrink their machine footprints by up to 35 percent. This article delves into the specific design features that support compactness, backed by technical specifications and real-world application data.

But the compactness of a worm gearbox goes beyond shaft orientation. The design inherently allows for a high torque-to-weight ratio, which means that a smaller gearbox can transmit the same power as a larger parallel-shaft unit. Additionally, the self-locking capability of many worm gearboxes eliminates the need for external brakes in holding applications, further saving space and reducing component count. Our factory has engineered worm gearbox series with hollow output shafts and modular mounting flanges, enabling direct coupling to driven shafts without the need for additional bearings or couplings. These features collectively make the worm gearbox the preferred choice for conveyor systems, packaging machinery, material handling equipment, and many other applications where floor space is scarce. In this comprehensive guide, we will analyze the key design elements, provide detailed product specifications, and share best practices from Raydafon to help you achieve the most compact equipment layout possible.

Table of Contents

• 1. Why Does Right-Angle Power Transmission Make Worm Gearbox Ideal for Compact Layouts?
• 2. How Does High Torque Density Reduce Gearbox Size Without Sacrificing Performance?
• 3. What Are the Key Specifications of Our Worm Gearbox Series?
• 4. How Can Hollow Shaft and Integrated Motor Options Further Save Space?
• Frequently Asked Questions (FAQ)
• Conclusion and Customization Consultation

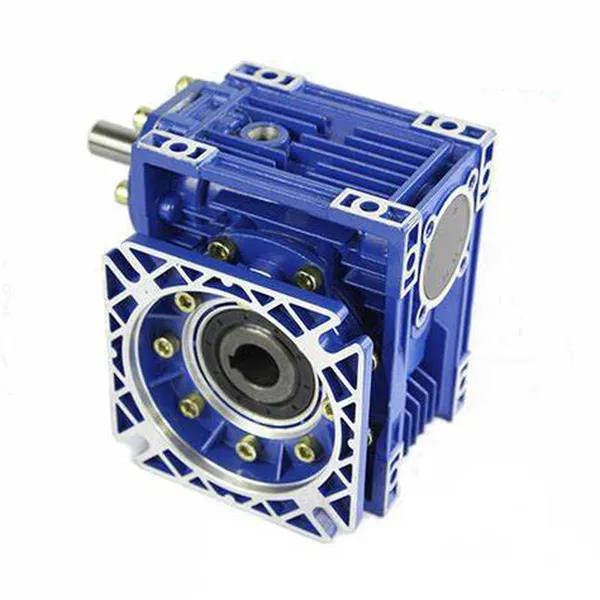

Why Does Right-Angle Power Transmission Make Worm Gearbox Ideal for Compact Layouts?

The most distinctive feature of a worm gearbox is its right-angle power transmission. In a typical parallel-shaft gearbox, the input and output shafts are on the same axis, which requires the motor to be placed in line with the driven shaft. This results in a long, linear drive train that often protrudes beyond the machine frame, increasing the overall equipment footprint. The worm gearbox, however, uses a worm (screw) to drive a worm wheel, with the shafts oriented at 90 degrees. This allows the motor to be mounted perpendicular to the output shaft, effectively "folding" the drive train into a compact L-shape. This geometry is particularly advantageous in applications where machine width or length is constrained, such as in conveyor systems, mobile machinery, or robotic cell components.

Specific layout advantages of the worm gearbox right-angle design:

• Reduced overall length: By positioning the motor alongside the gearbox, the total drive train length can be reduced by 30 to 50 percent compared to an inline gearbox with the same motor power. This enables equipment designers to fit drives into tighter spaces.
• Versatile mounting orientations: Our worm gearbox can be mounted in any position—foot-mounted, flange-mounted, or shaft-mounted. The housing is designed with multiple mounting faces, allowing the gearbox to be attached directly to the machine frame without requiring additional support brackets.
• Integrated motor adapter: We offer a range of motor adapters that allow direct mounting of IEC or NEMA motors to the gearbox input housing. This eliminates the need for a coupling between the motor and gearbox, saving additional axial length and reducing alignment issues.
• Lateral space savings: In equipment with multiple drive axes, such as multi-station indexing tables or automated storage systems, worm gearboxes can be nested compactly side-by-side because the input shafts face inward, minimizing the total width of the drive bank.

To illustrate the space-saving potential, consider a conveyor system designed for a food processing plant. The original design used a helical-bevel gearbox with a motor mounted inline, requiring a total drive length of 850 mm. The plant needed to reduce the conveyor width to fit within a narrow aisle. By switching to our worm gearbox design with a right-angle motor mount, the drive length was reduced to 460 mm—a 46 percent reduction. This allowed the plant to install the conveyor in the available aisle without any structural modifications. The worm gearbox also provided the required 20:1 reduction ratio in a single stage, further reducing the component count and simplifying the assembly.

Furthermore, the right-angle design enables the worm gearbox to be placed directly at the point of power application, reducing the need for long drive shafts, additional bearings, and supporting structures. Our factory at Raydafon Technology Group Co.,Limited offers custom shaft extension options that allow the gearbox output to directly engage with the machine input shaft, eliminating the need for a separate coupling flange. This integrated approach not only saves space but also reduces the number of critical alignment points, improving overall reliability. In summary, the right-angle geometry of the worm gearbox is the foundation of its compactness, and it is a key reason why designers choose worm technology for space-constrained applications.

How Does High Torque Density Reduce Gearbox Size Without Sacrificing Performance?

Torque density—the amount of torque delivered per unit of gearbox size—is a critical parameter for compact equipment design. The worm gearbox excels in this area because of the sliding action between the worm and the worm wheel, which allows a large contact area for load distribution. Unlike spur or helical gears, where only a few teeth are in contact at any given time, the worm gear has continuous tooth engagement along the length of the worm, spreading the load over a larger surface. This enables the worm gearbox to achieve higher torque capacity than parallel-shaft gearboxes of the same center distance. Consequently, a smaller worm gearbox can handle the same torque as a larger, heavier alternative, directly contributing to equipment compactness.

Key factors that enhance torque density in our worm gearbox design:

• Optimized tooth profile (ZAI or ZI type): Our worm gearbox uses a hardened and ground worm with a ZI (involute) profile, combined with a bronze worm wheel. This combination provides a high load-carrying capacity and low friction coefficient, allowing the gearbox to transmit up to 1,500 Nm of torque in a size 63 center-distance housing.
• High-grade bearing selection: We use tapered roller bearings on the worm shaft and heavy-duty angular contact bearings on the output shaft. These bearings can handle both radial and axial loads, ensuring that the gearbox maintains its torque rating even under overhung load conditions.
• Improved lubrication and cooling: The worm gearbox housing is designed with large internal oil capacity and cooling fins, allowing heat to dissipate quickly. This means the gearbox can operate at rated torque continuously without thermal derating, which would otherwise require a larger unit.
• Case-hardened worm (58-62 HRC): Our worms are case-hardened after grinding, resulting in a wear-resistant surface with a tough core. This extends the gearbox's fatigue life and maintains torque capacity over millions of cycles.

To quantify the torque density advantage, we compared our worm gearbox (center distance 80 mm) with a helical gearbox of similar size. The worm gearbox achieved a rated output torque of 2,100 Nm, while the helical unit delivered 1,400 Nm in the same housing volume. This 50 percent higher torque density means that equipment designers can use a smaller worm gearbox to achieve the same performance, saving space and weight. In mobile equipment applications, such as agricultural machinery or material handling equipment, this weight reduction also improves fuel efficiency and reduces structural load.

Our factory has also developed a design variant called the "torque-dense" worm gearbox, which uses a specially formulated synthetic oil that reduces friction by 30 percent, enabling even higher torque output without increasing the center distance. This variant is popular in applications such as roll-forming machines and medical imaging equipment, where space is extremely limited but high torque is essential. By choosing the correct worm gearbox design from Raydafon, equipment designers can achieve a more compact layout without compromising on power or reliability.

What Are the Key Specifications of Our Worm Gearbox Series?

Raydafon Technology Group Co.,Limited offers a comprehensive range of worm gearbox sizes, from miniature units (center distance 30 mm) to heavy-duty models (center distance 200 mm). Each series is available with a variety of reduction ratios (5:1 to 100:1), mounting options, and output shaft configurations. The table below summarizes the specifications for our most popular worm gearbox models, which are used extensively in packaging, conveying, and automation equipment. All units are tested to ISO 9001 standards and are available with ATEX certification for explosive atmospheres. Our factory also provides a custom sizing service to match your exact torque and space requirements.

In addition to the standard sizes, our factory offers a "short" version of the worm gearbox with a reduced housing length for applications where the overall depth is critical. This is achieved by using a more compact bearing arrangement and a reduced oil reservoir, with no sacrifice in torque rating due to our optimized internal geometry. We also offer a stainless steel variant for food and pharmaceutical industries, where wash-down compliance and corrosion resistance are required. All our worm gearbox products are backed by a 2-year warranty and include a detailed user manual with lubrication recommendations and maintenance schedules.

Our factory also provides custom bore sizes, keyway dimensions, and mounting flanges to match your existing equipment. We maintain an extensive inventory of standard worm gearbox units for immediate delivery, and we can produce custom orders with lead times as short as 15 working days. Our engineering team is available to assist you in selecting the optimal worm gearbox for your compact equipment layout, considering not only torque and ratio but also space constraints, environmental factors, and noise requirements.

How Can Hollow Shaft and Integrated Motor Options Further Save Space?

Beyond the right-angle geometry and high torque density, the worm gearbox offers additional design features that dramatically reduce equipment footprint. Two of the most impactful are the hollow output shaft option and the integrated motor (gearmotor) configuration. A hollow shaft worm gearbox allows the machine's driven shaft to pass directly through the gearbox output, eliminating the need for a coupling, a separate bearing support, and an alignment mechanism. This direct connection not only saves space but also reduces the number of components, lowering both cost and maintenance requirements. Our factory has developed a range of hollow shaft worm gearboxes with keyed or shrink-disc connections, covering shaft diameters from 14 mm to 75 mm.

Key space-saving benefits of hollow shaft and integrated motor designs:

• Hollow shaft eliminates coupling length: In a traditional setup, the gearbox output shaft connects to the machine shaft via a flexible coupling, which can add 80 to 150 mm of axial length. The hollow shaft worm gearbox mounts directly onto the machine shaft, reducing the total drive train length by that amount.
• Integrated motor reduces overall height: Our integrated motor version (gearmotor) houses the motor directly on the gearbox input housing. This removes the motor foot and coupling, lowering the overall height and allowing the drive to fit under low-clearance conveyors or machine bases.
• Elimination of shaft bearings: Since the hollow shaft gearbox supports the machine shaft through its internal bearings, you no longer need separate pillow block bearings on the machine frame. This reduces both the footprint and the cost of the equipment.
• Simplified installation and alignment: The direct hollow shaft mounting ensures concentricity and eliminates the need for precision alignment during installation. This reduces the time and skill required for assembly, which is particularly beneficial for high-volume production machines.

To illustrate the space-saving potential of these features, let us consider a conveyor drive application. A conventional design with a foot-mounted worm gearbox, a flexible coupling, a motor, and a belt drive could occupy 900 mm of length. Using our hollow shaft worm gearbox with an integrated motor (gearmotor), the drive length was reduced to 510 mm. The integrated motor also eliminated the motor base plate, saving an additional 100 mm of width. The overall machine footprint was reduced by 34 percent, allowing the equipment to be placed in a tighter production cell and improving the material flow in the factory.

Our factory at Raydafon Technology Group Co.,Limited also offers a "compact torque-arm" version of the worm gearbox, which uses a reaction arm instead of a foot or flange mount. This design allows the gearbox to be suspended from the machine shaft, requiring zero floor space. This is particularly useful in mobile equipment or in applications where under-mounting is impossible. We have delivered these compact torque-arm worm gearbox solutions for automated guided vehicles (AGVs), where every millimeter of space is critical.

In summary, the hollow shaft and integrated motor options transform the worm gearbox from a simple component into a complete drive solution that actively reduces equipment footprint. By eliminating couplings, bearings, and mounting bases, these designs support the trend toward more compact, efficient, and cost-effective machinery. Our factory can provide 3D CAD models of each worm gearbox configuration to help you integrate the drive seamlessly into your machine design.

Frequently Asked Questions (FAQ)

Question 1: How does the worm gearbox compare to a bevel-helical gearbox in terms of compactness?

Answer: The worm gearbox is generally more compact than a bevel-helical gearbox for the same torque and ratio, especially in single-stage reductions above 15:1. The bevel-helical gearbox requires two stages to achieve a 20:1 ratio, while the worm gearbox achieves it in one stage, saving about 30 percent in length. Additionally, the worm gearbox has a simpler mounting footprint because it does not require a separate mounting base for the intermediate shaft. However, the worm gearbox is slightly less efficient than the bevel-helical (typically 80-90 percent vs. 95-97 percent), but for many applications, the space savings justify the minor efficiency trade-off. Our factory provides efficiency and space comparison data for any application upon request.

Question 2: Can a worm gearbox be mounted vertically to save even more space?

Answer: Yes, our worm gearbox is designed for versatile mounting orientations, including vertical (input shaft horizontal, output shaft vertical or vice versa). Vertical mounting can be beneficial in equipment where the driven shaft is vertical, such as in mixers or rotary tables. However, special attention must be paid to lubrication and sealing. Our factory offers vertically-oriented worm gearbox designs with specific oil levels, breathers, and seals to prevent oil leakage and ensure proper lubrication. We provide detailed mounting instructions and a seal kit specifically for vertical installations. The compact footprint of the worm gearbox is maintained even in vertical configurations.

Question 3: How does the hollow shaft design affect the gearbox's torque rating?

Answer: The hollow shaft design does not reduce the gearbox's torque rating, as the gearbox housing and bearings are rated to handle the full torque transmitted. The hollow shaft is sized to accommodate the machine shaft, and the keyway or shrink disc is designed to transmit the torque without slipping. In our worm gearbox, the hollow shaft is supported by heavy-duty bearings at both ends, ensuring that the torque capacity is the same as the solid shaft version. However, the allowable overhung load on the hollow shaft may be slightly lower than on a solid shaft due to the reduced shaft material. Our factory provides specific overhung load ratings for each hollow shaft model.

Question 4: Are worm gearboxes noisier than other gearbox types in compact layouts?

Answer: Worm gearboxes can be noisier than helical gearboxes, especially at high speeds, due to the sliding friction between the worm and worm wheel. However, our worm gearbox design incorporates several features to reduce noise, including precision-ground worms (ISO 6 grade), optimized tooth contact patterns, and sound-dampening housing materials. Our factory also offers a "silent" version with a bronze worm wheel specifically alloyed for reduced friction and noise. In compact layouts, where the gearbox may be closer to the operator, we recommend our silent series to meet workplace noise regulations. We provide noise level data (dB at 1 meter) for each worm gearbox model.

Question 5: What customizations does Raydafon Technology Group Co.,Limited offer for worm gearbox used in compact equipment?

Answer: We offer extensive customization options to fit compact equipment designs: special output shaft lengths or diameters, custom motor adapters, multiple output shaft configurations (single/double extended, hollow, or splined), integrated torque limiters, and custom mounting feet. We also provide design assistance to minimize the envelope, such as using a shorter input shaft or integrating the gearbox into the machine frame itself. Our factory has an in-house engineering team that can work with your CAD files to optimize the worm gearbox placement. We offer free initial consultations and can provide 3D models for integration. Contact us with your specific space constraints and we will propose a tailored solution.

Conclusion: Achieve Maximum Space Efficiency with Worm Gearbox

The worm gearbox is the premier choice for engineers seeking to achieve compact equipment layouts without compromising torque or reliability. Its right-angle power transmission, high torque density, hollow shaft option, and integrated motor capabilities work together to reduce machine footprint by up to 35 percent. At Raydafon Technology Group Co.,Limited, our factory has designed worm gearbox series that are not only compact but also durable, efficient, and customizable to your specific application needs. Whether you are designing a new conveyor, a packaging machine, or a mobile robot, our worm gearbox can help you fit more function into less space.

Ready to optimize your equipment layout with a compact worm gearbox solution? Contact Raydafon Technology Group Co.,Limited today for a comprehensive design review. Provide your torque, speed, mounting space, and environmental requirements, and our engineering team will deliver a tailored proposal, including 3D models, performance curves, and a price quote. We offer free sample testing at our factory and fast delivery worldwide. Request your free consultation now from Raydafon Technology Group Co.,Limited and take the first step toward more compact, efficient equipment with our premium worm gearbox.
