Wind Turbine Gearbox

As a professional wind turbine gearbox manufacturer and factory in China, Raydafon relies on its strong mechanical manufacturing foundation and technical accumulation to provide global customers with wind turbine gearboxes with both performance and price advantages. We always adhere to strict cost control in exchange for reasonable prices and high quality to ensure stable supply. We are a long-term supplier worthy of trust from domestic and foreign customers.

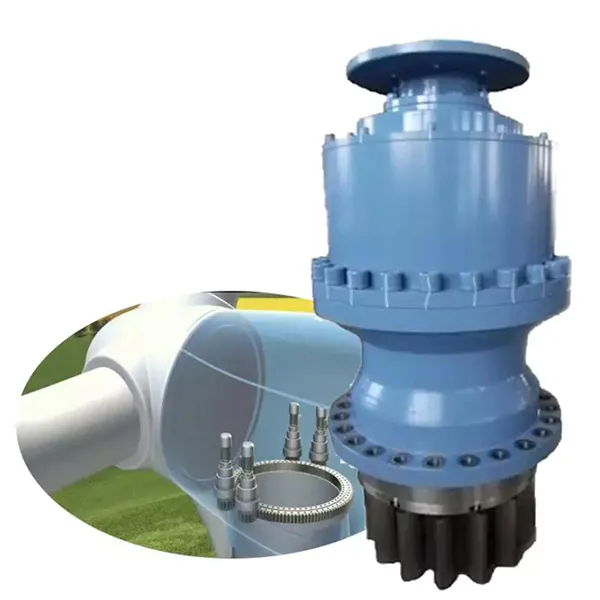

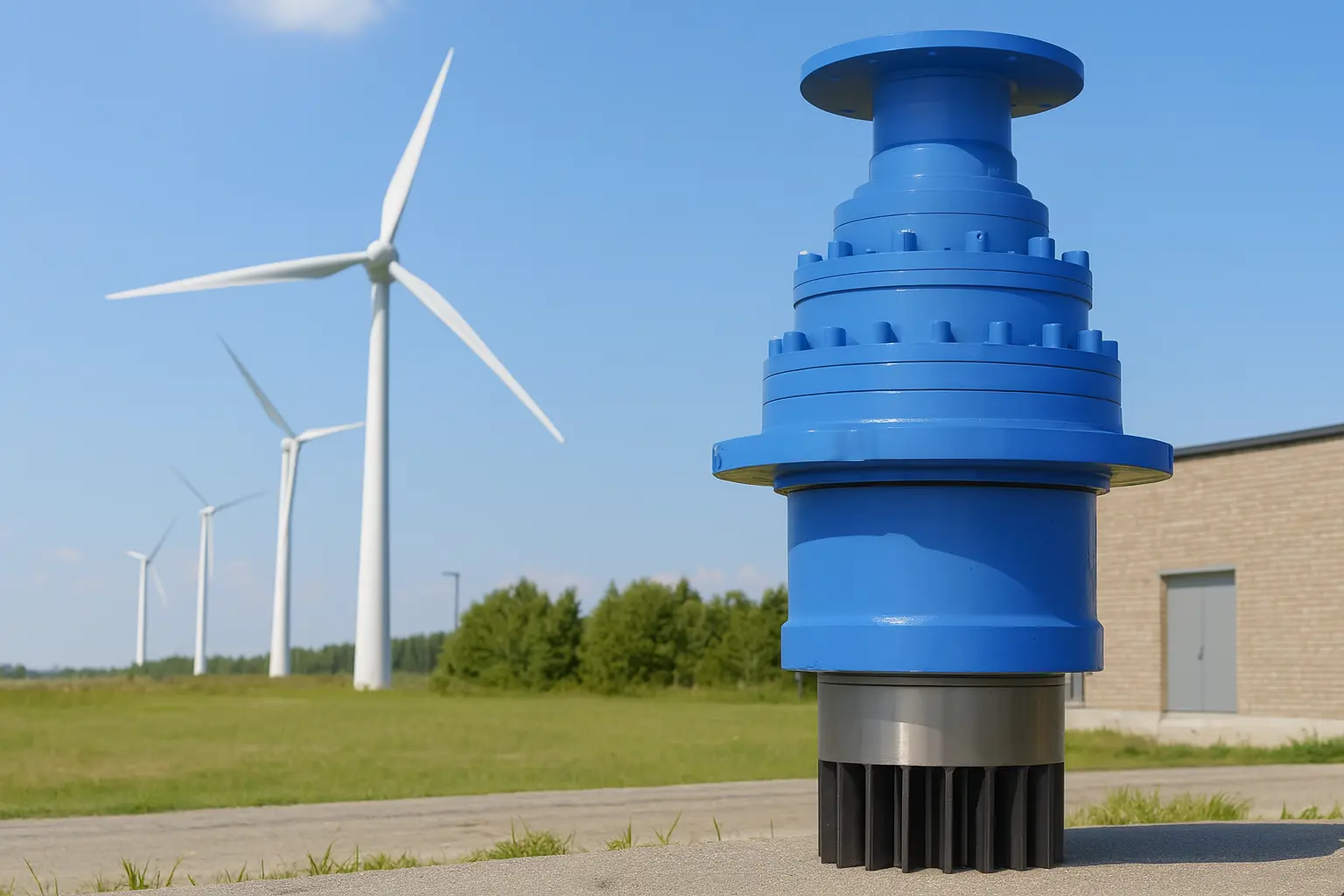

Raydafon Wind Turbine Gearbox is designed for wind power generation systems and is suitable for wind turbine platforms of all levels from 500kW to 5MW. Whether it is small and medium-sized units in onshore wind farms or large wind turbines in offshore wind power projects, our products can meet the operating requirements in different environments with excellent torque transmission capabilities and extremely low operating noise. The gearbox adopts a multi-stage planetary + parallel shaft composite structure with high transmission ratio, compact layout and excellent impact resistance, which can effectively reduce the vibration of the whole machine and gear fatigue in long-term operation.

Each Raydafon Wind Turbine Gearbox is produced in its own factory from core component processing to whole machine assembly. We use high-purity 18CrNiMo7-6 alloy steel. After deep carburizing + precision grinding, the tooth surface hardness reaches HRC 60±2, ensuring a service life of more than 20 years. We use German imported machining centers and gear measuring instruments for tooth shape optimization and dynamic balancing detection to ensure that the gear meshing error is less than 5μm, ensuring transmission accuracy from the source.

Whether you are a wind turbine host manufacturer, system integrator, or new energy project party, we can tailor a highly matched transmission solution according to your needs. If you need to obtain more parameter drawings or operation cases, please feel free to contact Raydafon's technical engineering team for quick response and professional docking to help wind power projects land efficiently.

How Does A Wind Turbine Gearbox Work

The function of a wind turbine gearbox is to convert the low-speed high torque generated by the slow rotation of the wind blades into a high-speed output suitable for the generator input through a precision gear transmission structure. Specifically, the wind drives the main shaft to rotate slowly through the wind wheel. After this rotation enters the low-speed shaft of the gearbox, the speed is increased from about 20rpm to more than 1500rpm through a multi-stage helical gear or planetary gear set to meet the high speed requirements of the generator.

Raydafon's Wind Turbine Gearbox adopts a composite structure of planetary and helical gears, which effectively shares the load while improving transmission efficiency and extending the life of the whole machine. 18CrNiMo7-6 carburized alloy steel is selected as the gear material, and the tooth surface hardness reaches HRC60 or above, so it can withstand long-term operation in complex wind farm environments such as extreme cold, high humidity, and salt spray. The key internal components, such as bearings and seals, are all selected from internationally renowned brands to ensure stable system operation and reduce maintenance frequency. Raydafon's Wind Turbine Gearbox products are widely used in onshore and offshore wind turbines, with power ranges from 1.5MW to 5MW, compatible with a variety of complete machine designs, and support customized interfaces.

It is worth mentioning that in addition to wind power gearboxes, Raydafon also specializes in the production of transmission and hydraulic products such as agricultural gearbox, planetary gearbox, PTO shaft, hydraulic cylinder, etc., covering agricultural machinery, industrial automation, engineering machinery and other fields. We have been deeply involved in the field of precision machinery manufacturing for many years, with independent factories and R&D centers. The production system has passed ISO 9001 and CE certification, which can not only provide stable supply, but also quickly respond to personalized customization needs.

Raydafon always adheres to high reliability, high efficiency and long life as the core, and provides reliable power transmission solutions for global new energy equipment manufacturers. If you have any questions about the selection or installation of wind power gearboxes, please contact our engineering and technical team for detailed information and suggestions.
