SWC-WH Without Flex Welding Type Universal Coupling

SWC-WH Without Flex Welding Type Universal Coupling

Raydafon's SWC-WH Without Flex Welding Type Universal Coupling non-elastic welded universal couplings utilize welded connections to ensure reliable transmission, making them a reliable choice for high-load applications like metallurgical and mining equipment. We are a physical coupling manufacturer in China. As a reliable manufacturer, we offer a stable supply and can tailor details to your equipment's specifications. For pricing details, please contact us directly.
Welded Yoke · No Flex Element · OEM Ready

SWC-WH Without Flex Welding Type Universal Coupling for Heavy-Duty Drive Shafts

A rigid, welding-type cardan coupling built for rolling mills, cranes, mining and metallurgical drives. Welded yoke removes bolted-joint loosening. Precision needle bearings keep friction low. Bore 100–550 mm, torque up to 710 kN·m, 35CrMo alloy steel, ISO 9001 production in Ningbo, China.

Bore100 – 550 mm
Nominal Torque1.25 – 710 kN·m
Fold Angle15° – 25°
Material35CrMo Steel
MOQ1 Piece
Lead Time15 – 30 Days
SWC-WH without flex welding type universal coupling welded yoke product photo

01What Is an SWC-WH Without Flex Welding Type Universal Coupling?

The SWC-WH is a rigid universal joint coupling that transmits torque through a welded yoke and a central cross running on precision needle bearings. Unlike flex-type couplings, it contains no elastic element, so there is no rubber, no spring pack and no compensating flex member to wear out. That makes it the preferred choice when the drive demands high torque, high shock resistance and long service life rather than torsional damping.

The welded yoke is the key difference from bolted-yoke designs. Under continuous vibration, bolted joints can loosen, causing fretting, backlash and eventually failure. Welding removes that failure mode entirely. For buyers sourcing universal couplings for industrial drive shafts, this translates to fewer maintenance stops and a lower total cost of ownership across the coupling's service life.

If your application needs torsional compliance instead of rigidity, compare it with the SWC-BH standard flex welding type or the long-span SWC-CH long flex welding type, which add a flexible element between the two yokes.

02SWC-WH Technical Specifications: Bore, Torque and Misalignment Range

The table below lists every standard size in the SWC-WH series. Use it to match your shaft diameter, required nominal torque and available installation length before requesting a quotation. Custom bores, keyways and lengths are available on request.

SWC-WH Without Flex Welding Type Universal Coupling — Full Size Chart
Model D (mm) Tn (kN·m) Tf (kN·m) β (°) Lmin D1 (js11) D2 (H7) D3 Lm n-d k t b (h9) g Inertia (kg·m²) Weight (kg)
Lmin +100mm Lmin +100mm
SWC100WH 100 1.25 0.63 25 243 84 57 60 55 6-9 7 2.5 - - 0.0039 0.00019 4.5 0.35
SWC120WH 120 2.5 1.25 25 307 102 75 70 65 8-11 8 2.5 - - 0.0096 0.00044 7.7 0.55
SWC150WH 150 5 2.5 25 350 130 90 89 80 8-13 10 3 - - 0.371 0.00157 18 24.5
SWC180WH 180 12.5 6.3 25 180 155 105 114 110 8-17 17 5 - - 0.15 0.007 48 2.8
SWC225WH 225 40 20 15 520 196 135 152 120 8-17 20 5 32 9 0.365 0.0234 78 4.9
SWC250WH 250 63 31.5 15 620 218 150 168 140 8-19 25 6 40 12.5 0.817 0.0277 124 5.3
SWC285WH 285 90 45 15 720 245 170 194 160 8-21 27 7 40 15 1.756 0.051 185 6.3
SWC315WH 315 125 63 15 805 280 185 219 219 10-23 32 8 40 15 2.893 0.0795 262 8
SWC350WH 350 180 90 15 875 310 210 267 194 10-23 35 8 50 16 5.013 0.2219 374 15
SWC390WH 390 250 125 15 955 345 235 267 215 10-25 40 8 70 18 8.406 0.2219 506 15
SWC440WH 440 355 180 15 1155 390 255 325 260 16-28 42 10 80 20 15.79 0.4744 790 21.7
SWC490WH 490 500 250 15 1205 435 275 325 270 16-31 47 12 90 22.5 26.54 0.4744 1014 21.7
SWC550WH 550 710 355 15 1355 492 320 426 325 16-31 50 12 100 22.5 48.32 1.357 1526 34

Angular Only

SWC-WH compensates angular misalignment up to 15°–25°. For axial travel, pair it with a sliding spline shaft.

Torque Selection

Apply a service factor of 1.5–2.5 on nominal torque depending on shock level and duty cycle.

Bore Matching

Standard D1 js11 / D2 H7 bores listed above. Custom stepped or splined bores available.

Flange Alternative

If your shaft uses a flange interface, see the SWC-WF flange type in the same series.

SWC-WH universal coupling welded yoke and needle bearing cross detail

03Why Buyers Specify Welded Yoke Couplings for Heavy-Duty Machinery

Procurement engineers choose the SWC-WH for three commercial reasons: lower downtime, fewer replacement cycles and lower total cost per operating hour.

  • No bolted joint loosening. The welded yoke removes the vibration-loosening failure mode that shortens the life of bolted-yoke couplings in rolling mills and crushers.
  • High torque density. Up to 710 kN·m nominal torque in a compact envelope, covering most heavy drive shaft duties.
  • Precision needle bearings. Low friction, high efficiency and a long grease interval reduce maintenance labor.
  • 35CrMo alloy steel. Heat-treated for wear, fatigue and shock resistance in mining, metallurgy and marine environments.
  • Wide angular tolerance. 15°–25° compensation reduces alignment cost during installation.
  • Serviceable design. Replaceable wear parts extend the coupling's economic life beyond a single replacement cycle.

04Where SWC-WH Couplings Are Used: Applications and Industries

The SWC-WH is specified wherever a rigid, high-torque coupling must survive continuous shock and vibration. Typical installations include:

Steel Rolling Mills Metallurgical Lines Overhead Cranes Port Hoisting Machinery Mining Conveyors Crushers and Drilling Rigs Marine Propulsion Deck Machinery Cement and Paper Drives Heavy-Duty Test Benches Renewable Energy Drives Chemical Process Lines

If your drive also requires axial displacement or torsional compliance, review the full universal coupling range or the alternative gear coupling series before specifying.

05Custom SWC-WH Couplings: OEM, Private Label and Drawing-Based Production

Raydafon is an OEM universal coupling manufacturer, not a trading company. Customization is handled inside our own ISO 9001 facility in Ningbo, China.

Bore & Keyway

D1 js11, D2 H7 or custom tolerance. Parallel key, spline or shrink-disc interface.

Flange Pattern

Bolt circle, pilot diameter and bolt count matched to your mating flange drawing.

Length & Balance

Lmin and extended lengths. Dynamic balance grades for high-speed shafts.

Coating & Marking

Painting, black oxide, zinc plating. Private-label nameplate and marking.

Send a PDF, DWG, DXF or STEP drawing with your shaft dimensions and duty cycle. Our engineers return a sized recommendation and quotation within 24 hours.

06Quality Control, Certifications and 12-Month Warranty

Every SWC-WH coupling passes a documented inspection route before shipment. This is the evidence trail overseas buyers rely on for vendor approval and incoming inspection.

  • ISO 9001 certified manufacturing process
  • Incoming steel verification and heat-treatment records
  • Dimensional inspection report for bore, keyway and Lmin
  • Weld inspection on the yoke joint
  • Bearing fit and rotation test before packing
  • 12-month limited warranty against manufacturing defects
Raydafon universal coupling manufacturing workshop Ningbo China

07How to Order: MOQ, Lead Time, Packing and Shipping

MOQ

1 piece for standard sizes. Volume pricing from 50 pieces.

Lead Time

15–30 days after drawing confirmation and deposit.

Packing

Wooden case, VCI anti-rust film, desiccant, custom pallet for large sizes.

Shipping

Sea, air or express. EXW / FOB / CIF / DDP terms available.

Documents

CI, PL, CO, Form A/E, material certificate, dimensional report.

Payment

T/T, L/C at sight, and other terms negotiable for repeat buyers.

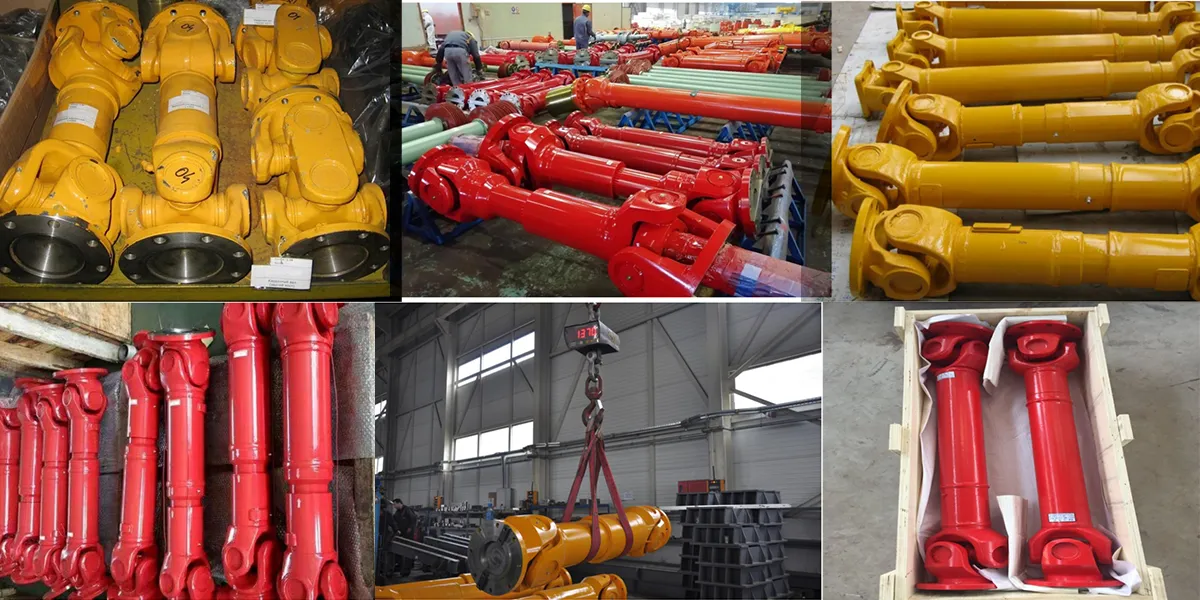

SWC-WH universal coupling inspection and assembly line

08SWC-WH Universal Coupling Buyer FAQ

What does "without flex welding type" mean on the SWC-WH coupling?

It means the coupling has no elastic or flexible element in the torque path, and the yoke is joined by welding rather than bolting. This removes bolted-joint loosening under vibration and raises structural rigidity. It is the right choice for high-torque, high-shock drives where a flexible element is not required.

What is the torque and bore range of the SWC-WH series?

Gyration diameter 100–550 mm, nominal torque 1.25–710 kN·m, fatigue torque 0.63–355 kN·m, standard bore D1 57–426 mm. Custom bores and stepped shafts are available.

What material and bearings are used?

Yokes and flanges are heat-treated 35CrMo alloy steel. The cross journal runs on precision needle bearings to reduce friction and extend service life under continuous industrial duty.

What is the maximum misalignment angle?

Depending on size, 15° to 25° of angular misalignment. The SWC-WH does not compensate axial displacement — pair it with a sliding spline or telescopic shaft if axial travel exists.

Do you offer OEM or custom SWC-WH couplings?

Yes. We customize bore, keyway, flange pattern, length, balance grade, surface treatment and nameplate. Send a PDF, DWG, DXF or STEP drawing and we will quote within 24 hours.

What is the MOQ, lead time and warranty?

MOQ 1 piece for standard sizes. Lead time 15–30 days depending on size and customization. 12-month limited warranty against manufacturing defects.

How do I select the correct SWC-WH size for my drive shaft?

Provide nominal torque, peak torque, speed, shaft diameters, misalignment angle and duty cycle. Our engineers will recommend the size with the correct service factor. You can also review the full universal coupling selection guide before contacting us.

Can I get a sample before placing a bulk order?

Yes. Sample orders are accepted for standard sizes. Sample cost and freight are quoted separately and can be credited against the first bulk order.

Request an SWC-WH Universal Coupling Quote

Send your shaft drawing, torque and speed. Our engineers reply within 24 hours with a sized recommendation and factory price.
