Hydraulic Cylinder Manufacturer for Heavy Duty Equipment

Raydafon Hydraulic Cylinder

Hydraulic Cylinder Manufacturer for Excavators, Harvesters, Tractors and Custom Machinery

Raydafon builds hydraulic cylinders for construction machinery, agricultural equipment, industrial machinery and other hydraulic applications. We supply standard and fully customised cylinders based on bore diameter, rod diameter, stroke length, mounting type, working pressure and operating conditions.

Every cylinder is produced against confirmed drawings, samples or key dimensions. Production focuses on dimensional accuracy, sealing performance and stable operation under repeated hydraulic loads — the three factors that decide whether a cylinder lasts a season or a decade.

hydraulic cylinders
01

Hydraulic Cylinder Construction and Main Parts

A hydraulic cylinder converts hydraulic pressure into linear mechanical movement. Its performance depends on how precisely its core components are matched to one another.

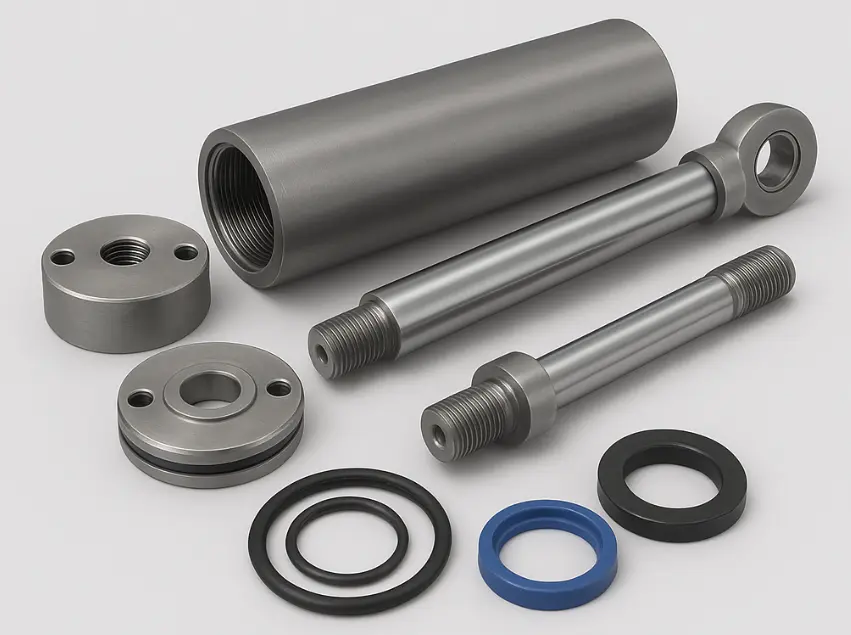

  • Cylinder Barrel — forms the pressure chamber for hydraulic oil and guides the piston assembly.
  • Piston — converts hydraulic pressure into linear force.
  • Piston Rod — transfers cylinder force to the machine mechanism.
  • End Cover — supports and positions internal parts while holding the cylinder structure together.
  • Seals — prevent oil leakage and keep contamination out of the cylinder.
  • Mounting Components — flanges, trunnions, clevises, spherical joints and other connections selected to match installation.
Hydraulic Cylinder Construction and Main Parts
02

How to Measure a Hydraulic Cylinder Before Ordering

Accurate measurement is the difference between a drop-in replacement and a return shipment. Before removing a cylinder, shut the equipment down, release hydraulic pressure and clean the cylinder and connection areas. Use calibrated measuring tools throughout.

How to Measure Hydraulic Cylinder

Five Dimensions We Need First

  • Bore Diameter — internal diameter of the barrel, measured at more than one position to check for wear variation.
  • Rod Diameter — piston rod diameter measured at a clean, unworn section and from different directions.
  • Stroke Length — distance between the fully retracted and fully extended positions.
  • Overall Length — cylinder length in the stated reference position, usually retracted.
  • Mounting Type — confirm the connection at both ends: flange, trunnion, clevis or spherical mounting.
Selection 01 Load and pressure

Required working pressure, thrust or pull force, and duty cycle.

Selection 02 Geometry

Bore, rod, stroke, mounting dimensions and connection type.

Selection 03 Operating conditions

Hydraulic oil type, operating temperature, working environment, movement frequency.

03

Hydraulic Cylinder Applications

Raydafon hydraulic cylinders are built for equipment that needs controlled linear movement and reliable lifting force, day after day, under real field conditions.

Excavators and Loaders Bulldozers and Earthmoving Tractors and Implements Combine and Rice Harvesters Hydraulic Presses Material Handling Equipment Production and Automation Machinery Mining and Heavy Equipment Special-Purpose Custom Machinery
04

Why Choose Raydafon as Your Hydraulic Cylinder Supplier

Built around drawings, samples and operating conditions

Rather than forcing a catalogue part into your machine, we start from the cylinder's real working conditions and work back to a specification that fits.

  • Standard and custom options — cylinders produced to standard specifications or to customer drawings and samples.
  • Application-based selection — bore, rod, stroke, mounting and sealing specifications matched to the actual working conditions.
  • Sealing performance focus — sealing configurations chosen to control oil leakage across repeated cycling, not just at first assembly.
  • Load flexibility — designs selected according to pressure, load, stroke and operating frequency.
  • One-stop powertrain supply — Raydafon also supplies Agricultural Gearbox, Planetary Gearbox and PTO Shaft, so multiple drivetrain and hydraulic components can come from one supplier.

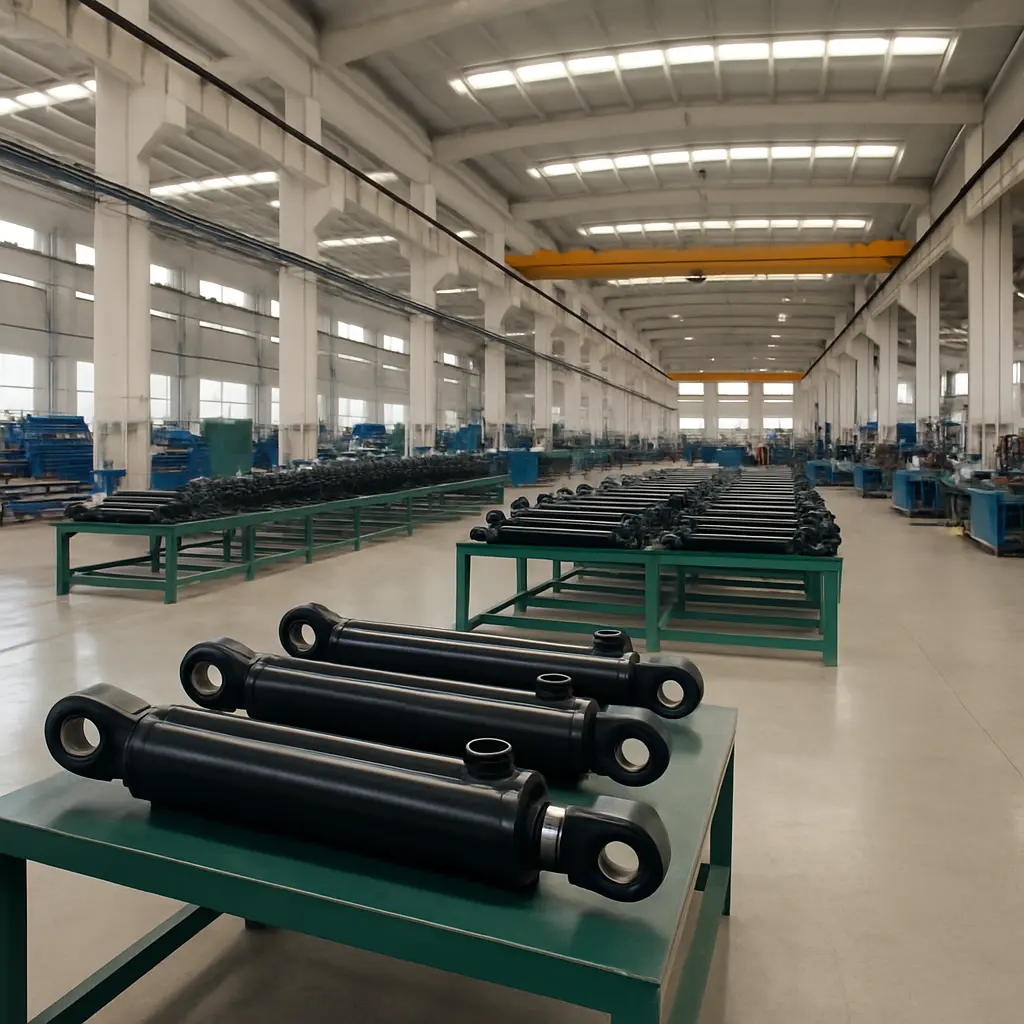

Raydafon factory

Request a Hydraulic Cylinder Specification

Replacing an existing cylinder or developing a new machine? Send the drawing, sample, part number or key dimensions. Raydafon will review the requirement and confirm the appropriate cylinder configuration, mounting dimensions and specification before production starts.

Send Inquiry Contact Sales
View as

EP-YD40-245-D5 Harvester Hydraulic Cylinder

EP-YD40-245-D5 Harvester Hydraulic Cylinder

Raydafon, a Chinese manufacturer and supplier, manufactures the EP-YD40-245-D5 harvester hydraulic cylinder in-house. It's essential for raising and lowering the conveyor system of corn and soybean harvesters, as well as for turning the silo over and over. With a 40mm bore and 245mm stroke, it can withstand 16MPa of pressure. The chrome-plated piston rod resists wear, while the seamless steel barrel is durable. The seals are oil-resistant and leak-proof. We maintain strict inspections from production to shipment, and the price is reasonable. Enjoy smooth harvester operation!
View More >> Send Inquiry >>
EP-YS50E-001 Harvester Steering Hydraulic Cylinder

EP-YS50E-001 Harvester Steering Hydraulic Cylinder

Raydafon, a Chinese manufacturer and supplier, produces the EP-YS50E-001 Harvester Hydraulic Cylinder Steering Hydraulic Cylinder, specifically for steering. It's essential for turning and maneuvering wheat and rice harvesters in the field. With a 50mm bore and 153mm stroke, it can withstand 20MPa of pressure. The chrome-plated piston rod resists wear, while the cylinder barrel is made of durable seamless steel. The seals are oil-resistant and leak-resistant. We carefully monitor production and are priced appropriately. Use this for smooth harvester steering!
View More >> Send Inquiry >>
EP-YD40-270 Harvester Hydraulic Cylinder Cutting Platform Cylinder

EP-YD40-270 Harvester Hydraulic Cylinder Cutting Platform Cylinder

Raydafon, a Chinese manufacturer and supplier, manufactures the EP-YD40-270 Harvester Hydraulic Cylinder Cutting Platform Cylinder in-house. This cylinder is used for the header. It has a 40mm bore, 270mm stroke, and can withstand 18MPa of pressure. The piston rod is chrome-plated for wear resistance, and the cylinder barrel is made of durable seamless steel. The seals are oil-resistant and leak-resistant. We carefully monitor our production and shipping process, and we offer a reasonable price. It's a reliable companion for your harvester header!
View More >> Send Inquiry >>
EP-HH-YG45*220 Harvester Hydraulic Cylinder

EP-HH-YG45*220 Harvester Hydraulic Cylinder

Raydafon, a Chinese manufacturer and supplier, produces the EP-HH-YG45*220 Harvester Hydraulic Cylinder in our own factory. This cylinder is commonly used in the lifting and lowering systems of harvesters. It has a 45mm bore, a 220mm stroke, and can withstand pressures up to 16MPa. The chrome-plated piston rod resists wear, and the cylinder barrel is made of durable seamless steel. The seals are oil-resistant and virtually leak-proof. We carefully monitor quality from production to delivery, and the price is reasonable. Adding this hydraulic component to your harvester will make it run smoothly!
View More >> Send Inquiry >>
EP-YD25-001A Harvester Hydraulic Cylinder Reed Wheel Cylinder

EP-YD25-001A Harvester Hydraulic Cylinder Reed Wheel Cylinder

Raydafon, a Chinese manufacturer and supplier, manufactures the EP-YD25-001A Harvester Hydraulic Cylinder Reed Wheel Cylinder in-house, specifically for use on reels. It has a 25mm bore, 235mm stroke, and can withstand 12MPa of pressure. The chrome-plated piston rod resists wear, while the cylinder barrel is made of durable seamless steel. The seals are oil-resistant and leak-resistant. We carefully monitor production and ensure a reasonable price. It's a reliable and reliable hydraulic cylinder for harvester reels!
View More >> Send Inquiry >>
EP-YS40F Harvester Hydraulic Cylinder Infinitely Variable Speed Cylinder

EP-YS40F Harvester Hydraulic Cylinder Infinitely Variable Speed Cylinder

Raydafon, a Chinese manufacturer and supplier, manufactures the EP-YS40F Harvester Hydraulic Cylinder Infinitely Variable Speed Cylinder with a continuously variable transmission (CVT) specifically for harvester transmission systems. With a 40mm bore and 65mm stroke, it can withstand 18MPa operating pressure. The piston rod is chrome-plated for wear protection, the cylinder barrel is made of high-strength seamless steel, and the seals are oil-resistant and age-resistant, ensuring leak-proof operation. With rigorous quality control from production to inspection, we offer a reasonable price. Adding a reliable CVT component to your harvester will ensure smooth operation!
View More >> Send Inquiry >>
As a reliable Hydraulic Cylinder manufacturer and supplier in China, our products have passed CE certification. If you want to buy quality products, please contact us.
