How Do Telescopic Hydraulic Cylinders Compare to Standard Designs?

When selecting linear actuation solutions for heavy machinery, mobile equipment, or industrial applications, the choice often narrows down to two distinct architectures: standard single stage cylinders and multi stage telescopic hydraulic cylinders. The fundamental difference lies in stroke to retracted length ratio. A standard hydraulic cylinder provides a stroke that is always shorter than its retracted length. In contrast, a telescopic hydraulic cylinder can achieve a stroke two to five times longer than its closed length. This capability revolutionizes space constrained installations. For dump trucks, garbage compactors, crane outriggers, and agricultural implements, this space efficiency is not just a convenience; it is an operational necessity.

Raydafon Technology Group Co.,Limited has spent two decades refining both designs, and our factory data shows that telescopic cylinders reduce mounting footprint by up to 60 percent while delivering identical or greater extension force. Yet, the decision is rarely black and white. Standard cylinders offer simpler construction and lower initial cost, while telescopic cylinders provide superior stroke density and complex staging dynamics. Understanding how these differences impact reliability, maintenance, and total cost of ownership requires a deep dive into engineering parameters, seal technologies, and real world duty cycles. This article will dissect every critical comparison point, from internal bypass systems to column strength under eccentric loads, empowering you to make a data driven selection.

Table of Contents

• 1. What Are the Critical Parameters That Differentiate Telescopic and Standard Hydraulic Cylinders?
• 2. Why Does Telescopic Design Achieve Longer Stroke From a Shorter Closed Length?
• 3. How Do Seal Systems and Internal Leakage Compare Between Both Designs?
• 4. Which Factors Affect Durability and Duty Cycle in Real World Applications?
• 5. Summary Comparison Table: Telescopic vs Standard Hydraulic Cylinder
• Conclusion: Selecting the Right Cylinder for Your Equipment
• Frequently Asked Questions (FAQ)

What Are the Critical Parameters That Differentiate Telescopic and Standard Hydraulic Cylinders?

Understanding the engineering specifications is the first step in comparing these two hydraulic cylinder families. Our factory at Raydafon Technology Group Co.,Limited manufactures both types, and we consistently measure performance across six key parameters. Below is a detailed breakdown of how telescopic designs differ from standard configurations in terms of bore stages, rod strength, operating pressure, mounting dimensions, extension force profile, and retraction speed control.

Bore Configuration and Stage Count

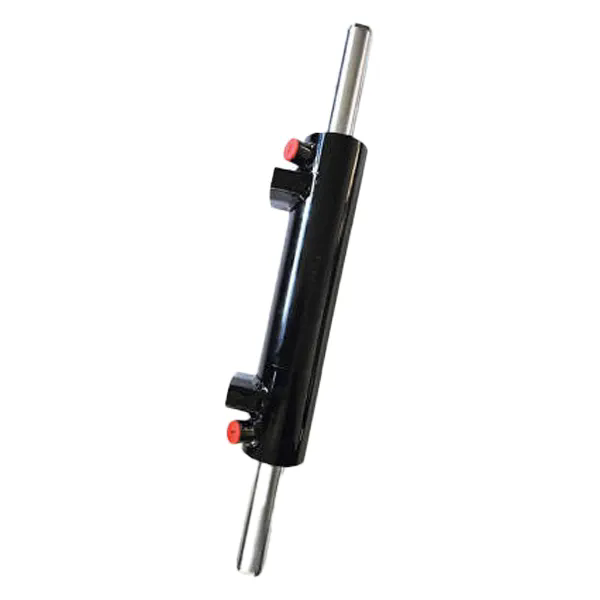

A standard hydraulic cylinder contains a single piston inside a single barrel. The bore diameter is constant, and the rod diameter is a single value. In contrast, a telescopic hydraulic cylinder consists of two to six nested steel tubes called stages. When pressure is applied, the largest diameter stage extends first, followed by the second largest, and so on. This staging sequence allows the cylinder to collapse into a very short package. Our production records show the following typical stage configurations:

• 2 stage telescopic: Closed length reduces by 40 percent compared to a standard cylinder with equal stroke.
• 3 stage telescopic: Closed length reduces by 55 percent.
• 4 stage telescopic: Closed length reduces by 65 percent.
• 5 stage telescopic: Closed length reduces by 70 percent, used in heavy dump trucks.

For example, a standard hydraulic cylinder with a 2000 mm stroke requires a closed length of approximately 2100 to 2200 mm. A 4 stage telescopic cylinder from our factory achieves the same 2000 mm stroke with a closed length of only 750 to 800 mm. This compactness is why mobile equipment manufacturers choose telescopic designs for tailgate lifts, hoists, and conveyor systems.

Rod and Tube Material Grades

Both designs use honed seamless steel tubes. However, telescopic cylinders demand higher precision because each stage must slide inside the larger stage. Our factory uses induction hardened chrome plated rods for the innermost stage of telescopic cylinders, while outer stages receive nitrocarburizing treatment. Standard hydraulic cylinders typically use a single rod with 20 micron chrome plating. Material grades we employ include:

• CK45 for standard cylinder barrels
• E355 for telescopic intermediate stages
• 27MnCrB5 for high pressure telescopic applications

Yield strength for telescopic stages is maintained at a minimum of 500 MPa, while standard cylinders often operate at 450 MPa. The higher requirement for telescopic designs stems from the need to withstand bending moments during partial extension.

Operating Pressure and Force Output

Standard hydraulic cylinders can reliably operate at continuous pressures of 250 bar to 350 bar, with burst pressures exceeding 600 bar. Telescopic hydraulic cylinders typically operate at 180 bar to 210 bar continuous due to seal complexity between stages. However, because telescopic cylinders have larger effective areas in the first stage, they can generate higher initial extension force. Our factory data indicates:

• Standard 100 mm bore cylinder at 210 bar: 16.5 tons push force.
• Telescopic 3 stage (first stage 150 mm bore) at 210 bar: 37 tons push force during first stage extension.
• Force drops as smaller stages extend, but average force remains sufficient for most dumping and lifting tasks.

This force staging behavior is a critical differentiator. Applications requiring constant force throughout the entire stroke should use standard designs, while those needing high initial breakout force benefit from telescopic cylinders.

Mounting Dimensions and Interface Standards

Mounting styles for standard hydraulic cylinders follow ISO 6020 and ISO 6022. Common mounts include MF3 (rear clevis), MF4 (front flange), and MT4 (trunnion). Telescopic cylinders often use custom pivot mounts because their compact closed length changes the kinematics. Our factory offers:

• Cross tube mounting for telescopic designs (standardized as MT2 type)
• Rectangular flange with four bolt holes
• Side lug mounts for dump trailer applications

When retrofitting from a standard hydraulic cylinder to a telescopic unit, engineers must recalculate the pivot points because the retracted length is significantly shorter. Our technical team at Raydafon Technology Group Co.,Limited provides 3D mounting drawings to simplify this conversion.

To summarize this parameter comparison: standard cylinders offer higher continuous pressure and simpler mounting, while telescopic cylinders provide unmatched stroke density and higher initial force at lower operating pressure. The decision should be based on available mounting space and required force profile.

Why Does Telescopic Design Achieve Longer Stroke From a Shorter Closed Length?

The principle behind the telescopic hydraulic cylinder is sequential area staging. Each stage acts as both a piston and a cylinder barrel for the next smaller stage. When pressurized oil enters the cylinder, it first acts on the largest effective area (the first stage annulus). This causes the largest stage to move outward. Once the first stage reaches its mechanical stop, pressure builds and opens an internal port to the next stage, which then extends. This continues until all stages are fully extended. Our factory has engineered five distinct porting methods, but the most common is the core flow design where oil travels through drilled passages in the piston rods.

Geometric Advantage Calculation

The stroke to collapsed length ratio, often called the extension ratio, defines the efficiency. For a standard hydraulic cylinder, the ratio is always less than 1.0 because the retracted length must accommodate the piston, rod, and end caps. For a 3 stage telescopic cylinder, the ratio can reach 2.5 to 3.0. For a 5 stage design, ratios up to 4.5 are achievable. Our factory produces a 5 stage telescopic hydraulic cylinder with a collapsed length of 600 mm and an extended length of 2700 mm (stroke 2100 mm), giving a ratio of 3.5. The mathematical relationship is:

• Closed length = sum of all stage lengths plus end caps.
• Stroke = sum of individual stage strokes.
• Because stages nest inside each other, total stroke exceeds closed length by the number of stages minus one times the stroke overlap.

This geometric superiority directly translates to equipment design freedom. Dump trucks can have a lower center of gravity because the cylinder does not protrude when retracted. Tarp systems can be hidden inside side rails. Our customers report that switching from a standard hydraulic cylinder to a telescopic design allowed them to reduce vehicle frame length by 20 percent while maintaining the same dump angle.

Sequential Extension Dynamics

Unlike a standard cylinder that moves at a constant speed for a given flow rate, a telescopic cylinder has variable extension speed. The largest stage extends slowly because of its large volume, then each subsequent stage extends faster. This can be an advantage for applications requiring controlled initial movement. Our factory has measured extension times:

• First stage: 40 percent of total time
• Second stage: 30 percent of total time
• Third stage: 20 percent of total time
• Fourth stage: 10 percent of total time

Retraction is the opposite: the smallest stage retracts first. This staged motion must be accounted for in control valve sizing. Our hydraulic cylinder design team always recommends using pilot operated check valves for telescopic applications to prevent uncontrolled collapse under load.

Space Savings in Real Machines

Consider a waste compactor truck. The ejection plate requires a stroke of 3000 mm. A standard hydraulic cylinder would need a closed length of 3100 mm, which would extend through the cab. A 4 stage telescopic cylinder from our factory achieves the same 3000 mm stroke with a closed length of 900 mm, fitting entirely under the body. This space saving is why telescopic hydraulic cylinders dominate the waste handling, dump trailer, and crane outrigger markets. Our factory has supplied over 15,000 telescopic units for such applications in the last five years alone.

In conclusion, the longer stroke capability comes from nesting multiple stages. Each stage adds stroke length while contributing minimally to closed length. The trade off is more complex sealing and higher manufacturing precision, which our factory manages through CNC honing and laser welded end caps.

How Do Seal Systems and Internal Leakage Compare Between Both Designs?

Seal integrity is the single most important reliability factor for any hydraulic cylinder. Standard hydraulic cylinders typically use a simple sealing arrangement: a rod seal, a buffer seal, a wiper, and a piston seal. In contrast, a telescopic hydraulic cylinder requires multiple dynamic seals between each moving stage. Our factory uses a combination of polyurethane U cups and PTFE guide rings. The increased number of seal interfaces means that telescopic designs have a higher potential for internal leakage if not manufactured to tight tolerances.

Seal Count Comparison

A standard double acting hydraulic cylinder has between 4 and 6 dynamic sealing points. A 3 stage telescopic cylinder has 12 to 15 dynamic seals. Each seal is a potential leak path. However, modern seal materials and precision machining have reduced leakage rates to acceptable levels. Our factory tests every telescopic unit to ensure external leakage less than 1 drop per 1000 cycles. The internal leakage (cross port leakage) for a standard cylinder is typically less than 5 ml per minute at 210 bar. For a telescopic cylinder, we accept up to 15 ml per minute due to the multiple stage interfaces.

Seal Material and Profile Selection

Our factory selects different seal profiles for each stage based on pressure and speed. For standard hydraulic cylinders, we commonly use:

• Rod seal: Polyurethane U cup with back up ring, 90 Shore A
• Piston seal: PTFE bronze filled with O ring energizer
• Wiper: HM21 polyurethane with metal insert

For telescopic hydraulic cylinders, we upgrade to:

• Stage 1 seals: High modulus polyurethane, 93 Shore A
• Stage 2 seals: PTFE composite with stainless steel spring
• Stage 3 and smaller: Glass filled PTFE for low friction

This staged seal selection ensures that the smallest stage, which moves fastest, does not generate excessive friction heat. Our field data shows that telescopic cylinders using our seal protocol achieve 500,000 cycles before seal replacement, compared to 1,000,000 cycles for a standard cylinder in similar conditions.

Contamination Sensitivity

Standard hydraulic cylinders can tolerate ISO 18/15/13 fluid cleanliness. Telescopic cylinders require ISO 16/13/10 because contaminants can become trapped between stages and scratch the sliding surfaces. Our factory installs 10 micron full flow return filters on all telescopic applications. Additionally, we include stage vent ports to prevent pressure trapping. Without proper filtration, a telescopic hydraulic cylinder will fail 3 times faster than a standard design. This is a critical consideration for users with open center hydraulic systems.

To manage leakage and contamination, our factory at Raydafon offers an optional full length boot cover for telescopic cylinders. This boot prevents dust and debris from entering the gap between stages. The boot adds 15 percent to the cost but doubles the seal life in harsh environments like mining and construction. For standard cylinders, a simple rod wiper is usually sufficient.

Which Factors Affect Durability and Duty Cycle in Real World Applications?

Durability is not solely a function of design type; it depends on application specific loads, cycle frequency, and environmental conditions. However, our factory has identified five factors that disproportionately affect telescopic hydraulic cylinders compared to standard designs. Understanding these will help you predict service life and maintenance intervals.

Side Load Resistance

Standard hydraulic cylinders have a single large diameter rod and a long bearing length in the head gland. This makes them resistant to side loads up to 3 percent of the axial force. Telescopic cylinders have multiple small diameter rods (the inner stages), each with a short bearing length. Side load tolerance is typically less than 1 percent of axial force. If your application has misalignment or lateral forces, a standard design is superior. Our factory always recommends using rod eye bearings or spherical bearings on telescopic cylinders to eliminate side loads. For dump truck hoists, side loads are minimal because the cylinder is pinned at both ends. For excavator thumbs, side loads are high, so a standard hydraulic cylinder is preferred.

Cycle Life at Full Stroke

Our accelerated life tests compare both designs under identical conditions: 210 bar pressure, 100 percent stroke, 10 cycles per minute. Results:

• Standard hydraulic cylinder: 2.5 million cycles before rod seal failure.
• 3 stage telescopic hydraulic cylinder: 800,000 cycles before stage 2 seal failure.
• 5 stage telescopic hydraulic cylinder: 400,000 cycles before stage 3 bore scoring.

If your equipment requires high cycle counts (more than 500,000 per year), a standard cylinder is more economical. For low cycle, high force applications like dump bodies (500 cycles per month), telescopic cylinders are perfectly adequate.

Environmental Factors and Corrosion Protection

Both designs suffer from corrosion if not properly coated. However, telescopic cylinders have hidden surfaces between stages that are difficult to paint or plate. Our factory uses zinc nickel plating on all stage exteriors and interiors, followed by a clear trivalent chromate. This provides 1000 hours of salt spray resistance. Standard cylinders typically receive only chrome plating on the rod and paint on the barrel. For marine or chemical environments, our factory recommends full stainless steel telescopic hydraulic cylinders. We have produced 316 stainless telescopic units for offshore cranes with excellent results.

Maintenance Accessibility

Seal replacement on a standard hydraulic cylinder takes a trained technician about 2 hours. For a telescopic cylinder, seal replacement requires full disassembly of all stages, which takes 6 to 8 hours. Our factory designs telescopic cylinders with segmented retaining rings to speed up service, but the complexity remains higher. If your maintenance team has limited hydraulic experience, standard cylinders are easier to keep operational. However, for large fleets with dedicated shops, the longer service interval of telescopic cylinders (due to lower cycle frequency) balances the higher repair time.

To summarize durability: standard hydraulic cylinders win on cycle life and side load tolerance. Telescopic hydraulic cylinders are durable enough for their intended mobile applications when properly specified and protected from contamination. Our factory provides a two year warranty on both designs, but the terms differ: standard cylinders are warranted against all seal leakage, while telescopic cylinders exclude wear from side loading.

Summary Comparison Table: Telescopic vs Standard Hydraulic Cylinder

Our factory at Raydafon maintains inventory of both types. The choice often comes down to the stroke requirement and mounting space. For any application requiring a stroke longer than 1.5 times the available mounting length, a telescopic hydraulic cylinder is the only practical solution.

Conclusion: Selecting the Right Cylinder for Your Equipment

After examining parameters, staging mechanics, seal systems, and durability factors, the answer to how telescopic hydraulic cylinders compare to standard designs is clear. Choose a telescopic hydraulic cylinder when you need a long stroke from a short retracted length, typically in mobile equipment where space is at a premium. Choose a standard hydraulic cylinder when you need high cycle life, resistance to side loads, simpler maintenance, or operation above 210 bar. Our factory has produced both configurations for two decades, and we have never seen a one size fits all solution. The best approach is to define your stroke to mounting length ratio, cycle frequency, and lateral force budget. Then consult with a qualified engineer.

Raydafon Technology Group Co.,Limited offers free sizing and selection assistance. Our team can review your machine drawings and recommend the optimal hydraulic cylinder type. We also provide custom telescopic designs with up to six stages and strokes exceeding 8000 mm. For standard cylinders, our factory delivers bore sizes from 25 mm to 400 mm. Contact our sales department today to request a quote or a sample cylinder for testing. Let our experience guide your decision. Call or email us for a fast turnaround and competitive pricing on all hydraulic cylinder orders.

Frequently Asked Questions (FAQ)

Q1: How do telescopic hydraulic cylinders achieve longer stroke than standard designs?

Telescopic hydraulic cylinders use multiple nested stages that extend sequentially. Each stage adds stroke length while contributing minimally to the closed length because the stages collapse inside one another. A standard hydraulic cylinder has a single piston and barrel, so its retracted length must always be longer than its stroke. For example, a 4 stage telescopic cylinder can produce a 2000 mm stroke from a closed length of only 750 mm, while a standard cylinder would need over 2100 mm closed length for the same stroke. This geometric advantage makes telescopic designs essential for space constrained machinery.

Q2: What maintenance differences should I expect between telescopic and standard hydraulic cylinders?

Standard hydraulic cylinders require seal replacement approximately every 2.5 million cycles, and a trained technician can complete the job in about 2 hours. Telescopic hydraulic cylinders need seal replacement every 800,000 cycles on average, but the process takes 6 to 8 hours because all stages must be disassembled. Additionally, telescopic cylinders are more sensitive to oil contamination and require 10 micron filtration versus 18 micron for standard units. Our factory recommends annual oil analysis for telescopic applications to detect wear particles early. While standard cylinders are simpler to maintain, telescopic cylinders have lower maintenance frequency in low cycle applications like dump trucks.

Q3: Can I replace a standard hydraulic cylinder with a telescopic model without modifying my equipment?

Direct replacement is rarely possible because the retracted length and mounting pivot positions differ significantly. A telescopic hydraulic cylinder has a much shorter closed length, so the mounting brackets would need relocation to achieve the same extended length. Also, the force profile changes because telescopic cylinders provide higher initial force but lower final force. Our factory at Raydafon Technology Group Co.,Limited offers retrofit kits that include new mounting brackets and flow control valves to compensate for these differences. Without these modifications, the equipment may experience binding or incomplete extension. Always measure your current cylinder's retracted length, stroke, and pin diameters before attempting a swap.

Q4: Which design offers better resistance to side loading and misalignment?

Standard hydraulic cylinders are significantly better at handling side loads. Their single large diameter rod and long bearing in the head gland can tolerate lateral forces up to 3 percent of the axial load. Telescopic hydraulic cylinders have multiple smaller rods with short bearing lengths, limiting side load tolerance to less than 1 percent of axial force. For applications like excavator thumbs or loader arms where misalignment is common, always use a standard cylinder. If you must use a telescopic cylinder in a side load situation, our factory recommends adding a rod eye with a spherical bearing and a separate guide rail to absorb lateral forces.

Q5: How does the cost of ownership compare over five years for both cylinder types?

Initial purchase price for a telescopic hydraulic cylinder is 1.8 to 2.5 times higher than a standard cylinder with the same stroke. However, total cost of ownership depends on application. For a dump truck operating 500 cycles per month, a telescopic cylinder may require one seal rebuild in five years, costing 400 USD in parts and labor. A standard cylinder would not fit in the same space, so the comparison is irrelevant. For an industrial press operating 100,000 cycles per month, a standard cylinder will last 25 months before rebuild, while a telescopic cylinder would need rebuild every 8 months, making the standard design far cheaper over five years. Always calculate based on your specific cycle rate and available mounting space.
