This category page covers Raydafon's two Feed Mixer Planetary Gearbox series: the PG Series coaxial planetary gearbox and the PGA Series auger drive planetary gearbox. Both are manufactured at Raydafon's own factory in Ningbo, China with high-strength alloy steel gears, cast iron housings, and IP65 protection. Select the series below or send your mixer model, ratio, and daily throughput for a factory-direct quotation covering MOQ, lead time, and customization.
If you want to purchase an efficient and durable Feed Mixer Planetary Gearbox, Raydafon is a trustworthy Chinese local manufacturer and factory. We rely on the precision manufacturing industry chain to control each process standard to ensure that the product maintains a competitive price on the basis of high quality. With rich design experience and automated production capabilities, Raydafon provides stable and reliable planetary gearbox solutions for global feed processing equipment manufacturers.
Raydafon's Feed Mixer Planetary Gearbox is designed and developed for large-scale feed mixing equipment, suitable for horizontal twin-shaft mixers in farms, vertical spiral mixers in feed mills, and automatic batching systems and other core scenarios. Faced with high humidity, high dust, and high impact use environments, our planetary gearboxes always maintain stable torque output and high transmission efficiency, ensuring a fast and uniform feed mixing process, especially for large-scale mixing equipment with a daily processing capacity of tens of tons.
PG Series Feed Mixer Planetary Gearbox — coaxial planetary transmission for heavy duty feed mixing
The core advantages of the product are reflected in four aspects:
Three-stage planetary transmission structure with torque density up to 2.5 times higher than the conventional structure — suitable for heavy-load conditions. Standard production series PG and PGA ratio ranges are listed in the comparison table above; custom ratios are reviewed by our engineering team on request.
Optimized rib plate structure on the housing, with stronger impact and vibration resistance after finite element analysis and design.
Combined lubrication system — forced oil pump plus splash method — with mirror-polished tooth surface, raising energy transmission efficiency to 97%.
Tight sealing structure with IP65 dustproof level — operates without leakage in high dust and high temperature environments for long periods.
Whether you need a right-angle transmission solution for a vertical conical mixer or a coaxial arrangement for a horizontal paddle machine, Raydafon can provide a full range of technical services from selection guidance, structural matching, on-site installation to after-sales maintenance. Our engineers can quickly complete the solution selection based on the load requirements and working parameters provided by the customer, and provide complete information such as three-dimensional models, energy consumption analysis, and measured data to help customers improve mixing efficiency and reduce maintenance frequency.
Raydafon factory production and assembly line — Ningbo, China

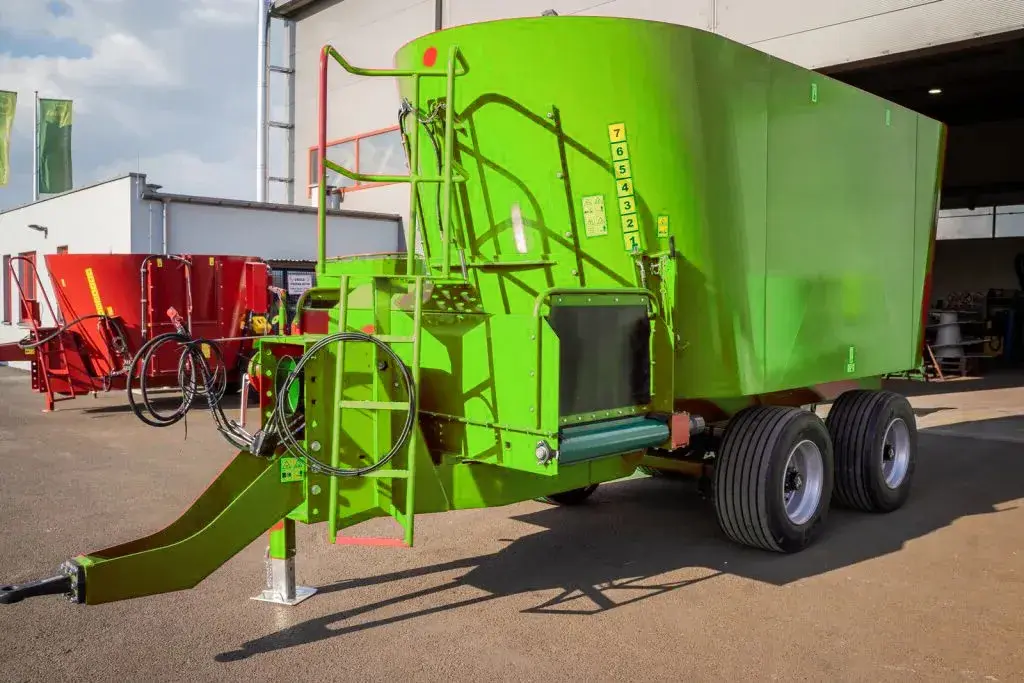

Where the Feed Mixer Planetary Gearbox Is Used
Application map
01
Horizontal Twin-Shaft Mixers
High-volume continuous mixing on farms and feed mills where stable torque and long service life drive the decision.
02
Vertical Screw Mixers
Vertical mixing columns on feed processing lines where coaxial planetary drive keeps the machine footprint compact.
03
Automatic Batching Systems
Batching and dosing lines where gearbox consistency directly affects weighing accuracy and repeatability.
04
Auger Conveying Systems
Auger-driven feed movement where the PGA Series delivers the higher torque needed for continuous conveying.
Why Choose Raydafon
About the manufacturer
Choosing Raydafon is not just about buying a mechanical product, but also about choosing an experienced partner who focuses on transmission solutions. We have been deeply involved in the transmission industry for many years, focusing on the manufacturing of key components for agricultural machinery and industrial equipment. Our products cover agricultural gearbox, planetary gearbox, PTO shaft, hydraulic cylinder and other fields, serving customers in many industries at home and abroad.
Raydafon has its own production plant, equipped with advanced CNC machining centers, automated assembly lines and complete testing equipment to ensure that every detail from raw materials to finished products is controllable and traceable. We insist on using high-strength alloy steel, ductile iron and other high-quality materials, matching precision heat treatment processes and surface strengthening technologies, so that each product can maintain excellent performance under high-load and high-frequency operating environments.
Our team not only provides standardized products, but also has strong customization capabilities. Whether customers need a specific speed ratio, installation interface, or matching special working conditions, we can complete the selection plan within 72 hours and support fast proofing and delivery. For agricultural users, Raydafon's agricultural gearbox and PTO shaft have been widely used in seed drills, fertilizer spreaders, harvesters and other equipment, with the characteristics of mud resistance, impact resistance and maintenance-free; while our planetary gearbox and hydraulic cylinder are widely used in feed mixing, conveying, automatic control and other process processes, helping customers improve production efficiency.
In terms of service, we provide full-process technical services such as selection guidance, installation support, and fault analysis to ensure that every customer can be worry-free and assured when using Raydafon products. Our after-sales team responds quickly, regular accessories are kept in stock all year round, and the maintenance response does not exceed 48 hours, truly achieving "there is a demand, there is a response".
Raydafon does not pursue exaggerated packaging, but insists on winning the market trust with product quality and actual application performance. If you are looking for a mechanical parts supplier that can provide stable quality, reasonable prices and timely response, Raydafon is a brand worthy of your long-term cooperation. Welcome to contact us to learn more real cases and application solutions.
Own Factory
Raydafon Technology Group Co., Limited — Ningbo, China
Ratio · mounting interface · output shaft · special conditions
Order Terms
MOQ · lead time · price confirmed at quotation
Request a Wholesale Quote for the Feed Mixer Planetary Gearbox
Send your mixer model, required ratio, daily throughput, and destination port. Raydafon confirms series recommendation, MOQ, lead time, and factory-direct price at quotation. Custom ratio, mounting interface, and output shaft are reviewed by our engineering team before production.
Category page control: Feed Mixer Planetary Gearbox · Reviewed by Raydafon Engineering Team · Last updated 2026-10-14 · Contact: +86-574-87167707 · +86-13083988828. Ratio, MOQ, lead time, price, and customization are confirmed at quotation.

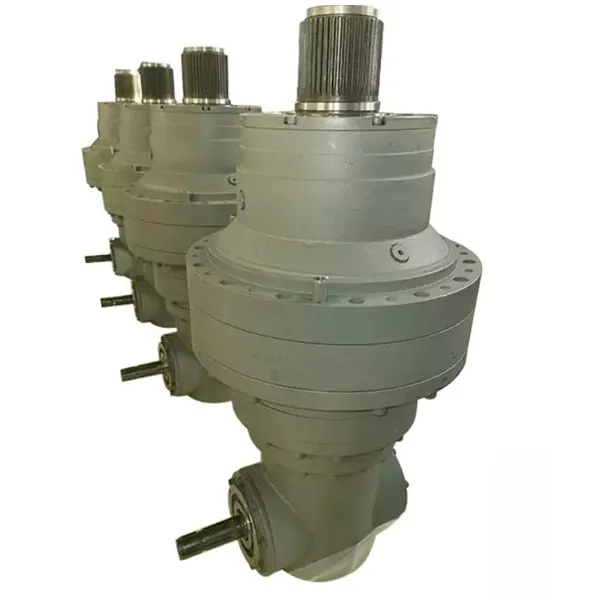

As a local manufacturer and supplier in China, Raydafon has carefully crafted the PG Series Feed Mixer Planetary Gearbox in its own factory. The speed ratio ranges from 3:1 to 15:1. The gears are made of high-strength alloy steel. After quenching, the tooth surface hardness reaches HRC55, which is wear-resistant and impact-resistant, and can withstand a torque of 1800N・m. The box is made of cast iron and is equipped with a double sealing structure. The dust and water resistance level reaches IP65, and it can work stably in the humid and dusty environment of the farm. The factory direct supply method provides you with affordable and reliable transmission products!

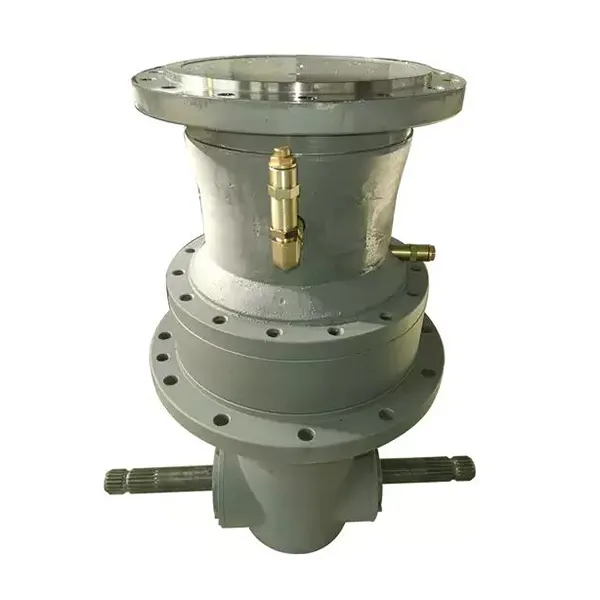

PGA series auger drive planetary gearboxes are built for TMR feed mixers and diet feeders driven from a 540 rpm tractor PTO. Continuous torque runs from 3,810 N·m (PGA-502) to 42,000 N·m (PGA-4203/4204), with ratios from 11.1:1 to 662.8:1 and standard 1"3/8 Z6 or 1"3/4 Z20 input splines. Gears and shafts are high-strength alloy steel, gas carburized to about HRC58 tooth-surface hardness; the one-piece cast-iron housing uses dual sealing to IP65 for dust, slurry and wash-down. Manufactured by Raydafon in its own ISO 9001 workshop in Ningbo, China, for OEM mixer builders and as a replacement unit for farms and dealers. Custom ratios, output flanges and mounting faces made to drawing. Send your mixer model or drawing for a confirmed selection and quotation within 24 hours.
As a reliable Feed Mixer Planetary Gearbox manufacturer and supplier in China, our products have passed CE certification. If you want to buy quality products, please contact us.
