Telescopic Hydraulic Cylinders

As a trusted brand for purchasing telescopic hydraulic cylinders in China, Raydafon has been focusing on the research and development and manufacturing of such hydraulic products. Relying on its own factory resource advantages in China, mature production experience and stable supply system, as a professional manufacturer and supplier, we can provide products with reasonable prices and reliable performance to meet the diverse needs of users in different industries.

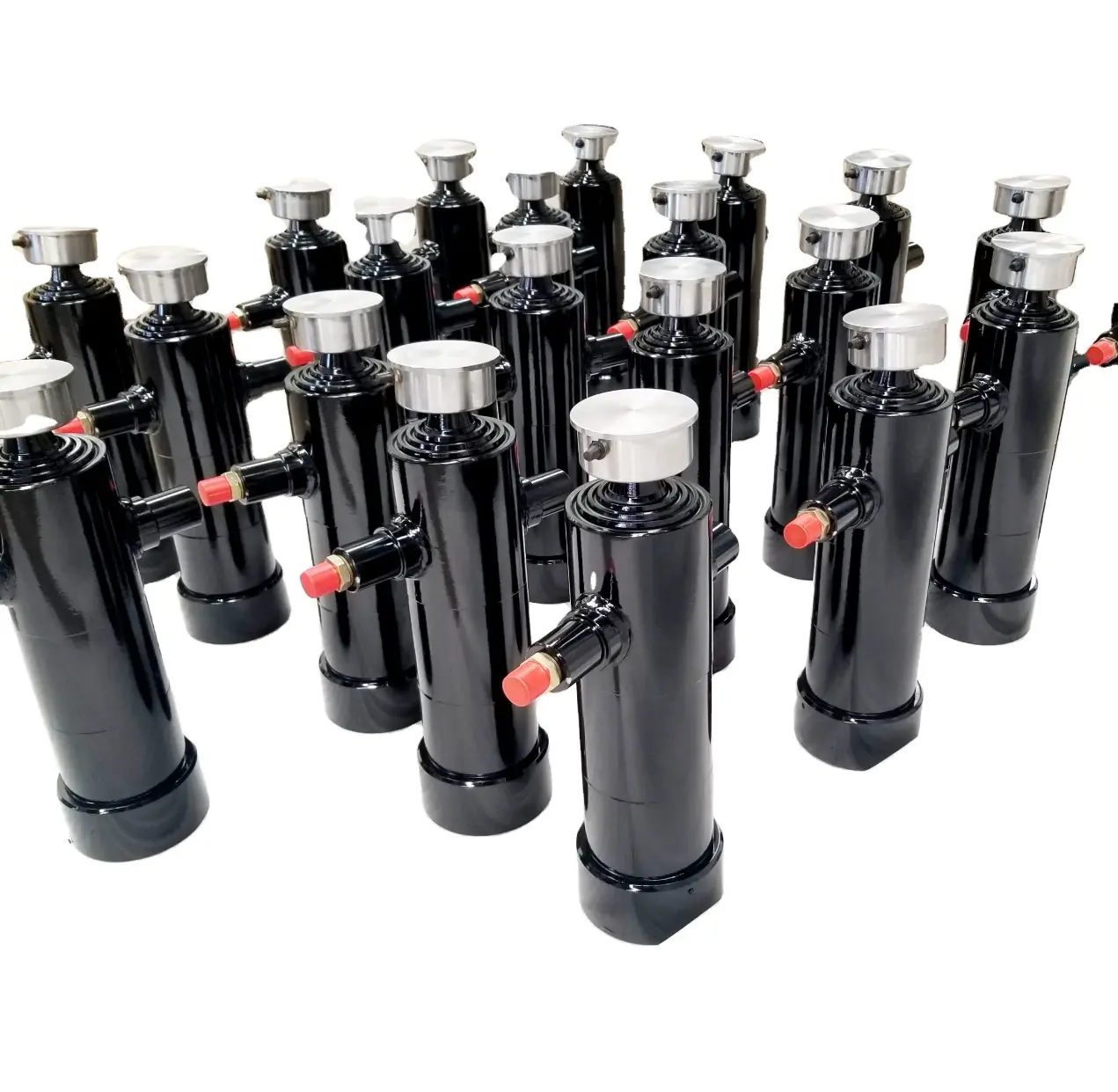

The telescopic hydraulic cylinders produced by Raydafon are widely used in dump trucks, sanitation equipment, lifting platforms, agricultural transport vehicles and other scenes. This type of cylinder has the significant advantages of compact structure, long stroke, and can achieve large displacement output in a limited space. It is particularly suitable for use in equipment that requires segmented lifting or pushing. Our products usually adopt a multi-stage cylinder structure, high-strength alloy steel, and are equipped with a precision sealing system to ensure that the cylinder can still work stably under heavy load and high frequency environment, and have good compression resistance, bending resistance and sealing performance.

At present, Raydafon's products have been exported to many regions in the Middle East and Europe, and are widely praised by equipment manufacturers and maintenance companies. With stable supply capacity, responsive pre-sales and after-sales services, and honest and transparent quotation strategies, we have established long-term cooperation with many complete machine manufacturers to provide them with stable hydraulic power solutions. Whether it is bulk purchase or single customization, we take the customer's usage scenario as the starting point to provide products with high cost performance, controllable delivery time and long service life. Please feel free to contact our engineering team for detailed specifications and quotations.

How Do Telescopic Hydraulic Cylinders Work?

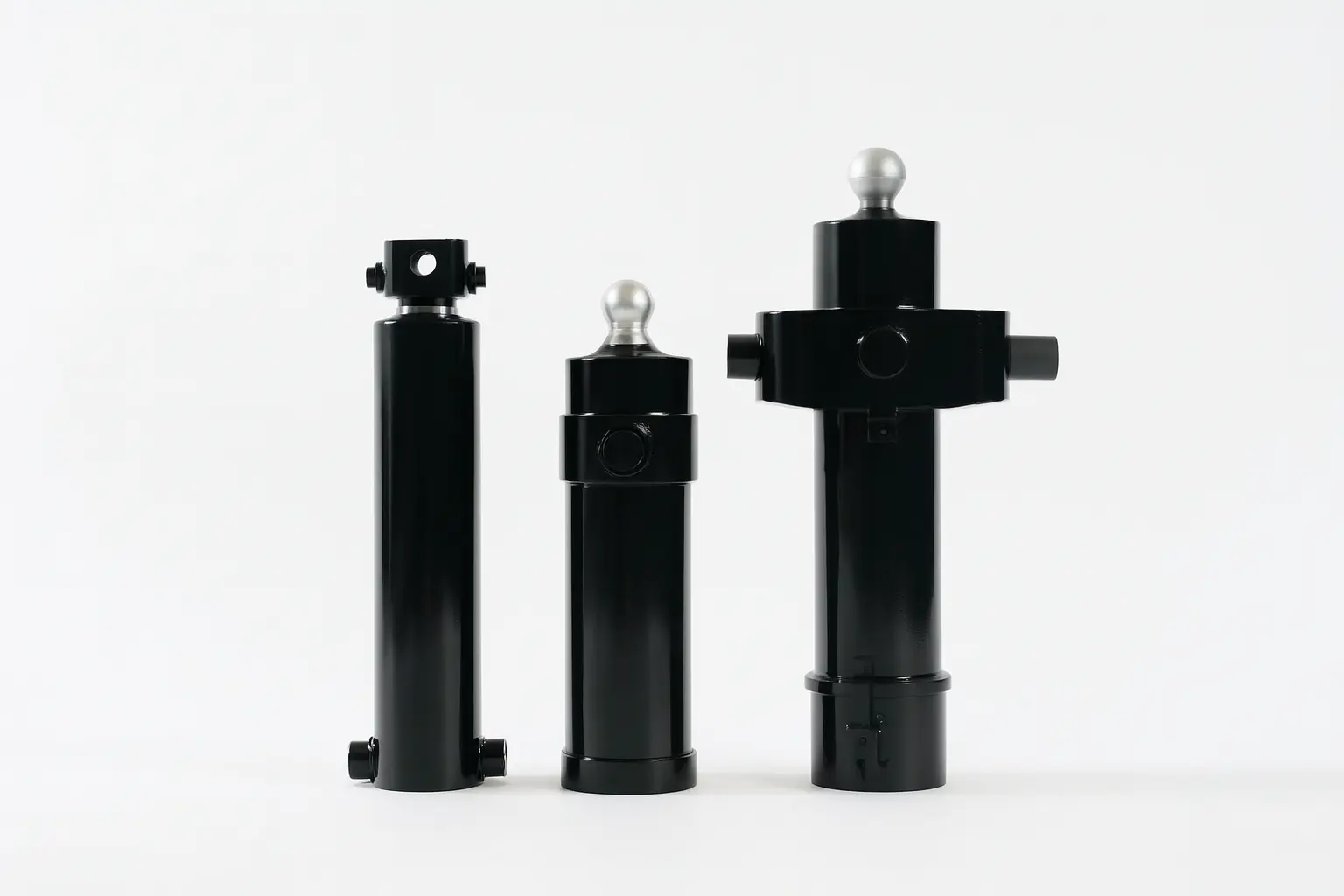

Telescopic Hydraulic Cylinders are hydraulic actuators that can achieve long-stroke output in a limited installation space. They are commonly found in dump trucks, sanitation vehicles, aerial work platforms and other equipment. It works through a multi-stage sleeve structure. When the hydraulic oil enters each stage of the cavity in turn, it pushes the piston rod to extend one section at a time to achieve multiple stroke expansion.

During operation, the hydraulic oil first enters the bottom of the cylinder, and the pressure pushes the inner tube with the smallest diameter (that is, the thinnest stage) to move first. When the first section is extended to the bottom, the oil enters the second stage cavity, and so on, until all stages are fully extended; when retracting, the order is reversed, starting from the outer cylinder with the largest diameter, and retracting step by step. The whole process relies on the cooperation of the internal throttle hole, guide sleeve and sealing structure to ensure smooth movement and control the synchronization of each stage.

The advantages of Telescopic Hydraulic Cylinders are compact structure, long stroke and small installation space, but the manufacturing precision requirements are high and the sealing design is complex. When selecting, special attention should be paid to the material strength of each cylinder, the pressure resistance of the seal, and the wear resistance of the guide components to ensure long-term operational reliability. For customers who pursue high efficiency and large stroke output, this type of hydraulic cylinder is a very practical and economical solution.

Application

Telescopic hydraulic cylinders are irreplaceable key components in various equipment with limited space but requiring long-stroke movements. They can save space in a compressed state through a multi-section sleeve structure, and extend sequentially during operation to meet the needs of rapid pushing and pulling or high-position lifting of equipment. This structure is particularly suitable for vehicles, construction machinery, and agricultural equipment.

In dump trucks, multi-stage hydraulic cylinders are often used to lift the carriage to achieve rapid dumping of heavy loads; in sanitation garbage trucks, hydraulic cylinders drive the rear cover opening and compression system to ensure efficient operation; in aerial work platforms such as aerial platforms or scissor trucks, they control the lifting arm and stably raise the operating platform; in addition, agricultural dump trucks, trailer hydraulic tailboards, and construction pile drivers also rely on their reliable multi-stage telescopic characteristics to complete working actions.

The telescopic hydraulic cylinders launched by Raydafon are made of high-strength alloy steel, with a surface anti-rust coating, and combined with imported seals to ensure that they can still maintain a smooth and leak-free working state under high frequency, high load, and harsh environments. Whether it is a complete machine factory or equipment maintenance and replacement, we can provide customized solutions on demand to ensure application matching and stable performance.

In addition to telescopic hydraulic cylinders, Raydafon also specializes in the production of tractor hydraulic cylinders, excavator hydraulic cylinders, and aerial work vehicle hydraulic cylinders to meet the hydraulic drive needs in different fields. Welcome to contact us for more product information.
