How Does a Hydraulic Lift Cylinder Handle Large-Tonnage Equipment?

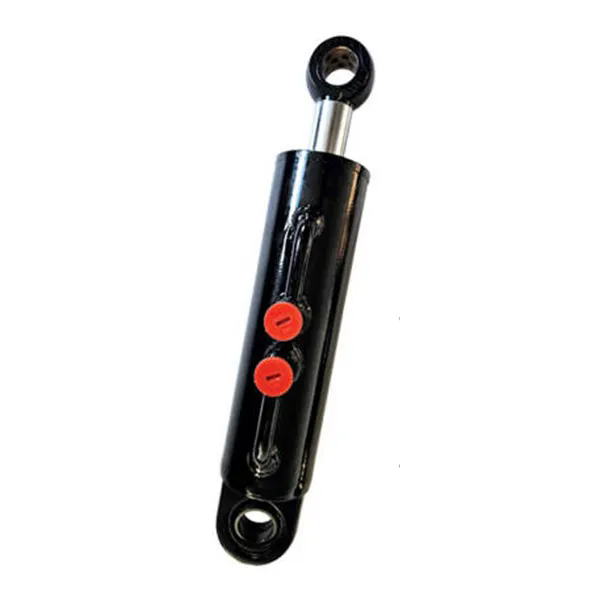

At a shipyard on the coast of China, a 500-ton hydraulic lift cylinder slowly raises a massive steel hull section into position. The cylinder is the size of a small tree trunk, its polished rod gliding smoothly under a load that would crush an ordinary machine. Inside, hydraulic oil at 350 bar transmits force through a piston, converting fluid pressure into the raw lifting power needed to move hundreds of tons. This is not a simple mechanism; it is a system engineered at every level—from the metallurgy of the cylinder barrel to the molecular structure of the seals—to handle loads that would destroy conventional equipment. A Hydraulic Lift Cylinder is a device that converts hydraulic pressure into linear force and motion. In large-tonnage applications, it is the component that makes the impossible possible.

The question of how a Hydraulic Lift Cylinder handles large-tonnage equipment is fundamentally a question of engineering. The answer lies in a combination of high-strength materials, precision manufacturing, advanced sealing technology, and intelligent safety systems. The cylinder must withstand pressures that would burst a standard pipe. Its rod must resist buckling under compressive loads that would bend a steel beam. Its seals must contain hydraulic oil at pressures that would cause a normal rubber O-ring to fail instantly. And its safety systems must prevent catastrophic failure if something goes wrong. This article will examine each of these engineering dimensions in detail, providing a comprehensive technical analysis of how Hydraulic Lift Cylinders are designed and manufactured to handle the most demanding lifting applications in the world.

Table of Contents

• 1. The Force Equation: How Hydraulic Pressure Becomes Lifting Power
• 2. The Material Question: What Makes a Cylinder Barrel Strong Enough?
• 3. The Buckling Challenge: Why the Rod Design Determines Everything
• 4. The Sealing System: Containing 350 Bar Without Leaks
• 5. The Safety Architecture: What Happens When Something Fails?
• 6. The Application Matrix: Matching Cylinder Specifications to Equipment Requirements
• 7. Frequently Asked Questions (FAQ)
• 8. Conclusion

1. The Force Equation: How Hydraulic Pressure Becomes Lifting Power

The fundamental principle behind a Hydraulic Lift Cylinder is Pascal's law, which states that pressure applied to a confined fluid is transmitted equally in all directions. In a hydraulic cylinder, the fluid pressure acts on the surface area of the piston, creating a force equal to the pressure multiplied by the area. The formula is elegantly simple: Force = Pressure × Area. This means that to generate a large force, you can either increase the pressure or increase the area of the piston. For large-tonnage equipment, both approaches are used. A typical heavy-duty Hydraulic Lift Cylinder may operate at pressures up to 350 bar (approximately 5,000 psi) and have a piston diameter of 500mm or more. The combination of high pressure and large area produces a force of hundreds of tons.

The practical implications of this equation are significant. A small increase in piston diameter results in a large increase in force, because the area increases with the square of the diameter. For example, doubling the piston diameter quadruples the force. However, increasing the diameter also increases the size, weight, and cost of the cylinder. Engineers must find the optimal balance between force, size, and cost for each application. The pressure is limited by the strength of the cylinder components and the seals. Higher pressures require thicker cylinder walls, stronger rod materials, and more robust seals. The table below illustrates the relationship between piston diameter, operating pressure, and lifting force.

At Raydafon Technology Group Co.,Limited, our factory manufactures Hydraulic Lift Cylinders for the most demanding large-tonnage applications. We have the capability to produce cylinders with piston diameters up to 1,000mm and operating pressures up to 500 bar. Our engineering team works closely with customers to determine the optimal combination of diameter and pressure for their specific lifting requirements. We also provide detailed force calculations and performance curves to ensure that the cylinder meets the application's needs.

2. The Material Question: What Makes a Cylinder Barrel Strong Enough?

The cylinder barrel is the pressure vessel of the Hydraulic Lift Cylinder. It must contain the hydraulic fluid at high pressure without deforming or bursting. The material of the barrel, its wall thickness, and its manufacturing process determine its strength. The most common material for high-pressure cylinders is seamless steel tube made from alloys such as ST52, E355, or 27SiMn. These materials offer a combination of high tensile strength, good weldability, and resistance to fatigue. For extreme applications, such as those found in offshore or mining environments, stainless steel or specialized alloys may be used to provide additional corrosion resistance.

The wall thickness of the barrel is calculated based on the maximum operating pressure, the diameter, and the material's yield strength. The formula for a thick-walled cylinder is more complex than the simple hoop stress formula used for thin-walled vessels. Engineers use the Lamé equations to calculate the stresses in the barrel wall. The barrel is typically manufactured by honing or skiving and roller burnishing to achieve a precise internal diameter and a smooth surface finish. The surface finish is critical because it affects the performance and life of the piston seals. A rough surface will cause the seals to wear quickly, leading to leaks and premature failure. The table below summarizes the key material properties and manufacturing tolerances for our Hydraulic Lift Cylinder barrels.

At Raydafon Technology Group Co.,Limited, our factory uses only high-quality seamless steel tube from certified suppliers. Each barrel is inspected for material composition, dimensional accuracy, and surface finish before it enters the production line. We use CNC honing machines to achieve the precise internal diameter and surface finish required for long seal life. After honing, the barrel undergoes a rigorous cleaning process to remove any metal particles or debris that could contaminate the hydraulic fluid. This attention to detail is what ensures that our Hydraulic Lift Cylinders can withstand the pressures of large-tonnage applications.

3. The Buckling Challenge: Why the Rod Design Determines Everything

The piston rod is the component that transmits the lifting force from the piston to the load. In a large-tonnage Hydraulic Lift Cylinder, the rod is subjected to enormous compressive loads. If the rod is not designed correctly, it will buckle—it will bend sideways and fail catastrophically. Buckling is a stability failure, not a strength failure. It occurs when the compressive load exceeds the critical buckling load of the rod, which depends on the rod's length, its diameter, its material, and the way it is supported at both ends. The critical buckling load is calculated using Euler's formula, which shows that the buckling load is proportional to the fourth power of the diameter and inversely proportional to the square of the length. This means that doubling the rod diameter increases the buckling load by a factor of 16, while doubling the length reduces it by a factor of 4.

To prevent buckling, engineers must carefully design the rod for each application. The rod diameter must be large enough to provide an adequate safety factor against buckling. The rod material must have a high modulus of elasticity, which is a measure of its stiffness. The rod must be guided and supported to reduce the effective buckling length. In some cases, a telescopic cylinder design is used to reduce the extended length of each stage, thereby increasing the buckling resistance. The rod surface must also be hardened and chrome-plated to resist wear and corrosion. The table below provides an example of the buckling analysis for a Hydraulic Lift Cylinder with different rod diameters and stroke lengths.

At our factory, we use advanced computer-aided engineering (CAE) software to perform buckling analysis on every Hydraulic Lift Cylinder we design. This allows us to optimize the rod diameter and the support conditions to ensure a safe and reliable design. We also consider the dynamic effects of the load, such as shock loads and vibration, which can reduce the effective buckling load. Our goal is to provide a cylinder that not only meets the load requirements but also has an adequate safety margin for the intended application.

4. The Sealing System: Containing 350 Bar Without Leaks

The sealing system is the most critical component of a Hydraulic Lift Cylinder for preventing leaks. A leak in a large-tonnage cylinder is not just a nuisance; it is a safety hazard and an environmental concern. The seals must contain hydraulic oil at pressures up to 350 bar or more, while withstanding the movement of the piston and rod. They must also resist extrusion, which occurs when the seal material is forced into the clearance gap between the piston and the cylinder wall. The sealing system typically consists of multiple components: the piston seal, the rod seal, the wiper seal, and the guide rings or bearing strips. Each seal has a specific function and is made from a specific material.

The piston seal is the primary seal that prevents hydraulic fluid from leaking across the piston. It is typically a double-acting seal that can withstand pressure from both directions. The rod seal prevents fluid from leaking out of the cylinder along the rod. It is a single-acting seal that is designed to handle the pressure on the rod side of the piston. The wiper seal, also known as a scraper, removes dirt, dust, and other contaminants from the rod as it retracts, preventing them from entering the cylinder. The guide rings or bearing strips support the piston and rod, maintaining proper alignment and preventing metal-to-metal contact. The table below summarizes the sealing system components and their materials.

At Raydafon Technology Group Co.,Limited, we use only high-quality seals from reputable manufacturers. Our factory has extensive experience in selecting the right seal materials for each application, considering factors such as the hydraulic fluid type, the operating temperature, the pressure, and the speed of movement. We also offer custom seal designs for special applications. Our Hydraulic Lift Cylinders are tested for leakage at the maximum operating pressure before they are shipped, ensuring that they meet the highest standards of quality and reliability.

5. The Safety Architecture: What Happens When Something Fails?

Even the most well-designed Hydraulic Lift Cylinder can fail if it is subjected to conditions beyond its design limits or if maintenance is neglected. In large-tonnage applications, a failure can be catastrophic, causing injury, death, and massive property damage. Therefore, a Hydraulic Lift Cylinder for large-tonnage equipment must incorporate a range of safety features to prevent accidents. These features include load-holding valves, pilot-operated check valves, pressure relief valves, and mechanical locking devices. Each of these features provides a layer of protection against different failure modes.

A load-holding valve is a critical safety component that prevents the load from falling if a hydraulic hose or fitting fails. It is a pilot-operated check valve that allows flow into the cylinder but blocks flow out unless a pilot pressure is applied. This means that if the hydraulic line ruptures, the load will remain in position, held by the valve. A pressure relief valve protects the cylinder from overpressure by opening and releasing fluid if the pressure exceeds a set limit. A mechanical locking device, such as a safety nut or a mechanical lock, provides a positive mechanical stop that prevents the load from falling even if the hydraulic system fails completely. The table below summarizes the safety features and their functions.

At our factory, we design our Hydraulic Lift Cylinders with safety as the first priority. We integrate load-holding valves and pressure relief valves as standard features on all large-tonnage cylinders. We also offer optional mechanical locking devices for applications where the highest level of safety is required. Our engineering team can help you select the right safety features for your specific application and ensure that your lifting system meets all relevant safety standards and regulations.

6. The Application Matrix: Matching Cylinder Specifications to Equipment Requirements

Selecting the right Hydraulic Lift Cylinder for a large-tonnage application requires a systematic approach that considers the load, the stroke, the speed, the environment, and the safety requirements. The following matrix provides a guide to the key specifications for different types of large-tonnage equipment. This matrix is intended as a starting point for the selection process, and it should be used in conjunction with a detailed engineering analysis.

At Raydafon Technology Group Co.,Limited, we have extensive experience in supplying Hydraulic Lift Cylinders for all these applications. Our factory has the capability to manufacture custom cylinders to meet the specific requirements of each project. We work closely with our customers to understand their application and to provide the optimal cylinder design, materials, and safety features. Our technical team is available to assist with the selection process and to provide detailed engineering support.

7. Frequently Asked Questions (FAQ)

Question 1: What is the maximum pressure a Hydraulic Lift Cylinder can handle?

Answer: The maximum pressure depends on the design, materials, and seals used. Standard heavy-duty cylinders typically operate up to 350 bar. High-pressure cylinders for specialized applications can operate up to 500 bar or more. At Raydafon Technology Group Co.,Limited, our factory manufactures cylinders for pressures up to 500 bar. The pressure rating is determined by the wall thickness of the barrel, the rod diameter, and the seal design. It is important to never exceed the rated pressure of the cylinder, as this can lead to catastrophic failure.

Question 2: How do I calculate the lifting force required for my application?

Answer: The lifting force is calculated by multiplying the operating pressure by the piston area. The piston area is calculated as π × (diameter/2)². For example, a cylinder with a 200mm piston diameter has an area of 314 cm². At an operating pressure of 250 bar, the lifting force is 314 × 250 = 78,500 kg, or approximately 78.5 tons. It is important to include a safety factor in your calculation to account for dynamic loads, friction, and other factors. Our engineering team can assist you with the calculation for your specific application.

Question 3: What is the difference between a single-acting and a double-acting Hydraulic Lift Cylinder?

Answer: A single-acting cylinder uses hydraulic pressure to extend the rod and relies on gravity or a spring to retract it. A double-acting cylinder uses hydraulic pressure for both extension and retraction. Double-acting cylinders are more common in large-tonnage applications because they provide positive control in both directions. The choice depends on the application requirements. At our factory, we manufacture both types of cylinders and can advise on the best option for your needs.

Question 4: How often should a Hydraulic Lift Cylinder be inspected?

Answer: The inspection frequency depends on the application and the operating conditions. For critical applications, we recommend a visual inspection daily, a detailed inspection monthly, and a full overhaul every 2-3 years or after a specified number of operating hours. The inspection should include checking for leaks, verifying the rod surface condition, checking the hydraulic fluid for contamination, and testing the safety features. Regular inspection and maintenance are essential for ensuring the safe and reliable operation of the cylinder.

Question 5: Can a Hydraulic Lift Cylinder be repaired, or does it need to be replaced?

Answer: In many cases, a Hydraulic Lift Cylinder can be repaired. The most common repairs are replacing the seals and re-chroming or replacing the rod. If the barrel is damaged or the rod is bent, the repair may be more extensive. At Raydafon Technology Group Co.,Limited, we offer a full repair and reconditioning service for our cylinders. Our factory has the equipment and expertise to restore a cylinder to like-new condition at a fraction of the cost of a new cylinder. We can also provide a replacement cylinder if the repair is not feasible.

8. Conclusion

Handling large-tonnage equipment requires a Hydraulic Lift Cylinder that is engineered for extreme forces, precision, and reliability. From the force equation that governs its lifting capacity to the buckling analysis that ensures its stability, from the sealing system that contains high-pressure fluid to the safety features that protect against failure, every aspect of the cylinder is designed to meet the demands of the application. At Raydafon Technology Group Co.,Limited, our factory has the expertise, the equipment, and the experience to manufacture Hydraulic Lift Cylinders that meet the most demanding requirements. We use high-quality materials, precision manufacturing processes, and rigorous testing to ensure that every cylinder we produce delivers reliable performance and long service life.

Whether you are designing a new large-tonnage lifting system or maintaining an existing one, we invite you to contact our technical team to discuss your requirements. We can provide detailed product specifications, engineering calculations, and application support. Our commitment to quality and customer satisfaction has made us a trusted partner for industrial hydraulics around the world.

Contact Raydafon Technology Group Co.,Limited today to discuss your Hydraulic Lift Cylinder requirements and discover how our cylinders can handle your large-tonnage applications.
