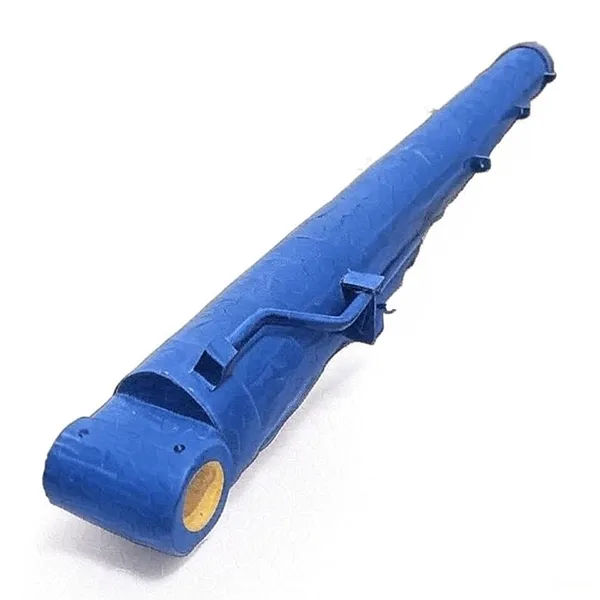

The crane luffing hydraulic cylinder controls the boom angle on mobile cranes. Raydafon builds it with a double-acting multi-stage telescopic design that extends over long distance and retracts compactly. The body is 7-pass die-forged from aviation-grade high-strength alloy steel and double-aged to stabilize tensile strength above 1250 MPa. Triple progressive sealing and a magnetostrictive servo module handle the salt-spray, dust and precision demands of port and wind-power duty cycles.
The reference model is a real production configuration used for heavy-lift mobile crane luffing circuits. Custom bore and stroke are available on the same drawing process.
Crane circuits with different thrust or mounting patterns can be produced against your drawing. Send the crane brand and model, required thrust, and a mounting drawing. For the wider mobile crane cylinder range, see the Mobile Crane Hydraulic Cylinders category.
The cylinder body is forged from aviation-grade material. Raydafon uses a custom high-strength alloy steel that goes through seven die-forging passes and then double-aging heat treatment. The double-aging stabilizes the material structure so tensile strength holds above 1250 MPa. On a 3000 kN thrust cylinder running continuous lift cycles, that grain structure is what keeps fatigue life stable under 32 MPa pressure.
Raydafon's engineering team developed an integrated electro-hydraulic servo module that replaces the traditional separate valve control setup. The valve group uses aviation-grade servo valve cores and a magnetostrictive displacement sensor with ±0.03 mm accuracy. That combination supports ultra-low-speed stable operation at 0.08 mm/s, so the operator can position the boom without stick-slip or overshoot during fine-loading operations.
Port machinery sees salt spray erosion. Metallurgical equipment sees high-temperature dust. Raydafon built a triple progressive sealing protection structure for both. The main seal is a perfluoroether rubber composite ring imported from Germany with a double-lip design for two-way pressure compensation. The middle layer uses a stepped dust lip that intercepts solid particles larger than 5 μm. Anti-pollution capability is 40% higher than a traditional single-lip seal. Combined cycle is rated 5000 hours maintenance-free.
Raydafon's energy-saving design comes from analyzing how construction machinery actually runs. The differential amplitude circuit reduces hydraulic oil circulation volume by 35% under no-load conditions. Combined with a high-efficiency permanent magnet synchronous motor pump group, the system's comprehensive energy consumption drops by 28% compared with the traditional solution. On a crane running 8-hour shifts, that translates into a measurable reduction in fuel or battery consumption.
Raydafon has been manufacturing hydraulic cylinders for two decades. The engineering team develops the cylinder, servo module and seal system in-house, so specification changes are handled at the source, not through outside suppliers.
Body forging, heat treatment, honing, chrome plating, seal assembly and pressure test all happen in the Raydafon plant. That keeps traceability intact and reduces the batch variance you get from multiple suppliers.
Sold under a direct-sales model. Comparable performance at roughly 60% of the cost of European and American brands at the same specification level. No trading margin added between the factory and the buyer.
Cylinder bore diameters from Φ50 mm to Φ500 mm can be custom built. Stroke, installation distance, port type and mounting pattern are produced against your drawing, so non-standard crane models can be matched exactly.
The triple sealing system and the servo module have been built for port machinery salt spray and wind-power heavy lift conditions. The design targets real work sites, not lab conditions.
Send a crane brand and model, or a drawing number. Raydafon reverse-engineers, samples and quotes a custom batch on the same drawing. Supports private label packaging for OEM customers.

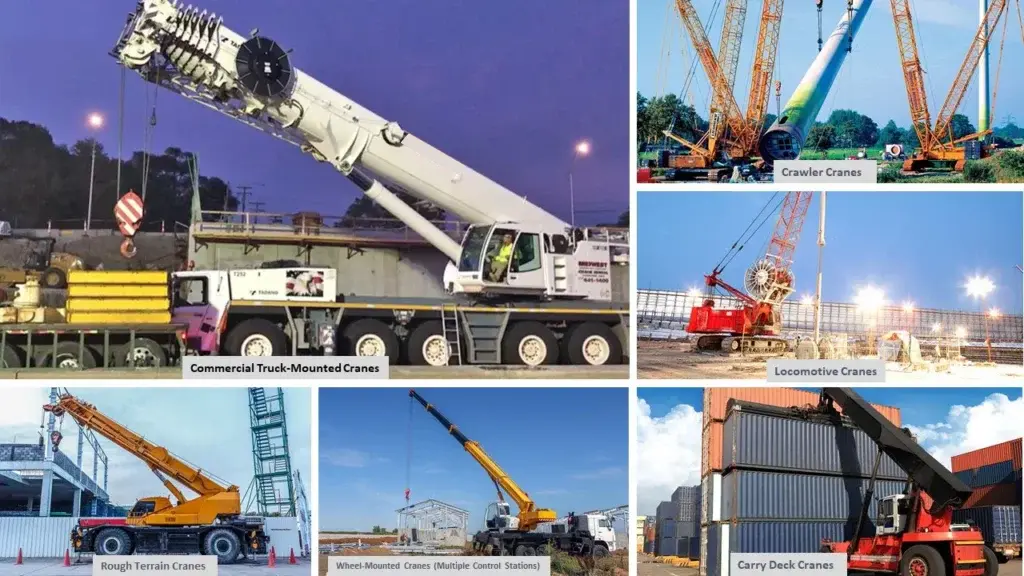

Boom angle control on truck-mounted and all-terrain mobile cranes. Handles the thrust needed to raise and hold the boom under full load.
Ship-to-shore and yard cranes in salt-spray environments. Triple progressive seal and hard chrome plating extend the maintenance cycle in coastal operations.
Crane boom luffing on installation and maintenance vessels. High thrust stability and micron-level servo control matter for offshore precision positioning.
Industrial lifting equipment in high-temperature and dust conditions. Energy-saving circuit reduces fuel or battery consumption on long shifts.
Send crane model and tonnage, required thrust, bore/stroke specification, port size, quantity and destination port.
Raydafon confirms whether the reference model fits, or if a custom build is required. FOB Ningbo quotation is issued with lead time.
For custom builds, Raydafon reverse-engineers the OEM part, produces a sample, and confirms bore, stroke, installation distance and port dimensions with the buyer.
7-pass die forging and double-aging heat treatment stabilize the body to above 1250 MPa tensile strength. Honing and hard chrome plating follow.
Piston, seals, servo module and buffer are assembled. The cylinder is pressure-tested at 32 MPa and stroke-tested for smoothness and servo response.
Cylinders are packed in reinforced wooden cases with anti-rust oil and protective end caps. Shipped by sea, air or express with packing list, invoice and inspection report.
Body alloy steel certificate, double-aging heat treatment record, seal compound data sheet provided with each shipment.
Each cylinder pressure-tested at 32 MPa before packing. Leakage, stroke smoothness, servo response and port fitting are recorded.
Bore, rod, stroke, installation distance and port dimensions recorded against the ordered specification or customer drawing.
Reinforced wooden case with anti-rust oil and protective end caps. Large cylinder batches palletized and strapped for sea freight.
A crane luffing hydraulic cylinder is the hydraulic component that controls the boom angle on a mobile crane. Luffing refers to raising or lowering the boom, and the cylinder drives this movement through a double-acting multi-stage telescopic design. It is one of the core cylinders on mobile cranes alongside the counterweight cylinder and the outrigger cylinder.

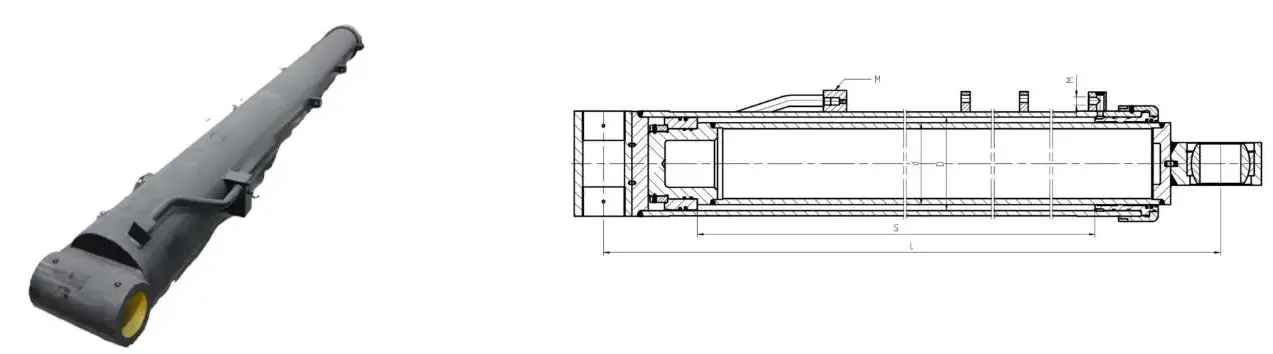

The reference model is ZXSTC1000S.2.5-00 with 3000 kN real-time dynamic thrust, 32 MPa working pressure, Φ320 mm bore, Φ280 mm rod, 4000 mm stroke, 4750 mm installation distance and 1522 kg unit weight. Raydafon supports custom bore and stroke for OEM crane brands.
The cylinder body is 7-pass die-forged from aviation-grade high-strength alloy steel, then double-aged to stabilize tensile strength above 1250 MPa. This forging process improves grain structure and fatigue life compared with conventional casting or machining from bar stock, which matters on a 3000 kN thrust cylinder running continuous lift cycles.
Raydafon uses an integrated electro-hydraulic servo module with aviation-grade servo valve cores and a magnetostrictive displacement sensor with ±0.03 mm accuracy. This supports ultra-low-speed stable operation at 0.08 mm/s, so the operator can position the boom precisely without stick-slip.
The triple progressive sealing structure has three layers. The main seal is a perfluoroether rubber composite ring imported from Germany with a double-lip design for two-way pressure compensation. The middle layer uses a stepped dust lip that intercepts solid particles larger than 5 μm. The outer layer provides additional wiper protection. Anti-pollution capability is 40% higher than a single-lip seal.
Raydafon uses an innovative differential amplitude circuit that reduces hydraulic oil circulation volume by 35% under no-load conditions. Combined with a high-efficiency permanent magnet synchronous motor pump group, system comprehensive energy consumption is reduced by 28% compared with the traditional solution.
The cylinder is designed for a 5000-hour maintenance-free cycle in salt-spray and dust environments. Raydafon supports full-spec customization of cylinder bore diameters from Φ50 mm to Φ500 mm, plus OEM packaging and private label. MOQ is 5 units per model.
Send your crane model and tonnage, required thrust, bore/stroke specification, port size, quantity and destination port. Raydafon will confirm the model or design a custom build, then offer an FOB Ningbo quotation with lead time and packing details.
Send your crane model and tonnage, required thrust, bore/stroke specification and order quantity. Raydafon will confirm the model or design a custom build, then offer an FOB Ningbo quotation with lead time and packing details.
