What Inspection Steps Help Verify the Quality of Tractor Hydraulic Cylinders?

A purchasing manager for an agricultural equipment distributor is reviewing a quote for tractor hydraulic cylinders. The price is attractive, the lead time is short, and the supplier's website is polished. But the manager has been burned before. A previous batch of cylinders, sourced from a different supplier, failed in the field within the first season. The rods were bent, the seals leaked, and the cylinder barrels showed signs of poor honing. The cost of the warranty claims and the damage to the distributor's reputation far exceeded the savings from the lower price. This experience illustrates a fundamental truth in procurement: the quality of Tractor Hydraulic Cylinders cannot be judged by a quote sheet or a website. It must be verified through a structured inspection process that covers the materials, the dimensions, the assembly, and the performance.

This guide is written for buyers who need to verify the quality of Tractor Hydraulic Cylinders before they are shipped. We will outline the inspection steps that a rigorous supplier should perform, the tests that verify the cylinder's performance and durability, the documentation that should accompany each shipment, and the criteria for auditing a supplier's quality system. We will also provide detailed product parameters from our factory at Raydafon Technology Group Co.,Limited. Whether you are sourcing cylinders for original equipment manufacturing or for the aftermarket, this guide will help you establish a quality verification process that protects your business.

Table of Contents

• 1. What Are the Most Common Failure Modes of Tractor Hydraulic Cylinders?
• 2. What Dimensional and Material Inspections Should Be Performed?
• 3. What Pressure and Leakage Tests Verify Performance?
• 4. How Should Surface Finish and Coating Be Verified?
• 5. What Documentation Should Accompany Each Shipment?
• 6. How Do You Audit a Supplier's Quality System?
• 7. What Are the Key Product Parameters from Our Factory?
• 8. Frequently Asked Questions (FAQ)
• 9. Conclusion

1. What Are the Most Common Failure Modes of Tractor Hydraulic Cylinders?

To design an effective inspection process, buyers must first understand how Tractor Hydraulic Cylinders fail in the field. The failure modes determine what should be inspected and what tests are most relevant. The most common failure modes are rod bending, seal leakage, barrel scoring, and thread or weld failure. Rod bending occurs when the cylinder is subjected to side loads or shock loads that exceed its design capacity. Seal leakage occurs when the seals are damaged by contamination or wear. Barrel scoring occurs when the piston or rod contacts the barrel wall, usually due to poor alignment or contamination. Thread and weld failure occur when the cylinder is subjected to overpressure or when the manufacturing quality is poor. The table below summarizes these failure modes and their root causes.

At Raydafon, our factory designs our Tractor Hydraulic Cylinders to resist these failure modes. We use high-strength materials, precision machining, and rigorous testing to ensure that our cylinders meet the demanding requirements of agricultural applications. Our inspection process is designed to catch any deviation from our specifications before the cylinder leaves the factory.

2. What Dimensional and Material Inspections Should Be Performed?

Dimensional and material inspections are the foundation of quality verification for Tractor Hydraulic Cylinders. These inspections confirm that the cylinder has been manufactured to the correct dimensions and that the materials meet the required specifications. The key dimensional checks are the bore diameter, the rod diameter, the stroke length, the mounting dimensions, and the port size. The key material checks are the chemical composition and mechanical properties of the barrel and rod. The table below summarizes the dimensional and material inspections.

At our factory, we perform dimensional and material inspections on every Tractor Hydraulic Cylinder we produce. We use calibrated instruments and maintain detailed records of all measurements. We also require mill certificates for all raw materials, which provide traceability to the steel mill. Our goal is to ensure that every cylinder meets the dimensional and material specifications before it moves to the assembly stage.

3. What Pressure and Leakage Tests Verify Performance?

Pressure and leakage tests are the most important performance tests for Tractor Hydraulic Cylinders. These tests verify that the cylinder can withstand the operating pressure without leaking or failing. The key tests are the proof pressure test, the burst pressure test, and the leakage test. The proof pressure test applies a pressure that is 1.5 times the rated operating pressure to the cylinder and holds it for a specified period. The cylinder must not leak or deform. The burst pressure test applies pressure until the cylinder fails, and the failure pressure must be at least 2.5 to 3 times the rated operating pressure. The leakage test measures the amount of oil that escapes past the seals under rated pressure. The table below summarizes these tests.

At Raydafon Technology Group Co.,Limited, we perform pressure and leakage tests on every Tractor Hydraulic Cylinder before shipment. We use a dedicated test bench with calibrated pressure gauges and flow meters. We also perform burst pressure tests on representative samples from each production batch. Our test records are available for review by our customers. Our goal is to ensure that every cylinder we ship meets the performance requirements of the application.

4. How Should Surface Finish and Coating Be Verified?

The surface finish and coating of a Tractor Hydraulic Cylinder are critical for its durability. The bore surface must be smooth enough to allow the piston seals to slide without wear, but rough enough to retain a lubricating film. The rod surface must be hard and smooth to resist abrasion and corrosion. The coating on the rod, typically hard chrome, must be uniform and adherent. The key inspections for surface finish and coating are bore roughness measurement, rod roughness measurement, coating thickness measurement, and coating adhesion testing. The table below summarizes these inspections.

At our factory, we inspect the surface finish and coating of every Tractor Hydraulic Cylinder. We use a profilometer to measure the roughness of the bore and rod, and we use an eddy current gauge to measure the chrome thickness. We also perform salt spray tests on representative samples to verify the corrosion resistance of the coating. Our goal is to ensure that our cylinders have the surface quality required for long service life in the field.

5. What Documentation Should Accompany Each Shipment?

The documentation that accompanies each shipment of Tractor Hydraulic Cylinders is an essential part of the quality verification process. It provides the buyer with a record of the inspections and tests that were performed, and it provides traceability in case of a problem. The key documents are the certificate of conformance, the material certificates, the dimensional inspection report, the pressure test report, and the surface finish report. The table below summarizes these documents.

At Raydafon Technology Group Co.,Limited, we provide a complete documentation package with every shipment of Tractor Hydraulic Cylinders. The package includes the certificate of conformance, material certificates, dimensional inspection reports, pressure test reports, and surface finish reports. We also provide a unique serial number on each cylinder, which allows us to trace the cylinder back to its production records. Our goal is to give our customers the information they need to verify the quality of the cylinders they receive.

6. How Do You Audit a Supplier's Quality System?

Auditing a supplier's quality system is the final step in verifying the quality of Tractor Hydraulic Cylinders. The audit confirms that the supplier has the systems and processes in place to consistently produce cylinders that meet the specifications. The key elements of a supplier audit are the quality management system, the manufacturing equipment, the inspection equipment, the calibration system, the traceability system, and the corrective action system. The table below summarizes these audit elements.

At our factory, we maintain an ISO 9001 certified quality management system. We have a comprehensive set of documented procedures that cover every aspect of production and inspection. We use calibrated equipment and maintain calibration records traceable to national standards. We have a traceability system that links every cylinder to its material certificates and production records. And we have a corrective action system that ensures that any non-conformance is investigated and resolved. We invite our customers to audit our facility and to review our quality system. Our goal is to be a transparent and reliable partner for Tractor Hydraulic Cylinders.

7. What Are the Key Product Parameters from Our Factory?

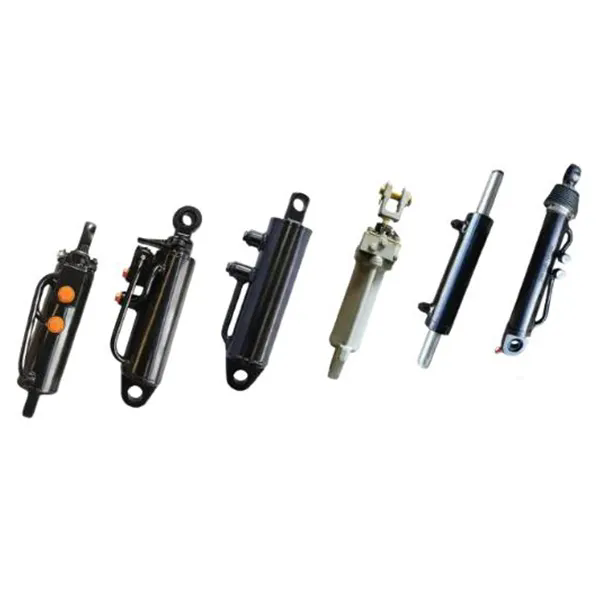

The following table provides the key product parameters for our Tractor Hydraulic Cylinders. These cylinders are designed for agricultural applications, including tractor steering, implement lifting, and hydraulic systems. Our factory can also produce custom cylinders to meet specific requirements.

At our factory, we manufacture our Tractor Hydraulic Cylinders to meet these specifications and more. We can customize the cylinder to suit your specific tractor model and hydraulic system. Our engineering team can assist with the selection process and provide detailed technical data for your project.

8. Frequently Asked Questions (FAQ)

Question 1: What is the most important inspection step for tractor hydraulic cylinders?

Answer: The most important inspection step is the pressure and leakage test. This test verifies that the cylinder can withstand the operating pressure without leaking or failing. It is the final confirmation that the cylinder is safe and reliable. However, the pressure test is only meaningful if the dimensional, material, and surface inspections have also been performed. A comprehensive inspection process covers all these steps.

Question 2: How do I verify the material quality of a tractor hydraulic cylinder?

Answer: You can verify the material quality by reviewing the mill certificates provided by the supplier. The mill certificates show the chemical composition and mechanical properties of the steel used for the barrel and rod. You can also request a spectrometer test report, which confirms the composition of the finished part. At Raydafon Technology Group Co.,Limited, we provide mill certificates and spectrometer reports with every shipment.

Question 3: What should I look for in a visual inspection of a tractor hydraulic cylinder?

Answer: In a visual inspection, look for the following: chrome plating on the rod should be uniform and free of pits or scratches; the weld seams should be smooth and free of cracks or porosity; the paint finish should be uniform and free of runs; the ports should be clean and free of debris; and the mounting surfaces should be flat and free of damage. Any visible defect should be investigated further.

Question 4: How often should I audit my supplier's quality system?

Answer: The audit frequency depends on the criticality of the application and the supplier's track record. As a general guideline, we recommend an initial audit before the first order, followed by annual or biennial audits. If the supplier has a strong quality system and a good track record, the audit frequency can be reduced. If there have been quality issues, more frequent audits may be necessary.

Question 5: What documentation should I require with each shipment of tractor hydraulic cylinders?

Answer: You should require the following documents with each shipment: certificate of conformance, material certificates, dimensional inspection report, pressure test report, and surface finish report. These documents provide a record of the inspections and tests performed, and they provide traceability in case of a problem. At Raydafon Technology Group Co.,Limited, we provide a complete documentation package with every shipment.

9. Conclusion

Verifying the quality of Tractor Hydraulic Cylinders requires a structured inspection process that covers the dimensional accuracy, material quality, surface finish, pressure performance, and documentation. Each of these steps provides a layer of assurance that the cylinder will perform reliably in the field. The most effective approach is to combine the supplier's in-house inspections with the buyer's own verification, including document review and periodic supplier audits. At Raydafon Technology Group Co.,Limited, our factory has the expertise and the equipment to manufacture high-quality Tractor Hydraulic Cylinders that meet the most demanding requirements. We perform comprehensive inspections on every cylinder and provide complete documentation with every shipment. We also welcome our customers to audit our facility and to review our quality system.

Whether you are sourcing cylinders for original equipment manufacturing or for the aftermarket, we invite you to contact us to discuss your requirements. We can provide samples, technical data, and customized solutions. Our commitment to quality and customer satisfaction has made us a trusted partner for agricultural equipment manufacturers around the world.

Contact Raydafon Technology Group Co.,Limited today to discuss your Tractor Hydraulic Cylinder requirements and discover how our quality verification process can protect your business.
