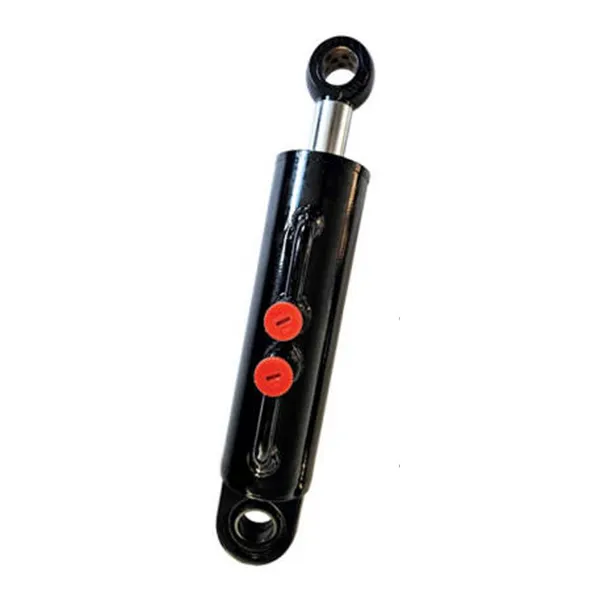

EP-MEZ504/55/016 Hydraulic Lift Cylinder

Raydafon has really built the EP-YC504D/55/016 hydraulic lift cylinder to be a high-performance linear actuator that can reliably lift heavy industrial equipment, construction machinery, and agricultural machinery up and down. It's a double-acting model, which means it gives steady force when both extending and retracting. This cylinder is perfect for jobs that need stable lifting and lowering with no room for mistakes. Heavy machinery hydraulic lift cylinders, for example, often work in conditions like this, where they need this kind of steady strength to do the job right.

This cylinder is strong, long-lasting, and can work in many different situations. It can handle the wind, sun, and rain of working outside, as well as rough, bumpy places. This kind of reliable lifting power is needed by things like mobile crane hydraulic lift cylinders, lift table hydraulic lift cylinders, grain cart hydraulic lift cylinders, and transport platforms. You can work without worry now that this cylinder is in place.

Technical Specifications

Structural Features

This hydraulic lift cylinder features a double-acting design, with a clever mechanism that delivers force in both directions under pressure—when the piston rod extends, it moves with a steady, firm push, and when it retracts, the force remains just as strong. That’s why, whether lifting a heavy load to a specific height or lowering it precisely into place, it handles the job with perfect control. The lifting and lowering movements are smooth and uninterrupted, making it especially handy in scenarios where operational accuracy matters, like lifting materials on assembly lines.

It falls into the category of a medium-bore compact hydraulic lift cylinder, with its 55 mm bore hydraulic lift cylinder size being the result of repeated testing and adjustments. This dimension strikes a smart balance: it provides enough thrust to easily handle the load demands of medium to heavy-duty equipment, while avoiding taking up excessive space. For compact forklifts or small loaders where installation space is tight, this cylinder fits right in—meeting power needs without interfering with the operation of other machine components. It’s practically tailor-made for equipment with limited space.

The sealing system is a standout feature, too. As a dual-seal hydraulic lift cylinder, it combines the strengths of nitrile rubber and polyurethane seals. Nitrile rubber boasts excellent oil resistance, standing up to long-term exposure to hydraulic oil, while polyurethane offers great elasticity and wear resistance, holding up well against frequent telescoping movements without aging easily. Working together, these two materials minimize the risk of oil leakage even in harsh conditions—think dusty mining sites, damp and rainy outdoor areas, or high-frequency operation environments where the cylinder moves hundreds of times a day. This translates to a much longer service life compared to cylinders with ordinary single seals.

Its corrosion resistance is another major plus, earning it the title of a corrosion-resistant hydraulic lift cylinder. The surface of the cylinder barrel undergoes special anti-corrosion treatments, such as electroplating or anti-corrosion coating spraying, which act like a “protective coat” for the cylinder. This means it can withstand corrosion in exposed settings: whether used in agricultural fields hydraulic lift cylinder setups, where it’s constantly exposed to fertilizers and muddy water, or in construction zones hydraulic lift cylinder applications, dealing with cement slurry and rain day in and day out, it won’t easily rust or get stuck. Even after three to five years of use, its performance remains reliable.

There’s also a particularly user-friendly detail in its eye-type end connection hydraulic lift cylinder design. This connection comes with a movable bushing, so during installation, there’s no need to struggle with precise alignment of screw holes. Just slot it into a standard mounting bracket or clevis, adjust the angle slightly, and secure it in place. Compared to flange connections that require exact positioning, it cuts installation time by more than half—even new technicians can get the job done quickly.

Application Scenarios

The EP-YC504D/55/501 cylinder adapts to vertical actuation needs across various industries, proving its worth in all sorts of hydraulic lift cylinder setups.

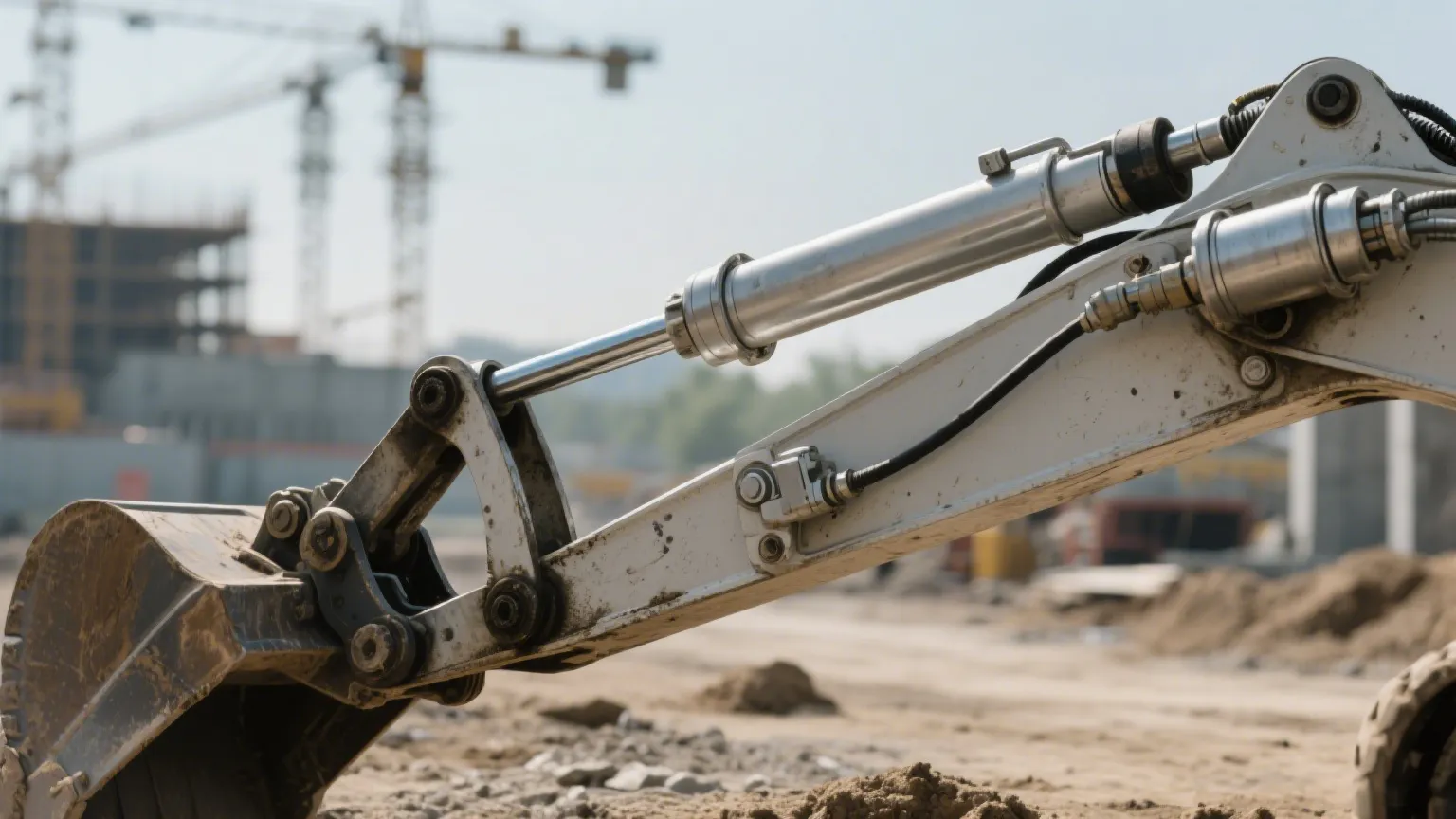

In construction machinery, it works as a solid construction machinery hydraulic lift cylinder. Site lifts hydraulic lift cylinder systems, compact excavator booms hydraulic lift cylinder configurations, and hydraulic platforms hydraulic lift cylinder setups on job sites all rely on it to precisely control vertical loads—whether hoisting heavy items or adjusting heights, it stays steady and reliable.

On mobile agricultural equipment, it transforms into a mobile agricultural equipment hydraulic lift cylinder. Grain dump beds hydraulic lift cylinder mechanisms, feed bins hydraulic lift cylinder systems, and bale handlers hydraulic lift cylinder setups all depend on its steady power for lifting and retracting, making operations smooth and manageable.

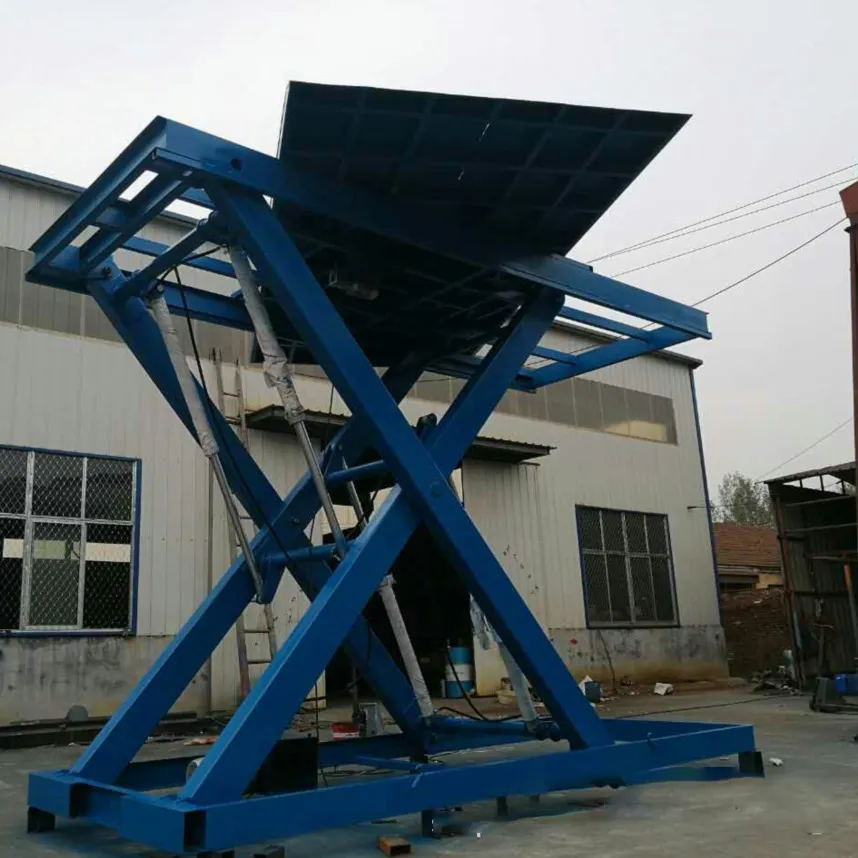

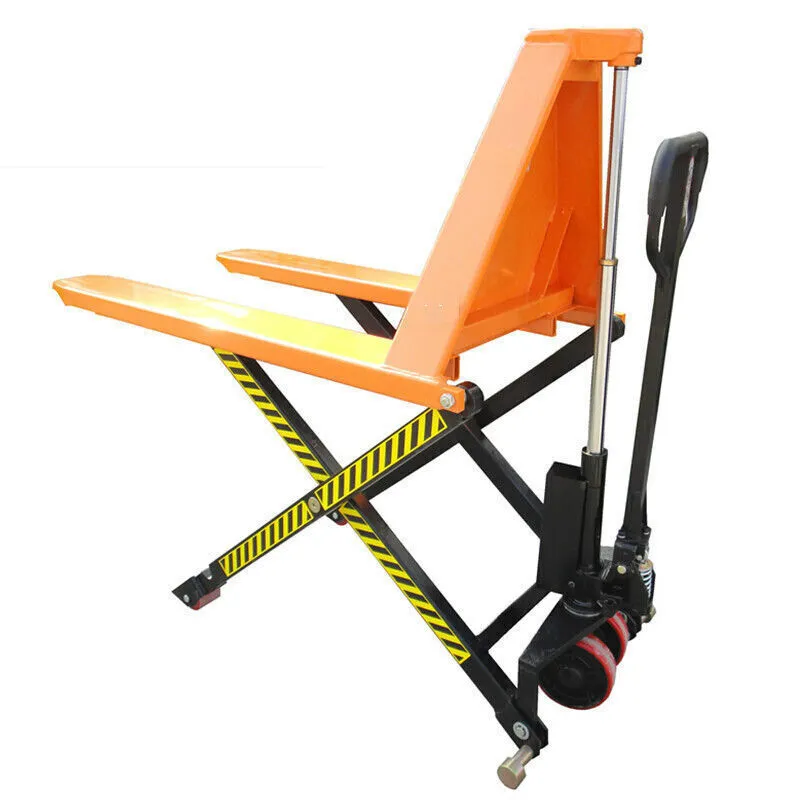

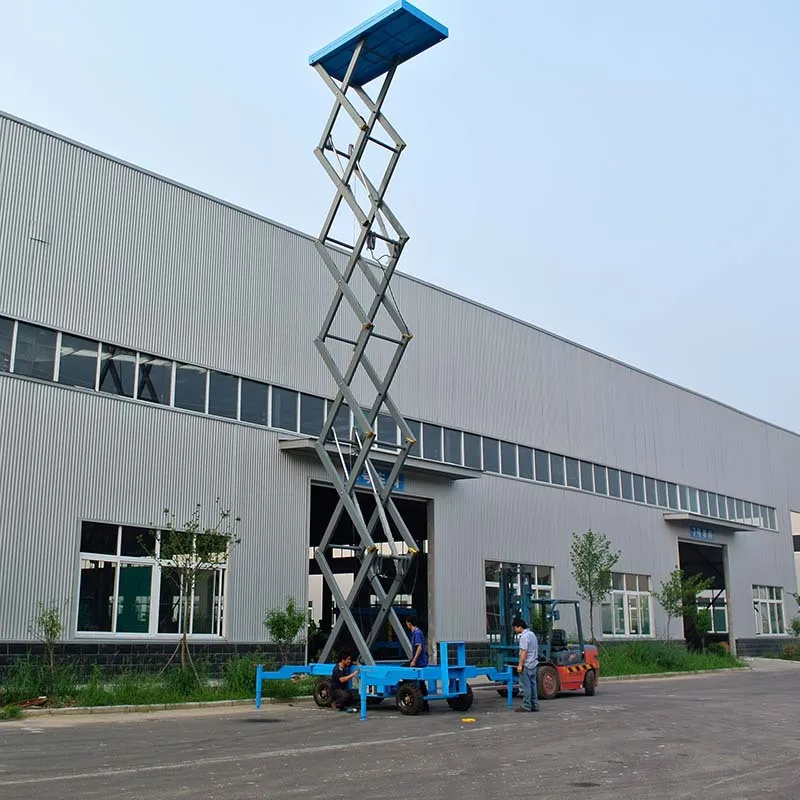

It fits right into heavy-duty lift tables hydraulic lift cylinder units and scissor lifts hydraulic lift cylinder systems, delivering consistent two-way force that ensures precise height control during material handling tasks.

For utility vehicles and trailers, it serves as both a utility vehicles hydraulic lift cylinder and trailers hydraulic lift cylinder. Tailgate lift systems hydraulic lift cylinder setups, mobile loading ramps hydraulic lift cylinder mechanisms, and container lifts hydraulic lift cylinder configurations all benefit from its presence, making work easier and safer.

In off-road and forestry equipment, it acts as an off-road machinery hydraulic lift cylinder and forestry machinery hydraulic lift cylinder. Adjustable harvesting arms hydraulic lift cylinder systems and slope leveling systems hydraulic lift cylinder setups rely on it to maintain precise control over movements, standing up to tough working conditions.

Frequently Asked Questions

Q: How long does it take to get a custom order ready?

A: For custom orders, we first need to go through a consultation to finalize the design before starting production. Typically, a batch of custom parts takes around 4 to 6 weeks, but if the job is more complex or the order quantity is large, the time might be pushed back a bit.

Q: Do you offer a warranty on your hydraulic cylinders?

A: Yes, we do. The standard warranty is 12 months from the date of shipment, covering manufacturing defects and material faults.

Q: Can the EP-MEZ504 cylinder work with any type of hydraulic fluid?

A: It works with regular mineral oil-based hydraulic fluids. But if you're using special fluids, like biodegradable ones, or have specific application scenarios, it's best to check with our technical department and let them advise you.

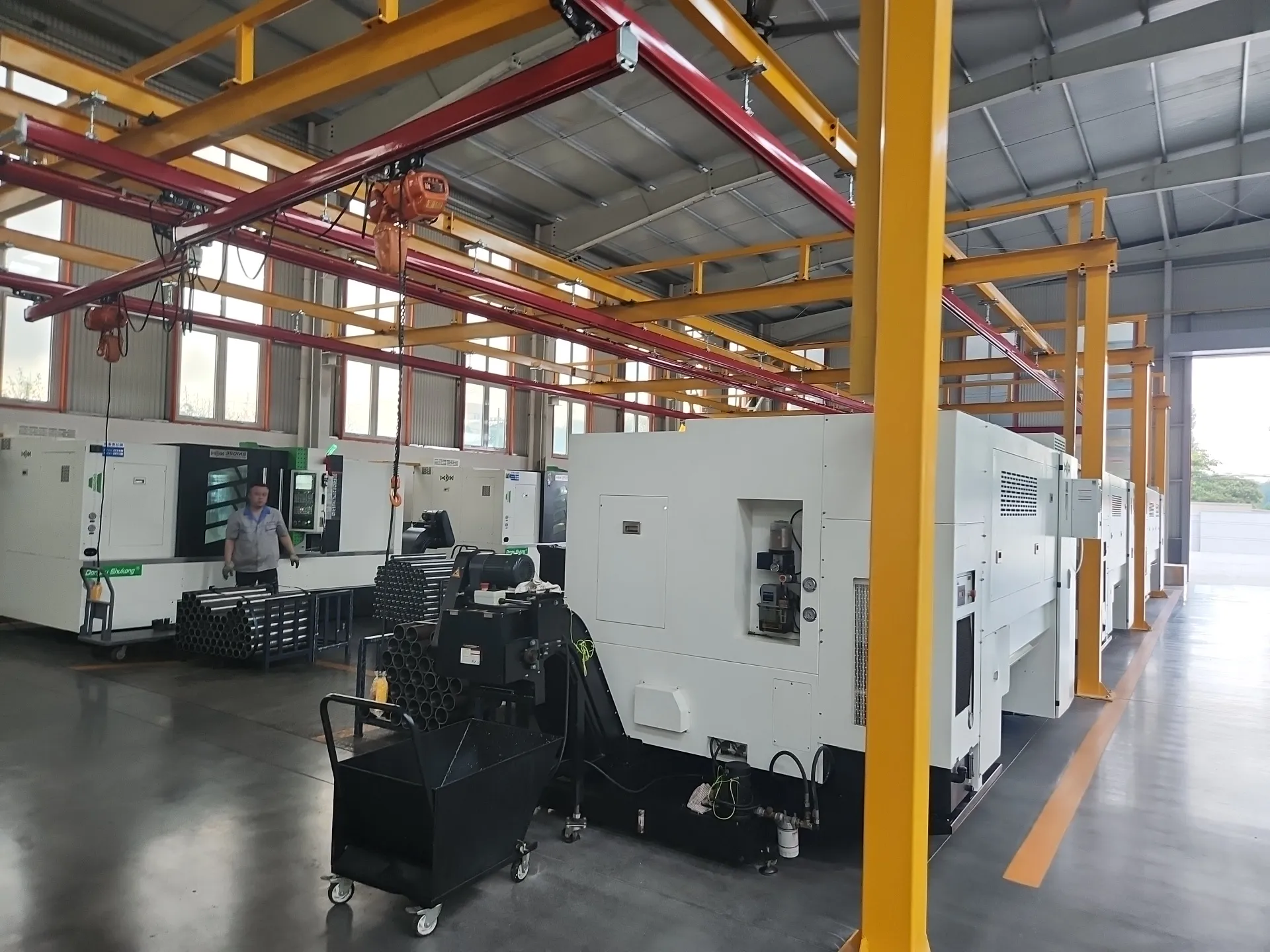

Q: Does your factory have any certifications?

A: Our factory operates according to the ISO 9001:2015 quality management standards. Every product is strictly controlled during production, and we can trace back when and who made it.
