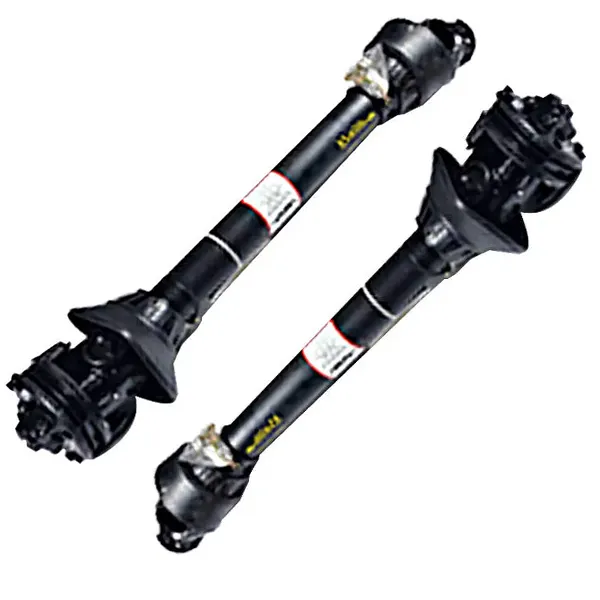

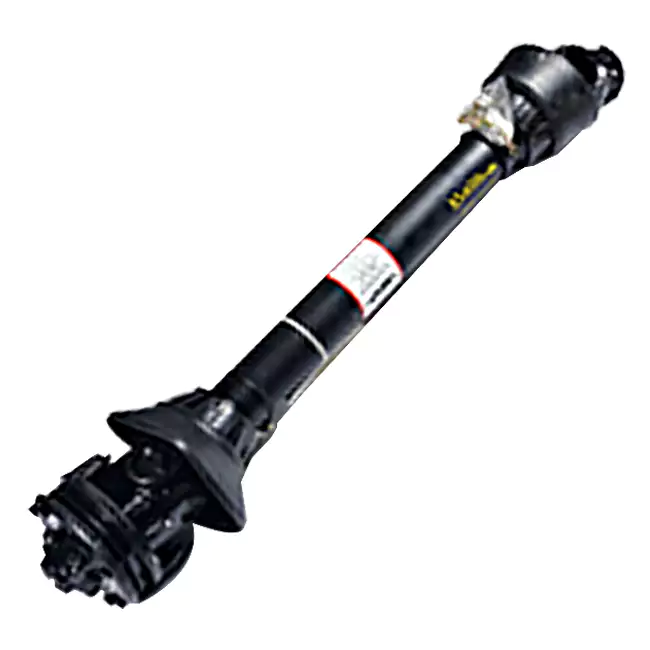

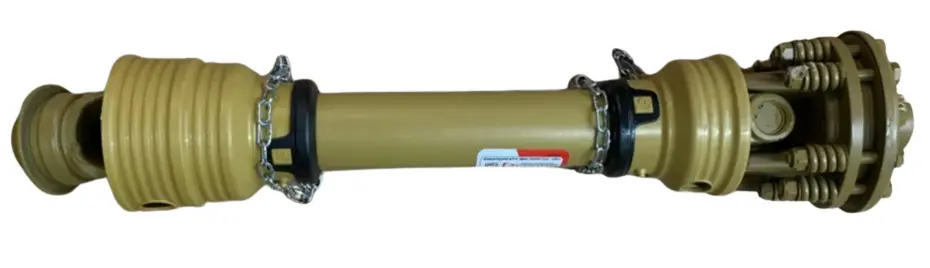

Slip Clutch PTO Shaft for Disc Mower 1340

Product Benefits

Raydafon's Slip Clutch PTO Shaft is equipped with a double-plate friction plate slipping mechanism. When the disc mower encounters sudden resistance such as stones and tree roots, it can quickly cut off the power transmission within 0.3 seconds, effectively avoiding the distortion of the drive shaft or damage to the gearbox. Its precisely set 2,800Nm slipping torque can not only effectively protect the safety of the equipment, but also prevent the operation progress from being affected by frequent downtime, providing a reliable "invisible insurance" for high-risk working environments.

For complex terrains such as wetlands and slopes, the PTO shaft adopts a composite design of hydraulic damping and spring preload, which can automatically adjust the torque output when the resistance fluctuates, ensuring that the blade speed is stable and maintained in the ideal range of 1,800-2,200rpm. This intelligent compensation mechanism can not only improve cutting efficiency, but also reduce tractor fuel consumption by 12%, which is the preferred solution for both operating efficiency and cost control.

The product innovation adopts a combination design of three-lip skeleton oil seal and magnetic chip removal ring. Even if it runs continuously for 500 hours in harsh environments such as sand, dust, and dew, the metal particle contamination inside the universal joint is still lower than the ISO 4406 18/16 standard. The fully enclosed dust cover design can resist acid corrosion. Users only need to add grease regularly, without disassembly and maintenance, which greatly reduces the annual maintenance cost compared with traditional products.

The Slip Clutch PTO Shaft for Disc Mower 1340 is equipped with a self-resetting spring system. After overload slipping, power transmission can be restored within 30 seconds, and the reset efficiency is much higher than the manual reset shaft. In addition, the visual wear indicator ring can warn the clutch replacement cycle in advance, helping users avoid sudden failures and reduce downtime. It is an important component for large-scale ranches to improve equipment attendance.

Product Specifications

Original Equipment: 55N, replacing Weasler 80-degree CV joint (tractor side) and 50-degree CV joint (discbine side).

Input Shaft: Typically 1.50" round.

Construction: Made of durable steel with 1-3/8" 6-spline ends for tractor and implement connections.

Features: Includes a slip clutch to protect equipment or tractor PTO shaft, facilitating easy replacement.

Compatibility: Suitable for Hesston 1340 and 1345, select CaseIH 8312, Massey Ferguson PTD 12, and New Idea 5512.

Benefits: Enhances farm work efficiency as a reliable power tool.

Product Parts
