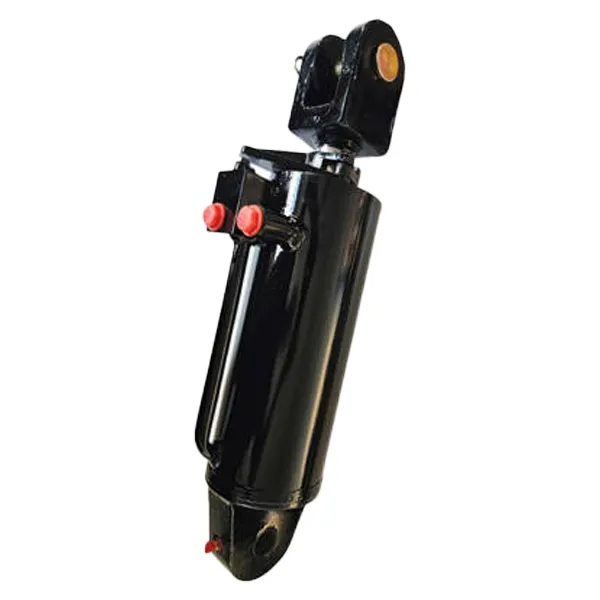

EP-TC04.55JD.010 Hydraulic Lift Cylinder

The EP-TC04.55JD.010 Hydraulic Lift Cylinder—this one’s built tough, meant for the heavy lifting in forklifts, scissor lifts, and material handlers. No fancy talk here: it’s an industrial workhorse that pushes hard, stays steady, and keeps going even when the load’s maxed out.

We made it with high-strength stuff, no cutting corners. The metal’s thick, the welds are solid, and every part’s put together to handle rough days—dusty warehouses, bumpy loading docks, whatever comes its way. That’s why it fits right in as a hydraulic lift cylinder for forklifts, where it needs to hoist pallets all shift long, or as a hydraulic lift cylinder for scissor lifts, lifting workers and gear without a wobble.

Our factory in China uses modern gear to build these, but we don’t forget the basics. Need a tweak? We can adjust stroke length or mounting to fit your machine—no problem. And the price? It’s fair, because we think good quality shouldn’t break the bank. Whether you’re swapping out an old cylinder or building a new system, this EP-TC04.55JD.010 holds its own. It’s the kind of heavy-duty hydraulic lift cylinder that doesn’t let you down when the job’s on the line.

Product Specification

The EP-TC04.55JD.010 Hydraulic Lift Cylinder from Raydafon is designed for applications requiring controlled linear force in lifting and positioning tasks. This model provides consistent performance in environments where precision and durability are essential. Below is a detailed specification table for quick reference:

Classification by Work Principle

Hydraulic lift cylinders work off Pascal’s Law—basic idea is that fluid that can’t be squeezed sends pressure evenly through the system, turning that pressure into straight-line movement. But not all cylinders work the same way; there are two main types, each with its own job.

First, single-acting cylinders. These ones use fluid pressure to push the piston out, but to pull it back? They need a little help—gravity, a spring, whatever’s handy. Simple stuff, good for straightforward jobs. Like in US farm equipment, where you just need to lift a plow or a seeder. A single-acting hydraulic lift cylinder for US farm implements doesn’t need fancy tricks; it lifts when you pump fluid in, drops back down when you let the pressure off, relying on the weight of the tool to pull it back. Farmers in the Midwest like ’em because they’re cheap to fix, handle up to 5 tons easy, and don’t break down much—no extra parts to go wrong.

Then there’s double-acting cylinders. These are the workhorses for jobs that need more control. Fluid pressure pushes the piston out and pulls it back in—no springs or gravity needed. That means you can lift slow, lower steady, or stop halfway without any fuss. Take our EP-TC04.55JD.010, for example—it’s a double-acting hydraulic lift cylinder built for US construction gear. On California job sites, where they’re moving excavator arms or loader buckets all day, this kind of control matters. You can handle variable loads, push up to 3000 PSI, and get 20-30% more done in repetitive tasks compared to single-acting ones. It’s the double-acting hydraulic lift cylinder for US industrial lifting that keeps things smooth, even when the work gets tricky.

So whether it’s a simple single-acting model for the farm or a tough double-acting one for the construction site, each type plays to its strengths. But when you need precision—like positioning heavy equipment or managing tricky loads—double-acting is the way to go.

Product Features

Hydraulic lift cylinders are the backbone of all sorts of industrial and mobile gear—tough, versatile, and built to get the job done. Let’s start with how much they can lift. These things don’t shy away from heavy loads. Take a heavy-duty hydraulic lift cylinder on a construction crane, for example—it hoists steel beams like they’re nothing. Even the compact ones, the kind used in warehouse lifts, handle pallets stacked high without breaking a sweat. What matters is they do it steady, no sudden drops or shifts, even when the pressure’s cranked up.

Then there’s how smooth they move. No jerks, no jolts—just clean, controlled motion. That’s all thanks to the seals. Good ones, made to keep fluid from leaking out, so the cylinder moves exactly how you need it to. Think about an agricultural hydraulic lift cylinder on a harvester: it has to lower the cutting head just right, not too fast, not too slow, or you risk damaging crops. The seals and rod guides keep that movement consistent, which means less wear over time—so the cylinder lasts longer.

Durability? These things are built like tanks. Seamless steel tubes, rods plated with hard chrome—they laugh off rust, scrapes, and bumps. A hydraulic lift cylinder for dump trucks, for instance, sits under muck, rain, and constant shaking all day. But because of the materials, it keeps working, day in and day out. Same for mining gear or marine lifts—tough environments don’t faze them.

What really makes them useful is how easy they are to tailor. Need a telescopic hydraulic lift cylinder that tucks into a tight spot on a garbage truck? No problem. Want a double-acting model that pushes and pulls for a forklift? We can do that. Bore size, stroke length, how it mounts—we tweak all that to fit your machine. It’s not one-size-fits-all; it’s one-size-fits-your job.

They’re efficient too. Turn hydraulic power into lifting force without wasting much energy. That means mobile equipment uses less fuel, and industrial setups keep costs down. When you’ve got a factory floor with a dozen hydraulic lift cylinders moving parts around, that efficiency adds up fast.

And when something does need fixing? They’re designed to be easy to work on. Seals, bearings—you can get to them without tearing the whole machine apart. So if a seal wears out, you swap it out quick and get back to work. No long downtimes, no big headaches. That’s key for places where every minute counts, like manufacturing lines or logistics hubs.

At the end of the day, hydraulic lift cylinders aren’t just parts. They’re reliable, adaptable, and built to keep your gear running—no matter what you throw at them.

About Raydafon

Raydafon’s roots are in Zhejiang Province—a busy industrial corner of China—where we focus on making hydraulic lift cylinders and steering parts that don’t back down from tough work. We’re all about building hydraulic solutions that make sense for real machines, not just on paper. No overcomplicating things: our production stays consistent, our designs stay simple, and that’s how our heavy-duty hydraulic lift cylinders keep performing, whether they’re on a construction site, a farm, or a rough off-road vehicle.

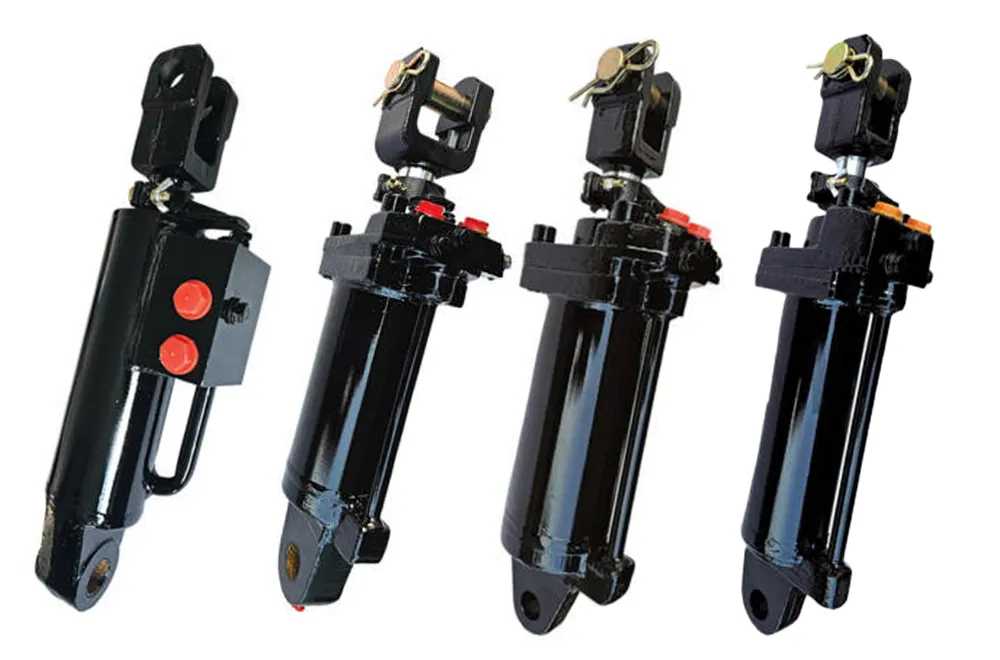

You’ll find our hydraulic lift cylinders hard at work across a bunch of industries. Farmers rely on them for lifting plows and seeders; construction crews use them to move crane arms and mixer buckets; warehouses depend on them for stackers and lift tables. We’ve got the know-how to make all sorts—from precise steering hydraulic cylinders that keep forklifts on track to double-acting hydraulic lift cylinders that push and pull with equal force, and even custom OEM hydraulic lift cylinders built for one-of-a-kind machines. Every one of them is made to take a beating and keep going.

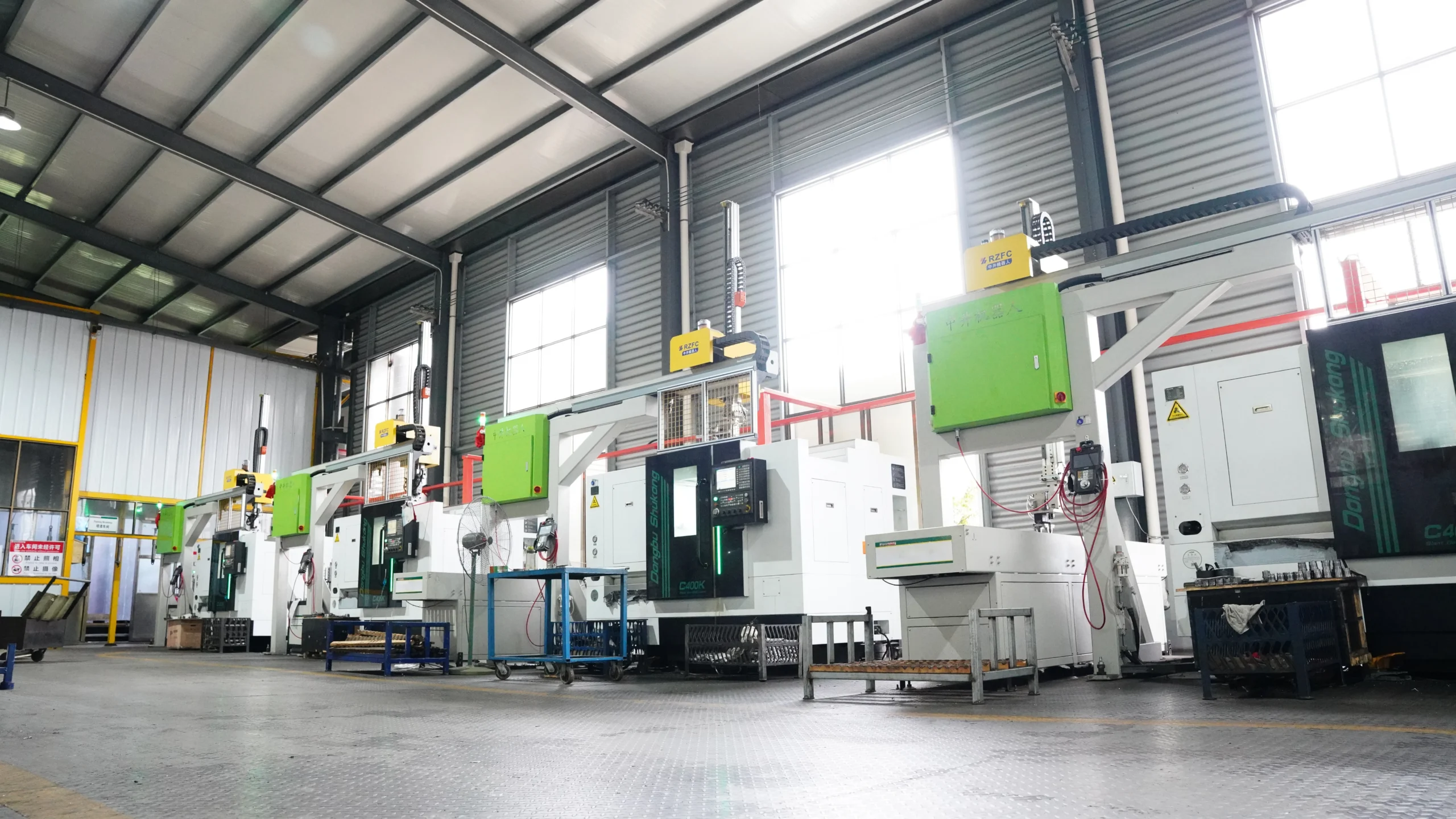

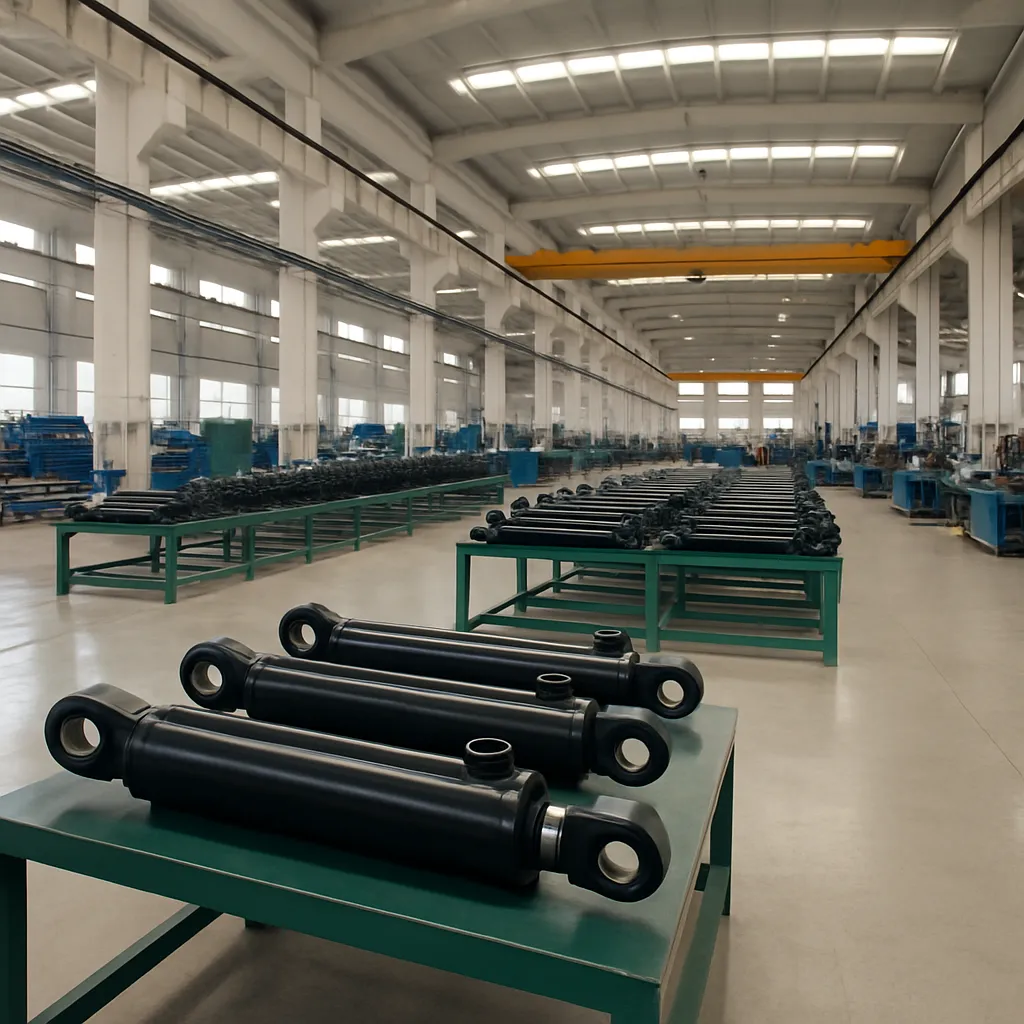

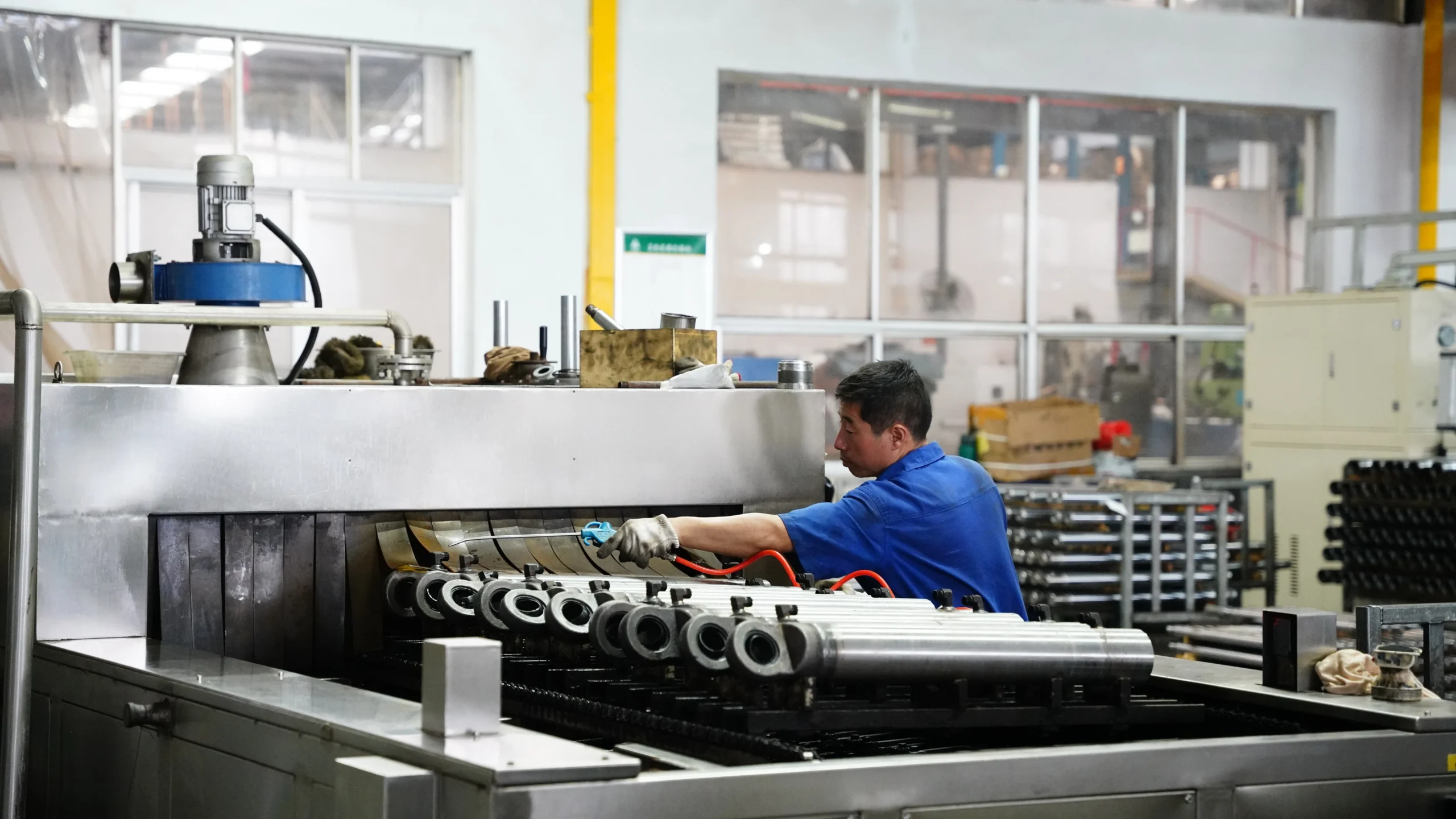

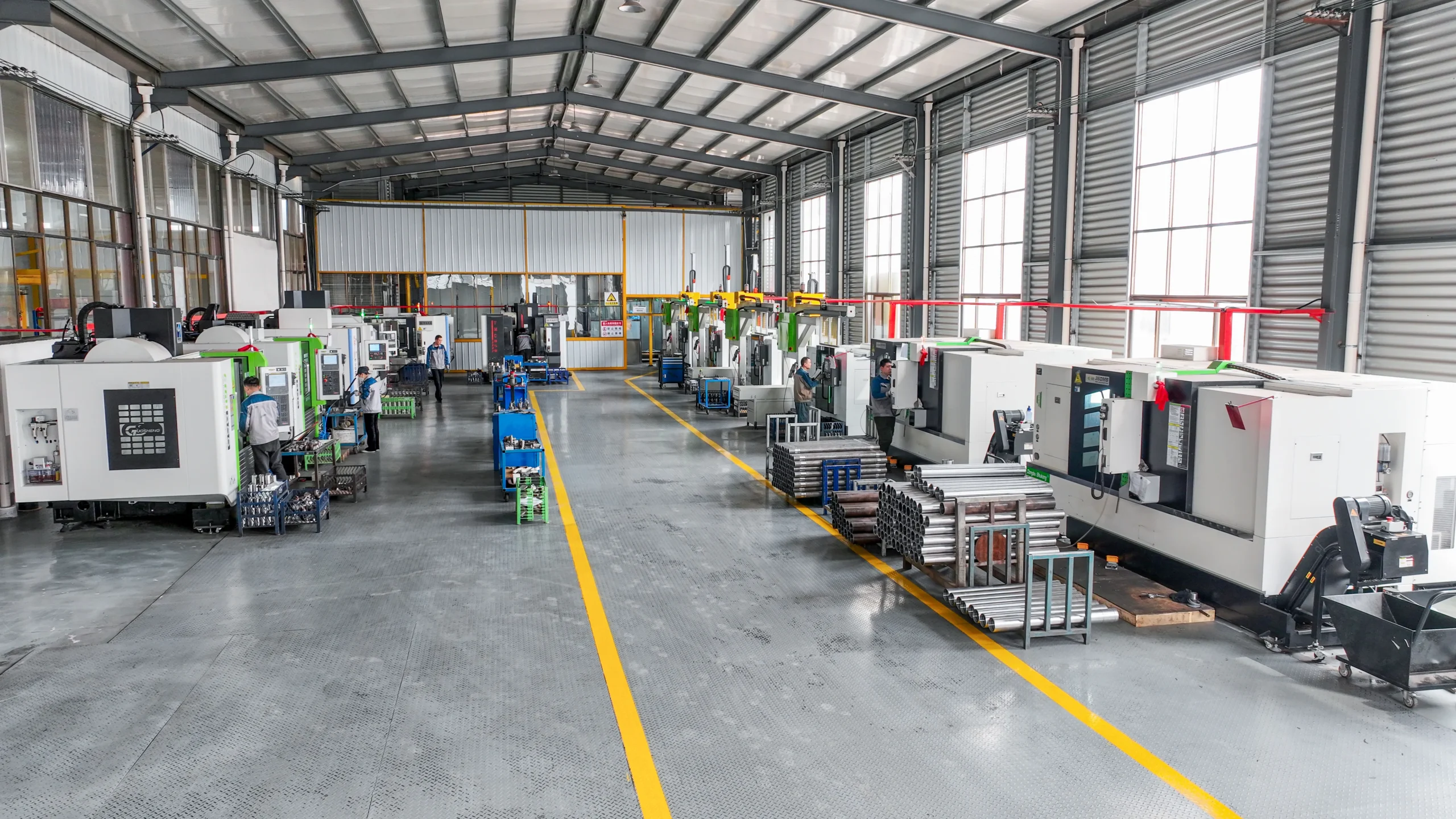

Quality isn’t just a checkmark here. We stick to ISO 9001 and ISO/TS 16949 standards like glue, so every industrial hydraulic lift cylinder that leaves our factory meets the strictest industry rules. Our China-based shop uses modern gear, but we don’t skip the basics—tight tolerances, tough materials, and checks at every step. That way, when a customer bolts our cylinder onto their equipment, they know it’ll run smooth and last.

What really sets us apart is how we tailor our work. Need a hydraulic lift cylinder with a longer stroke for a dump truck? We’ll adjust it. Want a specific mounting style for a marine winch? No problem. Bore size, surface finish—we tweak all the details to fit exactly what you need. Whether it’s a brand-new OEM project or a replacement for an old machine, our team makes sure the custom hydraulic lift cylinder fits like it was always meant to be there.

Our products are out in over 30 countries now—helping farmers plant crops, logistics teams move goods, ships steer straight, and off-road vehicles tackle rough terrain. We’ve earned our spot as a go-to hydraulic lift cylinder manufacturer by keeping it real: good products, clear communication, and no nonsense. At Raydafon, we’re here for businesses that need cylinders built to last—so their equipment can keep working, day in and day out.
