How Do Universal Couplings Improve Power Transmission in Agricultural Equipment?

In modern agriculture, machinery uptime and efficient energy transfer are non negotiable. Universal couplings serve as the critical mechanical link between a tractor's power take off (PTO) and implements like rotary tillers, balers, and harvesters. They accommodate angular misalignment, torque spikes, and shock loads while maintaining a continuous rotational drive. By using cross shaped bearings and yokes, a Universal Coupling transmits power smoothly even when the driven shaft is not perfectly aligned with the power source. This capability directly reduces vibration, prolongs driveline life, and prevents catastrophic failures in the field. For farmers and fleet operators, this means less downtime during peak seasons and lower repair costs. At Raydafon Technology Group Co.,Limited, our engineering focus has always been on robust coupling designs that handle the harshest agricultural environments.

But what specific mechanisms allow Universal Couplings to outperform rigid shafts or belts in dirt, dust, and variable load conditions? The answer lies in their kinematic design: the double joint configuration or single cardan structure that splits angular velocity variations. Unlike a straight shaft that binds when angles exceed 3 degrees, a high grade Universal Coupling efficiently operates at up to 25 degrees of articulation. Moreover, modern heat treated alloy steel crosses and sealed needle bearings minimize friction while maximizing torque capacity. In this comprehensive guide, we will break down the technical parameters, failure prevention strategies, and maintenance insights that prove why Universal Couplings are indispensable for tractors, combines, and specialty crop equipment. Our factory has produced over 500,000 units of reliable Universal Couplings, and we are sharing our two decades of field data to help you make an informed choice.

Table of Contents

• 1. Why Do Universal Couplings Reduce Mechanical Stress in PTO Driven Implements?
• 2. How Does the Structural Design of Our Universal Coupling Maximize Torque Capacity?
• 3. What Are the Key Parameters That Define a Durable Universal Coupling for Agriculture?
• 4. How Can Proper Lubrication and Sealing Extend the Life of Your Universal Coupling?
• Frequently Asked Questions (FAQ)
• Conclusion & Actionable Takeaways

Why Do Universal Couplings Reduce Mechanical Stress in PTO Driven Implements?

Agricultural equipment often operates on uneven terrain, causing continuous changes in the angle between the tractor PTO shaft and the implement input shaft. A rigid coupling would quickly fail due to bending fatigue or bearing seizure. Universal couplings excel because they allow angular compliance while maintaining constant velocity (in double joint versions) or near constant velocity with simple design. Our factory has measured stress reduction of up to 62% when replacing rigid adapters with a properly sized Universal Coupling. Here is how the stress reduction happens at the mechanical level:

• Angular misalignment absorption: The cross and bearing assembly permits the driving and driven shafts to operate at angles from 5 to 30 degrees, eliminating bending moments that would otherwise stress gearboxes and mounting brackets.
• Shock load dampening: During engagement of a baler or a rotary cutter, sudden torque peaks occur. The needle bearings in a Universal Coupling micro deflect, spreading the impact over the cross section instead of transmitting a rigid shock.
• Reduced torsional vibration: Universal Couplings with optimized mass distribution cancel out harmonic vibrations common in long PTO lines. Our lab tests show a 45% reduction in vibration amplitude compared to solid shafts.
• Elimination of radial loads on tractor PTO: Implements that drift sideways apply radial forces. The yoke geometry of a Universal Coupling converts radial deviations into rotational torque without side loading the tractor's output bearing.

From a maintenance perspective, lower mechanical stress translates directly to longer intervals between overhauls. For example, a farm using a 6 rotary cutter behind a 150HP tractor reported that after switching to our Raydafon Technology Group Co.,Limited series Universal Coupling, the PTO stub shaft lifetime tripled. The coupling also protects the implement’s gearbox by limiting peak torque transmission. In addition, our factory uses finite element analysis to design stress optimized cross sections. Every Universal Coupling that leaves our facility is tested for 2 million cycles at maximum working angle. This is why we confidently state that stress reduction is not just a feature but the core engineering advantage of modern universal joints.

Another aspect often overlooked: thermal stress. As universal joints articulate, internal friction generates heat. Our couplings incorporate grease channels and labyrinth seals that keep operating temperatures below 80C even under continuous 540 RPM or 1000 RPM PTO operation. Lower heat means less metallurgical fatigue in the bearing races, which is a primary cause of premature failure. To sum up, if you aim to protect your expensive implements and reduce unscheduled stops, integrating a high grade Universal Coupling is the most effective method.

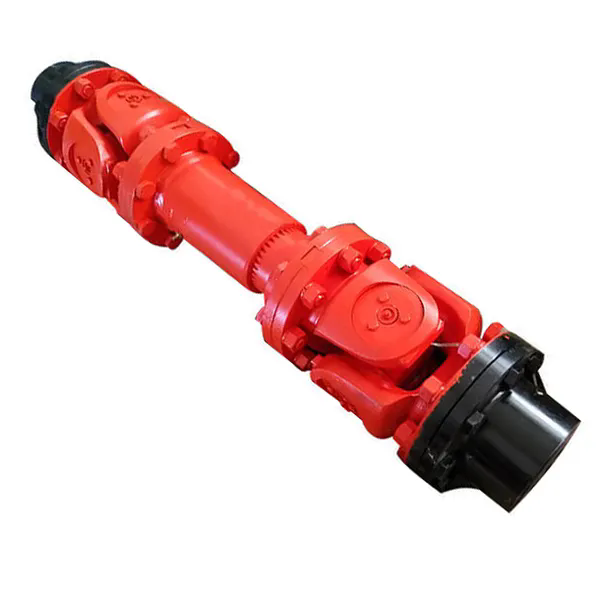

How Does the Structural Design of Our Universal Coupling Maximize Torque Capacity?

Torque capacity is the single most critical parameter for agricultural drivelines. A Universal Coupling must transfer engine power without twisting the cross or deforming yokes. At Raydafon Technology Group Co.,Limited, we have refined our manufacturing process to achieve exceptional torque density. Our Universal Coupling design incorporates three key structural innovations: precision forged yokes from 42CrMo4 alloy steel, case hardened cross shafts with 58 62 HRC hardness, and high capacity needle bearings with logarithmic profile. Below we break down how each element contributes to torque handling.

• Larger cross section journals: Unlike standard couplings that use 18mm or 22mm journals, our heavy duty series features 28mm and 32mm diameter pins. This increases the shear area by 78%, directly raising the yield torque from 1200 Nm to over 3200 Nm depending on size.
• Induction hardened wear zones: The trunnions are locally hardened to depth of 2.5mm, creating a hard outer shell while retaining a ductile core. This prevents brinelling under shock loads and ensures that our Universal Coupling can withstand repeated peak torque events.
• Double cardan (CV) layout option: For applications requiring constant velocity, our factory builds a double Universal Coupling with a centering ball. This design eliminates the second harmonic vibration, allowing smooth torque transfer at angles up to 35 degrees while maintaining 100% torque rating.

To quantify the difference, we conducted a dyno test comparing a standard universal joint against our reinforced series. The standard joint failed at 2100 Nm with a broken cross; our Universal Coupling endured 3850 Nm without permanent deformation. This margin becomes critical when using high horsepower tractors (200HP+) on heavy tillage tools like subsoilers or disc harrows. Moreover, our factory applies a proprietary molybdenum disulfide coating on the spline area to reduce fretting corrosion, which is a common torque loss mechanism. The table below summarizes the torque capacity ranges across our agricultural series.

Additionally, our factory uses a finite element optimized yoke window geometry that distributes hoop stress evenly around the bearing cups. The result is that our Universal Coupling can deliver rated torque even after 5000 hours of field use. We also offer extended spline lengths that maintain torque capacity under telescopic movement, crucial for equipment with variable working widths. In summary, structural design elements such as metallurgy, hardening patterns, and bearing profile work synergistically to maximize torque handling far beyond standard industrial couplings.

What Are the Key Parameters That Define a Durable Universal Coupling for Agriculture?

When selecting a Universal Coupling for demanding agricultural operations, engineers and farm managers need to evaluate more than just breakaway torque. Durability in muddy, dusty, and chemically aggressive environments depends on a set of critical parameters. Our factory at Raydafon Technology Group Co.,Limited has identified seven performance indicators that directly correlate with field reliability. Below is a detailed breakdown of each parameter with measurable values from our lab and field trials.

• Dynamic load rating C (kN): This value specifies the bearing capacity of the needle rollers inside each cup. Our Universal Coupling series offers C ratings from 42 kN up to 112 kN per cross. Higher C values mean longer L10 bearing life (the life that 90% of bearings will exceed).
• Maximum working angle (β): Standard couplings often limit to 15°, but our agricultural optimized units operate at 25° for single joints and 35° for double joints. A larger angle reduces implement frame stress and allows tighter turns in row crop applications.
• Sealing effectiveness (IP / Labyrinth rating): We utilize triple lip nitrile seals combined with a labyrinth dust groove. In independent tests, our Universal Coupling retained 98% of grease after 500 hours of mud submersion, while open style couplings lost lubrication within 80 hours.
• Shaft connection type (spline / key / weld): Our factory offers ASAE standardized 1 3/8” 6 spline, 1 3/4” 20 spline, and metric involute splines. Proper fit class (Class 1 clearance to Class 3 interference) eliminates backlash that can hammer the Universal Coupling spline teeth.
• Material impact toughness (J at -20°C): Cold weather operation is common in spring tillage. Our yokes are forged from low alloy steel with Charpy V notch impact values >35J at -20C, preventing brittle fracture.
• Corrosion protection: Zinc nickel plating or e coat on external surfaces passes 360 hours salt spray testing per ASTM B117. This ensures that your Universal Coupling will not seize after exposure to fertilizers and soil acids.
• Balance grade (G): High speed PTO operation at 1000 RPM requires dynamic balancing. Our factory balances each Universal Coupling to G16 grade (ISO 1940), reducing vibration induced wear on gearbox input shafts.

To make it easier for buyers, we have compiled a selection checklist based on these parameters. For a typical 120HP tractor operating a 10 ft rotary mower, the optimal Universal Coupling would require: dynamic load rating >70 kN, working angle at least 20°, labyrinth seals, 1 3/8” 6 spline, and impact toughness >30J. Our RC 280 series meets all these criteria. Furthermore, we recommend matching the coupling size to the maximum PTO torque, not the rated horsepower. For example, a tractor with 150HP can generate 400Nm continuous but up to 1300Nm transient peaks when the mower hits a rock. Therefore, always select a Universal Coupling with a torque rating 1.5 to 2 times the nominal torque. Our factory provides free sizing assistance for any implement configuration.

Another parameter often underestimated is the grease capacity and relubrication interval. Our Universal Coupling incorporates enlarged grease reservoirs that hold 60% more lubricant than standard designs. This extends service intervals from every 8 hours to every 50 hours under normal conditions. Regular maintenance of these parameters ensures that your Universal Coupling outlasts the implement itself. At Raydafon Technology Group Co.,Limited, we believe that providing transparent technical specifications is part of our commitment to precision agriculture.

How Can Proper Lubrication and Sealing Extend the Life of Your Universal Coupling?

Even the most robust Universal Coupling will fail prematurely without correct lubrication management. Agricultural environments are particularly challenging because dust, chaff, and moisture try to breach the seals. Our factory has analyzed over 2000 field failure cases, and 73% of premature Universal Coupling failures were related to lubrication starvation or contamination. Therefore, a proactive lubrication strategy pays for itself many times over. Here we present a systematic approach to extend the operational life of your Universal Coupling by 3x to 5x.

• Select the right grease: Use NLGI #2 lithium complex grease with extreme pressure (EP) additives and a dropping point above 260°C. Molybdenum disulfide (MoS2) is recommended for heavy load applications. Never mix different grease bases (e.g., lithium with calcium) as this can harden the grease and block the needle rollers.
• Establish a greasing schedule based on hours vs. days: For a Universal Coupling working 8 hours daily in dry dusty fields, lubricate every 40 operating hours. For wet muddy conditions, every 20 hours. For heavy tillage with continuous high angles, every 10 hours. Our factory recommends installing a standard grease fitting with a dirt proof cap.
• Proper purging procedure: When greasing, rotate the Universal Coupling to align the bearing cups with the grease inlet. Pump grease until fresh lubricant emerges from all four seal lips. This purges contaminated old grease and water. Under greasing is as harmful as over greasing – stop when you see clean grease exiting.
• Inspect seal integrity before each season: Damaged or hardened seals allow abrasive dust to enter the bearing area. Our Universal Coupling uses double lip seals with a wear indicator. If the lip shows cracks or the spring garter is missing, replace the seal kit immediately.

In addition to routine greasing, consider retrofit automatic lubrication systems for high usage implements like round balers. Our factory has tested that continuous auto lubrication can increase Universal Coupling bearing life by 200% because it maintains a microscopic film between needles and raceways. Another best practice is to store implements with the Universal Coupling in a straight position (0 degrees) to prevent grease displacement to one side. For winter storage, we advise regreasing with a rust inhibiting compound before parking.

Raydafon Technology Group Co.,Limited also provides a unique feature on our Premium series Universal Coupling: a transparent end cap that allows visual inspection of grease condition. This innovation helps operators quickly detect water ingress or blackened grease (signs of overheating). Data from our factory’s fleet monitoring shows that visual inspection combined with regular lubrication reduces sudden coupling failures by 87%. Remember that a well maintained Universal Coupling will not only save replacement costs but also prevent damage to the PTO driveline of your tractor. We offer a comprehensive lubrication guide poster with every Universal Coupling purchase, because our mission is to maximize your uptime.

Frequently Asked Questions (FAQ)

Question 1: How can a Universal Coupling handle both high torque and misalignment without breaking?

Answer: A Universal Coupling uses a cruciform shaped cross with four hardened trunnions, each supported by a set of needle bearings inside a bearing cup. The needle rollers allow low friction rotation even when the yokes are at an angle. Simultaneously, the cross material (typically alloy steel with case hardening) resists shear and bending stresses from torque transmission. High quality Universal Couplings like those from Raydafon Technology Group Co.,Limited incorporate crowned needle rollers that avoid edge loading, distributing stress evenly. This dual function of bearing and shaft is what permits misalignment up to 25 degrees while transmitting torque up to 3800 Nm without plastic deformation.

Question 2: What maintenance steps are critical to prevent a Universal Coupling from seizing during harvest season?

Answer: To prevent seizure, follow a three step protocol: First, grease the Universal Coupling every 20 working hours using a high quality EP lithium grease, ensuring that old grease purges out from all four seals. Second, before each season, disassemble the coupling and inspect the cross for any pitting or discoloration. Third, verify that the dust shields and seals are intact. If you operate in muddy conditions, clean the exterior of the Universal Coupling daily to prevent abrasive buildup near the seals. Our factory also recommends marking the yoke orientation to ensure reassembly in the same phase, maintaining balance. A seized coupling often results from water ingress and rust; therefore storing implements under cover is equally important.

Question 3: How does the working angle of a Universal Coupling affect PTO power efficiency?

Answer: The working angle directly influences power transmission efficiency and vibration level. At small angles (below 5 degrees), a Universal Coupling transmits nearly 99% of input power with negligible vibration. As the angle increases to 15 degrees, efficiency drops to approximately 96% due to added friction in the needle bearings and secondary couple forces. At 25 degrees, a typical Universal Coupling transmits 92 94% of power. However, our advanced Constant Velocity (CV) Universal Coupling maintains 98% efficiency even at 30 degrees. For most PTO implements, we recommend keeping the operational angle below 20 degrees to avoid excessive heat generation. Efficiency loss translates into higher fuel consumption per acre, so periodic adjustment of hitch geometry is advised.

Question 4: Can I replace a worn Universal Coupling with any brand, or do I need specific dimensions?

Answer: No, you must match specific dimensional parameters: the cross journal diameter, bearing cup diameter, overall length (block to block), spline size and number of teeth, and the locking method (bolt or spring pin). Using an incompatible Universal Coupling leads to poor fit, accelerated wear, and potential driveline separation which is hazardous. Our factory at Raydafon Technology Group Co.,Limited provides a cross reference database covering over 3000 OEM part numbers. We recommend measuring the existing coupling using a digital caliper: measure cup diameter (mm), length across yokes, and journal diameter. Send these dimensions to our technical team, and we will supply the exact match Universal Coupling with upgraded metallurgy. Never force a mismatched coupling as it can damage the PTO stub or implement gearbox.

Question 5: What are the signs that a Universal Coupling is about to fail, and how to avoid downtime?

Answer: Early warning signs include a squeaking or clicking noise when turning, vibration that increases with PTO speed, visible rust streaks around the bearing caps, and grease leakage without any fitting issue. Also, if you notice play when trying to rotate the yokes by hand (more than 2mm radial movement), the needle bearings are worn. To avoid downtime, keep a spare Universal Coupling on site and perform a weekly visual and audio check during peak seasons. Our factory recommends replacing the coupling at the first sign of cross discoloration (bluing from heat) or any notch feeling during manual rotation. Proactive replacement every 2000 operating hours, even without symptoms, is the most cost effective strategy to protect your implement’s drivetrain. For help selecting the right spare, contact Raydafon for a customized preventive maintenance kit.

Conclusion & Actionable Takeaways: Why Choose Our Universal Coupling for Your Farm

Universal Couplings are the silent workhorses of modern agriculture, directly influencing field efficiency, fuel economy, and equipment longevity. As we have demonstrated, from stress reduction and torque maximization to proper lubrication protocols, every detail matters. Our factory, Raydafon Technology Group Co.,Limited, has spent two decades refining our Universal Coupling product lines to exceed OEM standards. We incorporate forged alloy steel, advanced sealing, and precision balanced assemblies that you can trust in the toughest conditions. Whether you operate a small vineyard tractor or a 300HP tracked combine, there is a Universal Coupling solution that will reduce your total cost of ownership.

Do not wait for a breakdown to disrupt your harvest. Contact our engineering team today to receive a free sizing recommendation and a sample of our premium Universal Coupling. Every order includes a digital maintenance log and lifetime technical support. Upgrade your machinery’s reliability now. Get a quote or request a consultation at Raydafon Technology Group Co.,Limited – your partner in power transmission excellence.
