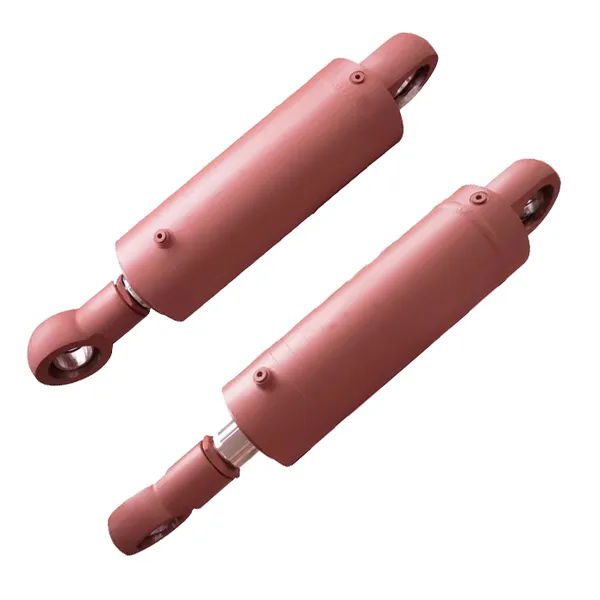

How Does Operating Pressure Impact Hydraulic Cylinder Design?

Raydafon Technology Group Co.,Limited has spent two decades refining the relationship between pressure and cylinder performance. Operating pressure isn't just a number on a spec sheet — it is the primary force that dictates material selection, wall thickness, seal architecture, and even the rod surface treatment. When a hydraulic cylinder faces higher pressure, every component must be reimagined to contain that force safely and efficiently. Our engineers often say that pressure defines the personality of a hydraulic cylinder: low pressure systems prioritize cost, while high pressure designs demand metallurgical expertise and micron-level tolerances.

In practical terms, the question "How does operating pressure impact hydraulic cylinder design?" is answered by examining stress distribution, fatigue life, and fluid dynamics. For example, a cylinder rated at 250 bar requires a barrel with significantly higher yield strength compared to a 100 bar version. Our factory at Raydafon uses finite element analysis to map stress hot spots. In this article we will walk through the exact parameters, material tables, and engineering logic that link operating pressure to a robust hydraulic cylinder design. We will also share real-world lists of how our team customizes cylinders for mining, offshore, and mobile applications.

Why Does Operating Pressure Dictate Material Selection for a Hydraulic Cylinder?

The material of a hydraulic cylinder is the first line of defense against the immense forces generated by pressurized fluid. When operating pressure increases, the stress on the cylinder barrel (hoop stress) and end caps grows linearly. For a cylinder with an internal diameter of 100 mm, raising the pressure from 160 bar to 320 bar doubles the force trying to burst the barrel. Therefore, our factory sources only high-grade steels like E355 or 27SiMn for medium-pressure series, while for extreme pressures (above 400 bar) we move to chromium-molybdenum alloys such as 4140 or 4340, heat-treated to achieve yield strengths exceeding 750 MPa.

Key material properties influenced by pressure

• Tensile strength: Minimum yield strength must exceed the stress induced by maximum operating pressure, considering a safety factor (typically 2.5:1 to 4:1).
• Weldability: High-strength steels often need preheating and post-weld treatment to prevent cracking — critical for pressure holding.
• Hardness: For pressures above 300 bar, the inner surface may require induction hardening to resist micro-welding from contaminants.
• Fatigue endurance: Pressure cycles cause progressive damage; materials with fine grain structure (like those used by Raydafon Technology Group Co.,Limited) resist crack initiation.

Our design team uses the table below as a quick reference during the initial quotation phase. It shows how operating pressure shifts the material grade for a typical 80 mm bore hydraulic cylinder.

Beyond the barrel, the piston rod material also evolves. For a high-pressure hydraulic cylinder, our factory uses induction-hardened 1045 or stainless steel 17-4PH to resist scoring under elevated rod stress. In 2024, Raydafon Technology Group Co.,Limited introduced a proprietary micro-alloyed steel for cylinders operating continuously at 350 bar in mobile applications. This change increased fatigue life by 40% while maintaining machinability. To sum up, the question "why material?" is directly answered by pressure: more pressure requires stronger, tougher, and more fatigue-resistant alloys. Without the right material, a cylinder would either yield or rupture catastrophically.

How to Calculate Wall Thickness Based on Operating Pressure?

Wall thickness calculation is a fundamental step in hydraulic cylinder design, directly driven by operating pressure. The classic formula used in our engineering department is based on the Lame equation for thick-walled cylinders. However, for practical design, we use a simplified version: t = (P × D) / (2 × σ_allow) where P is pressure, D is bore diameter, and σ_allow is the allowable stress of the material (yield strength / safety factor). But this is just the starting point.

At Raydafon Technology Group Co.,Limited, we always apply additional dynamic factors because pressure is rarely static. Impact pressures (pressure spikes) can be 1.5 times the nominal operating pressure. Therefore, our hydraulic cylinder designs incorporate:

• Minimum wall calculations based on peak pressure, not nominal. For instance, a system operating at 250 bar with spikes up to 400 bar forces us to design for 400 bar, then de-rate for cyclic life.
• Outer diameter increments: Standard sizes often have discrete OD steps. Our factory selects the next larger standard tube if the calculated wall exceeds 90% of a standard size, ensuring safety margin.
• End cap thickness: Pressure acts on caps too; we use FEA to determine bolting patterns and cap thickness, often 20-30% thicker than the barrel for high pressure
•


Step-by-step approach inside our factory

As you can see, operating pressure triggers a chain of calculations that include dynamic loading, manufacturing tolerance, and even heat treatment distortion. Our factory recently delivered a series of hydraulic cylinders for a 500-bar press; the wall thickness exceeded 35 mm for a 160 mm bore, using forged 4340. In that case, every millimeter was justified by Lame analysis and verified by ultrasonic testing. The bottom line: higher pressure forces thicker walls, but intelligent design also considers weight and cost optimization. Raydafon Technology Group Co.,Limited constantly balances these factors to produce compact yet durable cylinders.

What Seal Technologies Are Required for High Operating Pressure?

Seals are the most delicate yet critical components when pressure rises. A hydraulic cylinder relies on seals to contain fluid without leakage, even under extreme pressure and temperature. At low pressures (below 100 bar), simple nitrile O-rings with backups might suffice. But as operating pressure climbs, extrusion becomes the primary threat. The seal material must be hard enough to resist gap extrusion, yet flexible enough to maintain contact. Our engineers at Raydafon Technology Group Co.,Limited utilize polyurethane (PU) and PTFE-based compounds for pressures beyond 250 bar.

Pressure-driven seal selection criteria

• Extrusion gap control: Higher pressure opens microscopic gaps between metal parts. For a 400-bar hydraulic cylinder, we specify anti-extrusion rings (backup rings) made of PEEK or bronze.
• Friction and wear: High pressure increases seal energization; special low-friction coatings like PTFE bronze are applied on piston seals to avoid stick-slip.
• Temperature rise: Pressure causes heat; our factory selects seals rated for continuous operation at 120°C, using HNBR or FKM if oil temperature is high.
• U-cup vs. piston seal: For pressures above 300 bar, we often use a combination of a pressure-energized U-cup and a wear ring to guide the piston.

In the table below, we summarize typical seal arrangements used by our design team, directly correlated with operating pressure ranges:

Additionally, surface finish becomes crucial under high pressure. Our factory demands a rod finish of 0.2 µm Ra for seals to survive at 400 bar. We also apply chrome plating or nitriding to reduce friction. For one recent project at Raydafon Technology Group Co.,Limited, we developed a tandem seal arrangement for a 500-bar hydraulic cylinder used in offshore tensioners; it included four backup rings and a pressure relief groove. Without this dedicated approach, the seal would extrude in seconds. So, operating pressure directly dictates not only the material but the entire architecture of the sealing system, ensuring leak-free performance over millions of cycles.

Summary: Pressure as the Master Variable in Hydraulic Cylinder Design

Operating pressure is the single most influential factor in hydraulic cylinder design. From the choice of high-strength alloy steels to the precise calculation of wall thickness using Lame theory, and from the selection of multi-component PTFE seals to the fatigue analysis of end caps — every decision flows from the question "how many bar?". At Raydafon Technology Group Co.,Limited, we have engineered cylinders for pressures ranging from 50 bar to 700 bar, and each project reaffirms that ignoring pressure effects leads to failure. By respecting pressure through robust materials, intelligent wall sizing, and advanced sealing, we deliver hydraulic cylinders that are both safe and efficient. Our factory integrates pressure data into every CAD model and every quality check, ensuring that the final product withstands real-world conditions. At Raydafon Technology Group Co.,Limited, every hydraulic cylinder we engineer tells the story of pressure mastered. Whether you need a heavy-duty cylinder for mining or a compact unit for industrial automation, our team is ready to support you with 20 years of insight. Contact our factory today.
