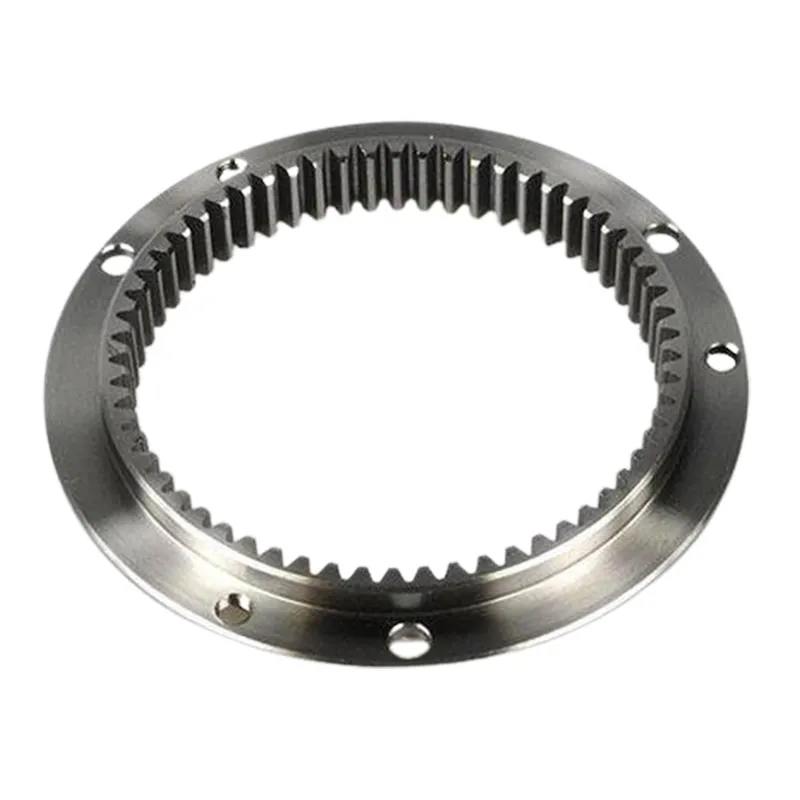

What materials are available for Ring Gears?

Ring Gears are essential components in mechanical transmissions and are widely used in various rotating equipment, such as reducers, gearboxes, and cranes. Their primary function is to convert the rotational direction and speed of the input shaft to that of the output shaft, thereby transmitting power. Different types of ring gears have different characteristics, and different materials are required to ensure optimal transmission performance in different environments and requirements. Let's learn about the different materials available for Ring Gears with Raydafon.

Cast Iron Ring Gears

Cast iron ring gears are a widely used material for ring gears. The graphite structure in cast iron can store lubricant and reduce friction. The advantages of cast iron ring gears are their low price and ease of machining. Common gray cast iron has a Brinell hardness of 180-220 HB, making them suitable for medium loads. However, cast iron ring gears are prone to porosity and defects, and some materials have poor impact resistance. For example, ductile iron QT500-7 has an impact toughness of only 12 J/cm², making them unsuitable for high dynamic loads.

Steel Ring Gear

Steel ring gears can be made from low-carbon steel, medium-carbon steel, and high-carbon steel. They offer advantages such as high hardness and wear resistance, making them suitable for high-load, high-speed, high-precision, and high-temperature operating environments. However, steel metal gears have disadvantages such as high density and high vibration and noise. They are also relatively expensive to manufacture and difficult to process, requiring surface treatment to improve tooth surface hardness.

Copper Alloy Ring Gear

Copper alloy ring gears offer high hardness and excellent wear resistance, making them suitable for high-load transmission applications. Furthermore, due to the metallic properties of copper, they also offer excellent thermal conductivity, vibration damping, and stability. However, copper alloy ring gears are relatively expensive, which increases production costs.

Plastic Ring Gear

Plastic ring gears are primarily made of plastic and offer advantages such as light weight, corrosion resistance, and excellent wear resistance, making them suitable for basic daily use. Due to the low material cost of plastic, plastic ring gears are inexpensive to produce and can be mass-produced using molds. Plastic gear rings have a short service life due to the characteristics of their raw materials and are not recommended for use in extreme environments such as high loads, high temperatures and high pressures.

The following table will help you further understand the differences between these types of ring gears.
