How does the Sanitation Machinery Locking Hydraulic Cylinder work?

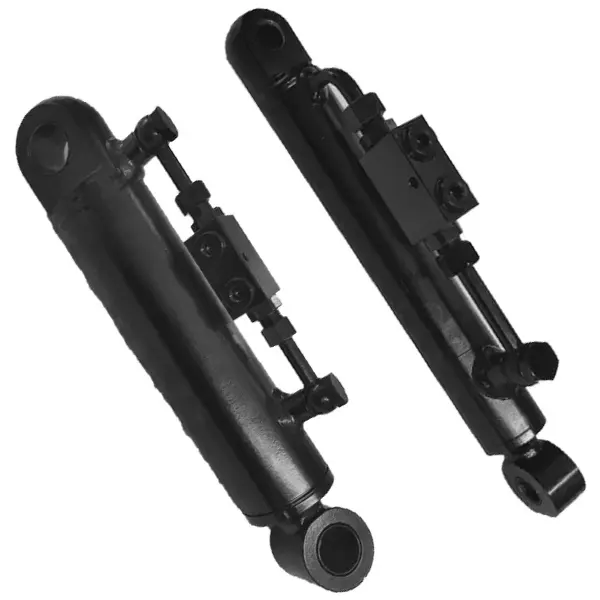

Equipment reliability is paramount in the demanding world of sanitation operations. Downtime means uncollected trash, unsweeped streets, and unhappy community residents. Raydafon's Sanitation Machinery Locking Hydraulic Cylinder is a key component in preventing failures. Designed specifically for the demanding waste management environment, this core component ensures that critical mechanisms remain securely locked under immense pressure and vibration. But how does it perform this crucial task so effectively and reliably?

Core Function

Hydraulic Actuation: Like most hydraulic cylinders, Sanitation Machinery Locking Hydraulic Cylinder uses pressurized hydraulic fluid to generate controlled linear force and motion. This hydraulic power is applied directly to the cylinder bore, acting on the piston.

Reliable Mechanical Locking: This is its defining characteristic. Once the cylinder rod reaches the fully extended position, a robust internal mechanism physically prevents any retraction, even in the event of hydraulic pressure loss or fluctuations. This guarantees absolute zero displacement, which is crucial for safety and performance.

Operating Principle

1. Retraction:

Pressurized hydraulic fluid is injected into the rod side of Sanitation Machinery Locking Hydraulic Cylinder bore.

This fluid forces the piston inward, retracting the rod.

During this phase of motion, the locking mechanism remains disengaged. The compactor blade or container door opens to allow waste to be loaded.

2. Extend and Lock Engagement:

Hydraulic oil pressure is switched and directed to the head side of the cylinder bore.

This pressurized oil pushes the piston outward, forcefully extending the piston rod.

When the piston rod nears its fully extended position, a precisely machined feature on the piston rod engages a matching internal locking element within the cylinder housing.

3. Secure Hold:

The mechanical lock securely engages, securing critical hygienic components.

This ensures that the tremendous compacting force can be safely applied and that the container remains securely closed during transport, even over rough terrain and capable of withstanding severe vibration and shock loads. Fluctuations in hydraulic pressure or potential system leaks cannot disengage the lock.

4. Unlock and Retract:

Hydraulic pressure on the head side is slightly increased, and hydraulic pressure is simultaneously applied to a specific unlocking port within Sanitation Machinery Locking Hydraulic Cylinder.

This unlocking pressure acts directly on the locking mechanism, overcoming any friction or residual load.

The locking element is forced radially inward, disengaging from the hardened collar/taper on the rod. Once disengaged, pressure on the rod side allows the piston and rod to freely retract back into the cylinder bore, resetting the cycle.
