Replacement of TGL Drum Shape Gear Coupling

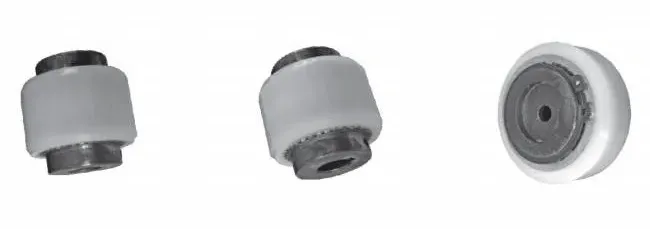

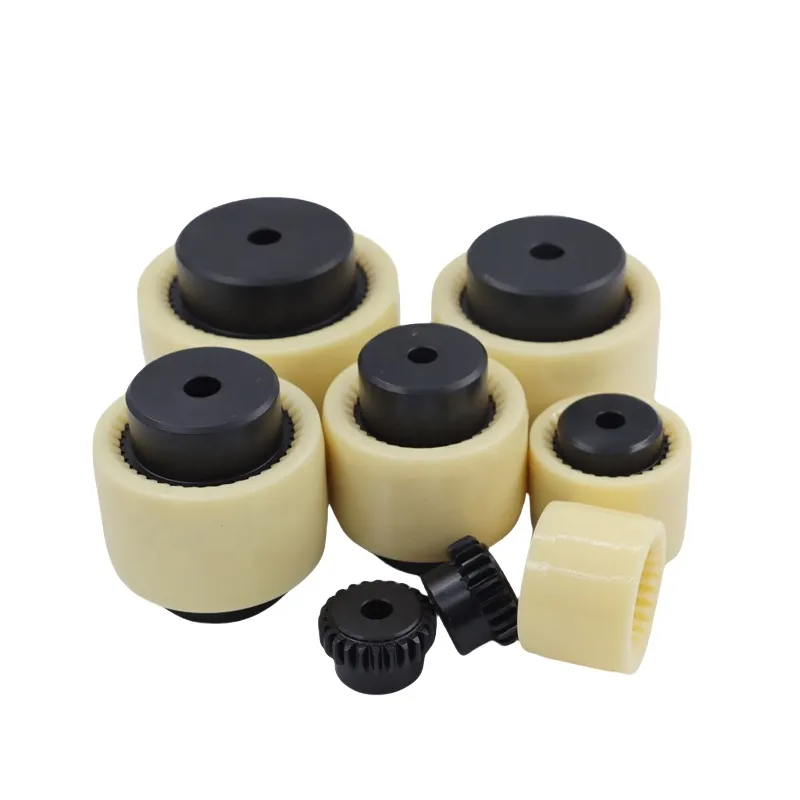

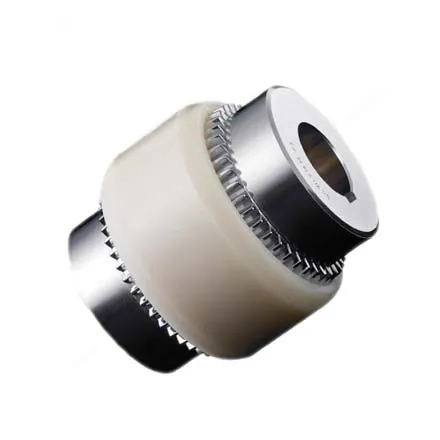

Raydafon’s TGL Drum-Shaped Gear Coupling is built specifically for high-torque power transfer in industrial gear. Think oil pumps, textile machines, small conveyors—any gear where reliable torque delivery matters, this coupling steps up.

What makes this nylon drum-shaped gear coupling stand out? Two key bits: its drum-shaped teeth and nylon sleeve. The drum-shaped design lets it handle up to 1.5 degrees of angular misalignment (super handy for real-world installation tweaks), while the nylon sleeve boosts both flexibility and toughness. On specs? It pulls 10 N·m to 2500 N·m of torque, with bore sizes from 14 mm to 125 mm—so it works just as well for small, precise setups as it does for mid-range power jobs.

Under the hood, it’s a mix of steel hubs and high-strength nylon. That combo means great shock absorption (no more jolts messing with performance) and built-in self-lubrication—no need to stop and re-oil constantly. No wonder it’s a favorite for industrial machinery-specific drum-shaped gear couplings, especially as a flexible drum-shaped gear coupling for oil pumps. Oil pumps vibrate and often have tiny alignment gaps; this coupling smooths all that out, keeping the oil system running steady.

Thanks to Raydafon’s tight manufacturing standards, it runs quiet—no loud hums disrupting the shop floor. And it holds up in light to medium-load jobs, day in and day out. Maintenance? A breeze. The nylon sleeve resists corrosion and handles temps from -20°C to +80°C, so you skip the frequent lube checks. That cuts down on upkeep costs, big time.

It’s ISO 9001-certified, made right here in China by Raydafon, and comes in every model from TGL1 to TGL12—perfect for metallurgy, textiles, you name it. Need something tailored? They’ll customize bore sizes and torque ratings, so you get a bespoke nylon drum-shaped gear coupling that fits your exact setup. For textile folks, it’s also a top pick as a low-maintenance drum-shaped gear coupling for textile machines—less downtime, more productivity, and a solution that doesn’t break the bank.

Product Specification

Core Advantages

As Raydafon's core product in the industrial transmission field, the TGL Drum Gear Coupling is specifically designed to address the challenges of efficient and stable mechanical power transmission. It combines flexible adaptability, structural strength, and transmission precision to withstand the demanding operational requirements of modern industrial environments. As a highly recognized flexible drum gear coupling solution in the industry, we incorporate numerous advanced technologies into its design to ensure stable operation under complex and changing operating conditions.

The most striking advantage of the TGL Drum Gear Coupling is its exceptional torque transmission capacity. This high-torque drum gear coupling maintains efficient transmission even under extremely heavy loads. It is particularly suitable for heavy machinery with high power demands and extremely high requirements for continuous and stable operation, such as steel rolling equipment in the metallurgical industry and crushers in the mining industry. It fundamentally prevents production interruptions caused by coupling failure.

Another key feature is its exceptional adaptability to installation misalignment. TGL's highly compensated drum gear coupling structure flexibly accommodates various misalignments, including angular, parallel, and axial misalignment. This effectively reduces the stress on connected equipment components and significantly reduces wear and tear over long-term operation. This is particularly critical in the transmission systems of high-speed rotating equipment such as fans and pumps, significantly improving the operational stability of the entire system.

TGL's drum gear couplings are exceptionally durable. We utilize high-strength, corrosion-resistant, high-quality materials and employ precision machining techniques to create industrial-grade, durable drum gear couplings. Even in harsh operating conditions such as high temperatures and high dust levels, core components like the drum gear hub maintain stable performance. This significantly extends the coupling's service life while reducing the costs and downtime associated with frequent maintenance.

Furthermore, TGL's drum gear couplings offer significant advantages in ease of installation and maintenance. Its modular design allows for simple and efficient assembly and disassembly. Its integrated lubrication system minimizes daily maintenance, making it a prime example of a low-maintenance drum gear coupling. This advantage improves operational efficiency for applications ranging from production line transmission in the manufacturing industry to generator set support in the energy sector.

Overall, the TGL drum gear coupling, with its multiple advantages including high torque transmission, high misalignment compensation, strong environmental adaptability, and convenient operation and maintenance, is a powerful transmission tool suitable for a wide range of scenarios, helping users across various industries enhance equipment reliability and effectively improve production and operational efficiency.

Application Scenarios

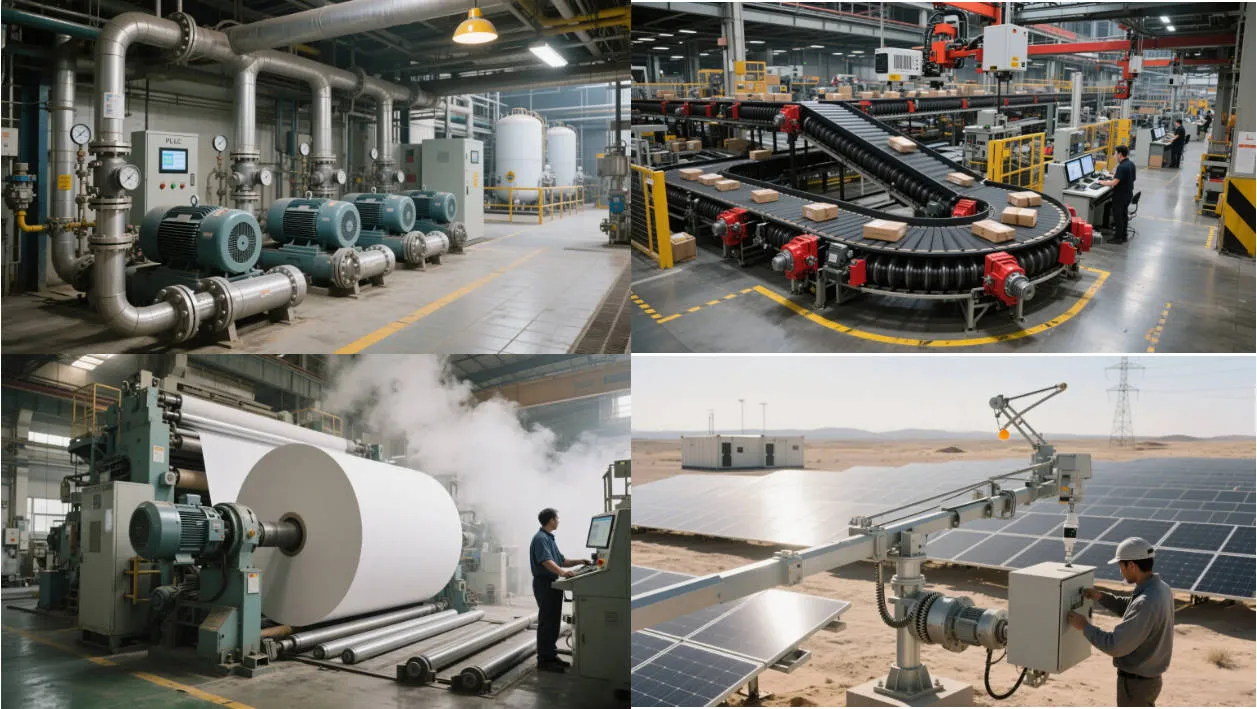

The TGL drum-shape gear coupling is no ordinary mechanical connection component; rather, it serves as a highly adaptable "power bridge" in industrial transmission systems. Its core value lies in its ability to not only transmit torque stably but also flexibly resolve various misalignment issues that occur during equipment operation—making it highly favored in industrial scenarios where high transmission precision and stability are required. With its robust structural design, this flexible drum-shape gear coupling maintains efficient transmission even under continuous load conditions, becoming an indispensable key component in many production lines.

In heavy-load industrial sectors such as mining and metallurgy—where equipment operates under extremely high torque—the TGL drum-shape gear coupling often functions as a high-torque drum-shape gear coupling for mining applications, undertaking the task of connecting shaft systems in core equipment like crushers and ball mills. When faced with enormous dynamic loads and high-frequency vibrations, it not only transmits power stably but also mitigates impacts caused by shaft misalignment through its structural design, fundamentally reducing the risk of equipment failure due to misalignment and ensuring 24/7 continuous operation of production lines.

The TGL drum-shape gear coupling is also widely applied in fluid conveying processes within the chemical and petrochemical industries, particularly suitable for various pumps and compressors. As a flexible drum-shape gear coupling for corrosion-resistant working conditions, it operates stably in acidic and alkaline environments: on one hand, it absorbs impact loads during equipment startup and operation; on the other hand, it compensates for thermal expansion and contraction of shaft systems caused by changes in medium temperature. This effectively extends the service life of key equipment such as centrifugal pumps and reciprocating compressors, reducing maintenance costs under high-pressure operating conditions.

Conveyor systems in logistics, warehousing, and manufacturing are also among the "primary battlefields" for TGL drum-shape gear couplings. In the transmission systems of belt conveyors and chain conveyors, it transforms into a drum-shape gear coupling with high misalignment compensation capability, easily addressing shaft misalignment issues caused by uneven material accumulation and slight frame deformation, while ensuring stable power transmission to conveyor drums. This feature significantly reduces the frequency of shutdowns for conveyor maintenance, enabling more efficient material flow in production lines.

Even in the new energy sector, the TGL drum-shape gear coupling demonstrates unique advantages. In the drive mechanisms of solar tracking systems and the transmission chains of small-scale wind turbines, it acts as a precision-adjustable drum-shape gear coupling. Through its micro-angle compensation capability, it corrects minor misalignments during equipment operation and adapts to intermittent torque fluctuations caused by fluctuations in wind and solar resources—helping to improve energy conversion efficiency and ensuring more stable and reliable operation of the entire new energy system.

The application scenarios of TGL drum-shape gear couplings continue to expand, from conveyor rollers in automotive assembly lines to paper machine transmission systems in paper mills. Relying on its two core advantages—"high durability" and "easy integration"—it adapts to the personalized transmission needs of different industries. It can be said that whenever industrial production requires torque transmission and resolution of shaft misalignment, this multi-scenario adaptable TGL drum-shape gear coupling comes into play, helping enterprises improve production efficiency and reduce the overall cost of equipment operation and maintenance.

About Raydafon

In the domestic mechanical transmission component market, Raydafon is a manufacturer firmly established through its reputation for quality products. We specialize in mechanical and hydraulic transmission components, including core products such as planetary gearboxes, PTO power take-off shafts, chain sprockets, hydraulic cylinders, fluid couplings, helical gearboxes, and agricultural machinery gearboxes. Each product is developed and manufactured with the twin goals of durability and efficiency in mind. As a long-established domestic coupling manufacturer, our heavy-duty drum gear couplings are particularly popular in mining and metallurgical industries. After all, these environments place high demands on equipment operating constantly, placing extremely high demands on coupling durability. Our product is designed to withstand strong impacts and provide stable, long-term force transmission.

Since we began designing transmission components in 2008, 16 or 17 years have passed. Raydafon has long since expanded beyond the domestic market, now exporting a significant number of couplings worldwide. Many overseas customers use equipment from international brands like Lovejoy. When replacing parts later, they often worry about the original being too expensive or incompatible with aftermarket parts. Our purpose-built Lovejoy replacement gear couplings address this pain point. They offer dimensions and mounting interfaces identical to the originals, while maintaining efficient power transmission and being priced nearly 30% lower, making them the preferred replacement for many customers. Furthermore, for high-torque equipment commonly found in heavy industry, our industrial-grade high-torque gear couplings feature tooth-surface reinforcement. Not only do they transmit power with zero loss, but they also automatically compensate for even minor misalignments during installation, eliminating the need for workers to repeatedly adjust the equipment, significantly reducing the workload.

The biggest fear in product development is a one-size-fits-all approach. Equipment operating conditions vary significantly across industries, so couplings naturally require customization. For example, the drive shafts of wind turbine equipment can experience various angular, parallel, and axial misalignments during operation. Ordinary couplings will quickly wear out. Our specially developed multi-directional compensating gear couplings utilize a unique tooth structure and cushioning design to absorb these misalignments. These couplings are currently used in the auxiliary equipment of several domestic wind turbine projects. In addition to these specialized gear couplings, we also offer other types of couplings, such as claw, star, and diaphragm. We offer suitable models for applications ranging from light industrial assembly lines to large-scale heavy industrial units. Our pricing consistently adheres to the principle of "high quality at an affordable price," which is why our global customers continue to partner with us.

Now backed by the Ever-Power Group, Raydafon's production capabilities are even stronger than before. Our agricultural machinery gearboxes achieve precision to the 0.01 mm level, our worm reducers maintain noise levels below 60 decibels, and even small components like sprockets and roller chains undergo three quality inspections before leaving the factory. In the coupling sector, we've long since moved beyond being a single parts supplier and are now transforming into a complete gear coupling solutions provider. Upon request, we not only provide the right coupling, but also offer installation and commissioning guidance, ongoing maintenance plans, and even custom development tailored to specific operating conditions. Ultimately, our goal isn't just to sell products; we want to make our transmission components less of a hassle for our global customers. This has been Raydafon's unwavering commitment for years.
