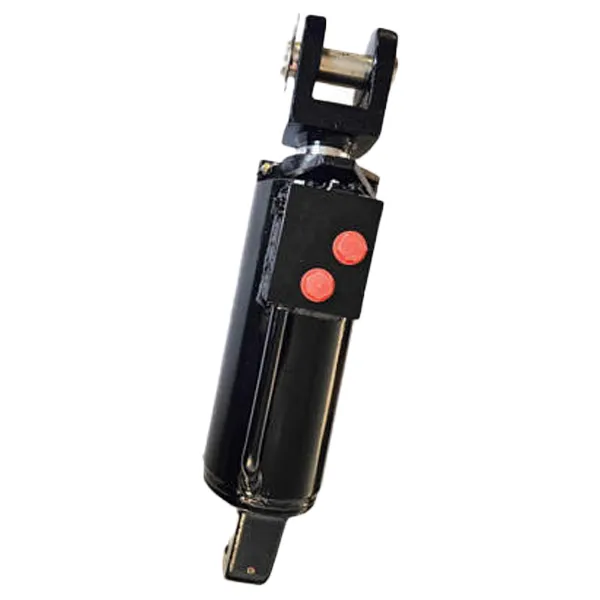

EP-FS2604.55D4.010a Hydraulic Lift Cylinder

The EP-FS2604.55D4.010a Hydraulic Lift Cylinder from Raydafon—this one’s built to handle the heavy lifting, no ifs, ands, or buts. You’ll find it hard at work in forklifts, scissor lifts, and those big industrial material handlers that move pallets and crates all day long. It doesn’t just push hard; it pushes steady, so even when the load’s maxed out, the movement stays smooth—no jerking, no sudden drops, just reliable action when you need it most.

We made it with tough stuff: high-strength steel that won’t bend under pressure, and every part’s machined to fit tight, so there’s no slop or play. That’s why it’s a standout as a hydraulic lift cylinder for forklifts, where it has to hoist heavy loads shift after shift, or as a hydraulic lift cylinder for scissor lifts, lifting workers and gear up to high platforms without a wobble. It’s not just about power—it’s about lasting power. This thing’s built to stick around, even in dusty warehouses or busy loading docks.

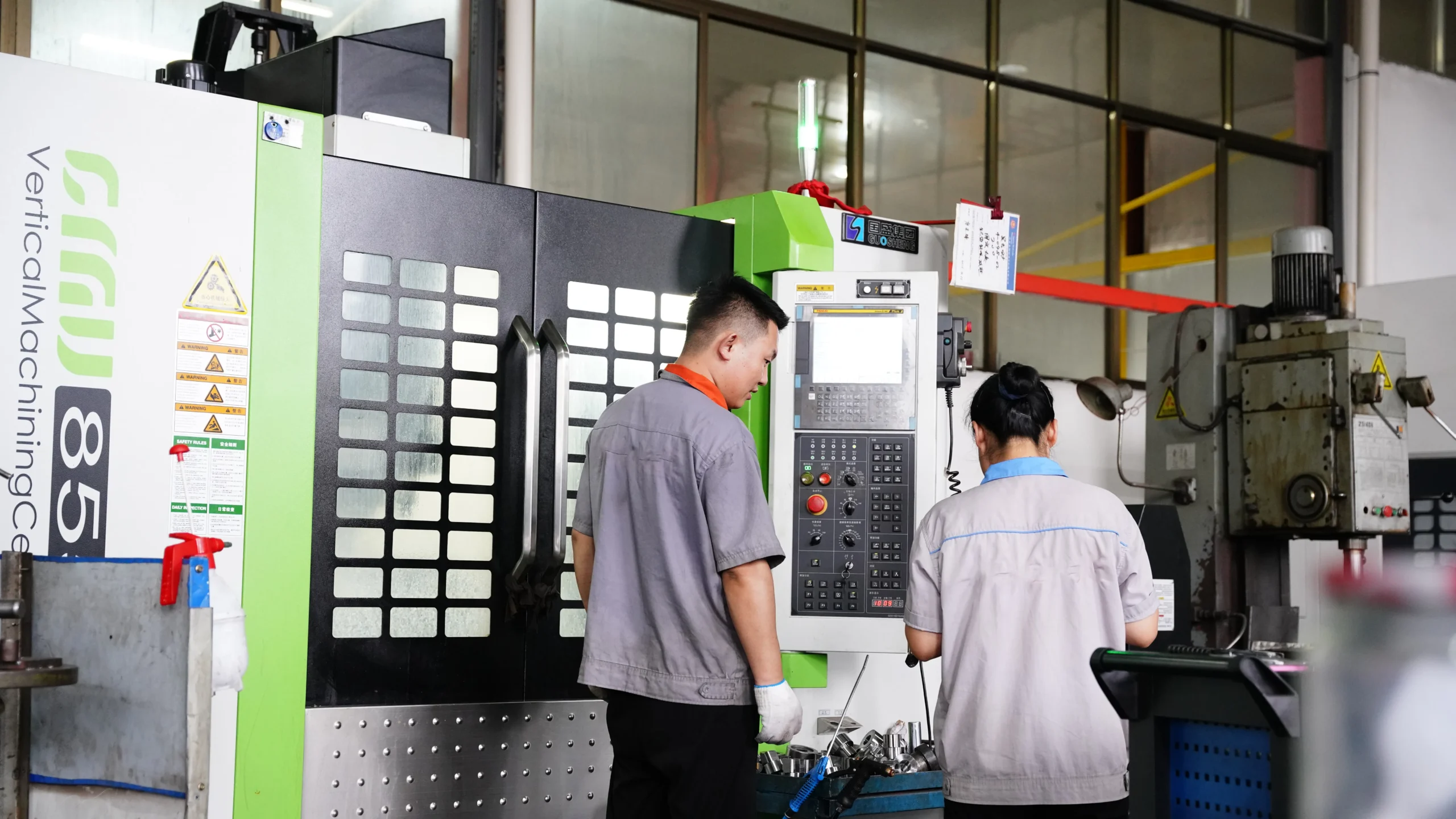

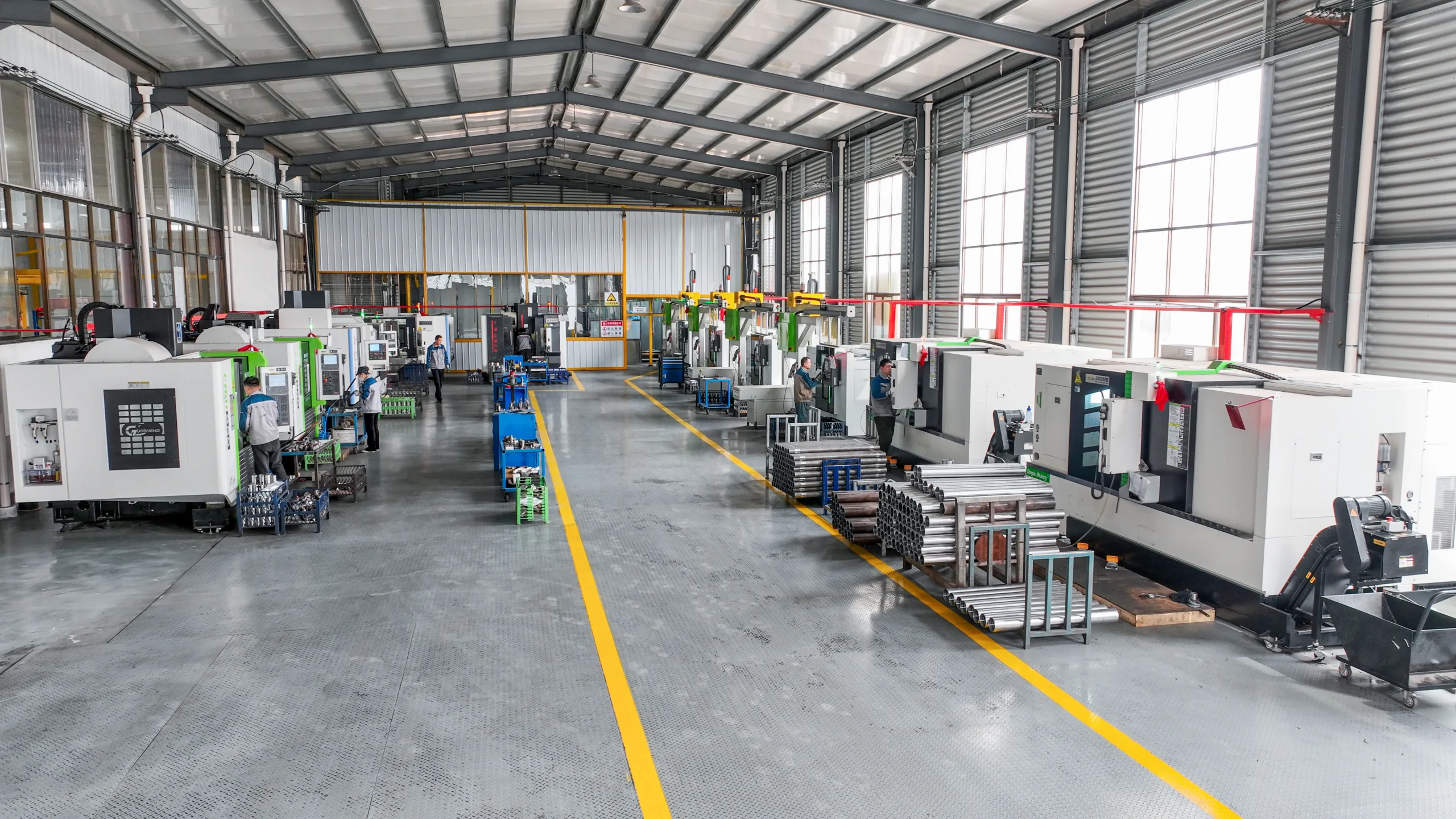

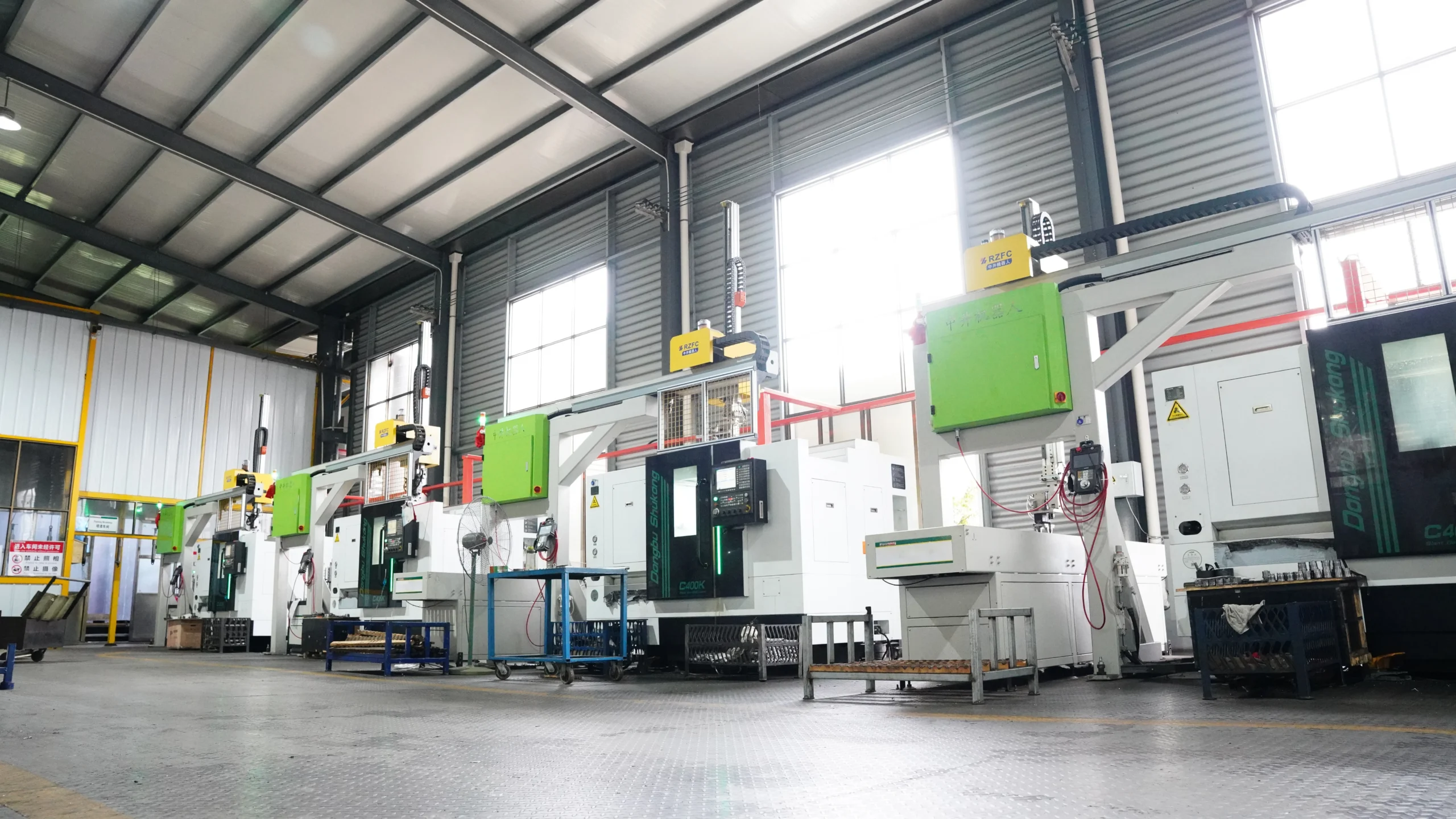

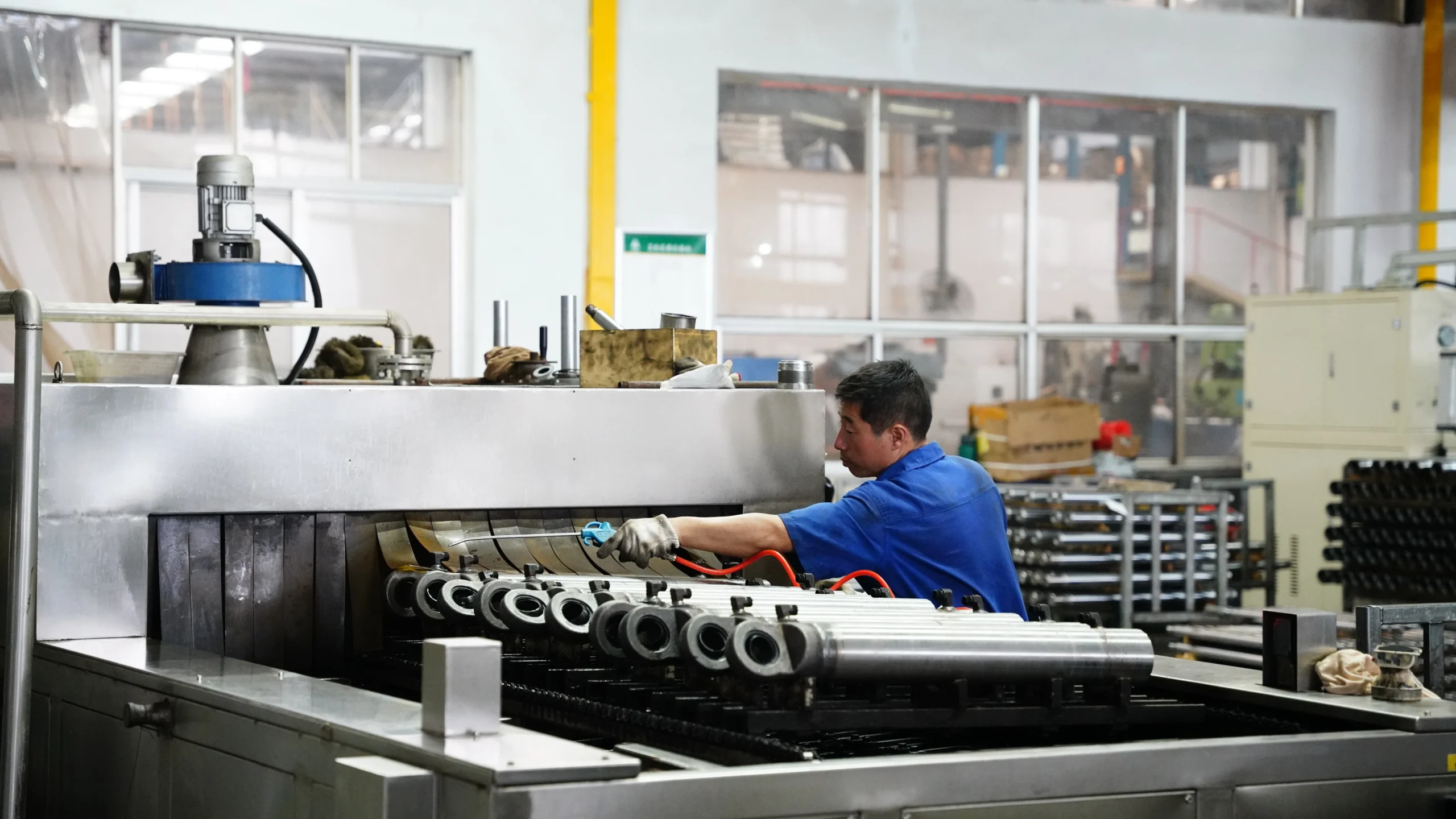

Our factory in China uses some of the best equipment around to make these, but we don’t get stuck on “one size fits all.” Need a longer stroke? A different mounting bracket? We can tweak it to fit your machine—no extra hassle. And the price? It’s fair. We think a heavy-duty hydraulic lift cylinder that won’t let you down shouldn’t cost an arm and a leg. Whether you’re replacing an old cylinder or building a new system, the EP-FS2604.55D4.010a is the kind of workhorse that keeps your equipment running strong, day in and day out.

Technical Specifications

Application Areas

The EP-FS2604.55D4.010a isn’t just a part—this thing’s a workhorse, built to thrive where other cylinders would give up. When the job’s rough and reliability can’t be compromised, this heavy-duty hydraulic lift cylinder steps up, holding its own in industries that tear through weaker parts like they’re nothing.

Take forestry gear, for example. Out in the woods, harvesters are yanking thick trunks, swinging felling heads, and dealing with all kinds of twists and sudden hits. But the EP-FS2604.55D4.010a? It’s a rugged hydraulic lift cylinder for forestry machinery that takes that abuse in stride. Grapples stay clamped tight, felling heads move right where they need to, even when branches whip around or logs slam into place. No stalling, no giving out—just steady work.

Demolition yards and recycling sites are even wilder. Hydraulic shears slicing through steel rebar, breakers smashing concrete, pulverizers grinding up debris—these tools need a hydraulic lift cylinder that can handle the violent shocks, over and over. This cylinder steps in as the main muscle for that heavy gear, soaking up every jolt from a cut or crush without flinching. It keeps the job moving, no matter how chaotic the yard gets.

Mining and quarry sites? They’re a endurance test. Big excavators and loaders dig through rock, haul ore, and scrape at gritty terrain all day, under extreme weight. The EP-FS2604.55D4.010a, as a tough hydraulic lift cylinder for mining equipment, powers the boom, arm, and bucket here. It resists the wear from all that grit and grime that would wreck weaker cylinders. Shift after shift, even with dust thick in the air, it keeps going.

Offshore and drilling work brings its own headaches: saltwater, nonstop humidity, and the need to lift, tension, or position gear with pinpoint accuracy. Here, if it rusts or fails, everything stops. But this marine-grade hydraulic lift cylinder holds its ground. It stands up to the salty air and water, making sure critical jobs—hoisting heavy drilling parts, keeping equipment steady in rough seas—never miss a beat.

In all these brutal spots, the EP-FS2604.55D4.010a doesn’t just do the job. It shows why it’s the hydraulic lift cylinder you reach for when failure isn’t an option—because out here, there’s no room for second-best.

Types of Hydraulic Lift Cylinder

Hydraulic lift cylinders aren’t one-size-fits-all—they come in different setups, each built to handle specific jobs, whether it’s lifting heavy loads on a construction site, moving gear in a warehouse, or fitting into tight spaces on a truck. At Raydafon, we’ve got a range that covers everything from straightforward vertical lifts to tough, space-saving designs.

Take the single-acting hydraulic lift cylinder, for example. It’s simple: hydraulic pressure pushes the piston up, and gravity or a spring pulls it back down. No extra frills, just reliable action. You’ll find these on things like tail lifts for delivery trucks or those portable scissor tables in warehouses—places where you don’t need fancy controls, just a cylinder that lifts when you need it and drops back easy.

Then there’s the double-acting hydraulic lift cylinder. This one uses pressure to push and pull, so you get precise control over both lifting and lowering. It’s the go-to for aerial work platforms that need to hover steady, car lifts in garages that have to lower vehicles gently, or industrial elevators moving parts between floors. No relying on gravity here—every movement’s powered, which means smoother, more consistent results.

Telescopic hydraulic lift cylinders are the space savers. They’ve got nested stages, like a telescope, so they can stretch out long but tuck away small when not in use. Perfect for dump trucks, where you need a long stroke to tip the bed but don’t have room for a huge cylinder. They’re also great for compact lift systems that need to reach high but stay small when folded up.

Tandem hydraulic lift cylinders are all about brute force. They stack two or more pistons in a row inside one cylinder, so you get more lifting power without making the cylinder wider. Good for heavy machinery platforms that need to hoist really big loads slowly—think industrial lifts moving steel beams or high-weight vertical hoists that can’t afford to skimp on strength.

And when off-the-shelf just won’t cut it, there’s the custom hydraulic lift cylinder. Maybe your machine has weird mounting points, needs a super-long stroke, or has to work in extreme heat or cold. We’ll build one that fits—adjust the mounts, tweak the stroke, use special seals or rust-resistant materials. No job’s too specific; if your equipment needs a cylinder that’s made just for it, we’ll make it happen.

Each type has its place, but the key is picking the one that matches what your gear actually does. Whether it’s a simple single-acting for a tail lift or a custom job for a one-of-a-kind machine, we’ve got the right hydraulic lift cylinder for the task.

About Raydafon

We’re all about solving real problems for modern machinery, no fancy promises, just solid hydraulic solutions that hold up when the going gets tough. Our production stays consistent, our designs stay practical, and that’s why our rugged hydraulic lift cylinders keep working hard, whether they’re on a farm, a construction site, or a rough off-road vehicle.

We make parts for all kinds of industries: farm equipment that tills fields, construction gear that lifts steel, forklifts moving pallets, ships navigating seas, and off-road vehicles tackling mud and rocks. Our lineup covers it all—precision steering hydraulic cylinders that keep forklifts steady, double-acting hydraulic cylinders that push and pull with equal force, and heavy-duty hydraulic lift cylinder setups built for the most stressful jobs. No matter what your machine does, we’ve got something that fits.

Quality isn’t an afterthought here. We stick to ISO 9001 and ISO/TS 16949 standards like they’re the rulebook, so every OEM hydraulic cylinder that leaves our shop meets the strictest industry rules. It’s not just about checking boxes—we want you to trust that your machinery will run strong, year after year. Whether you’re building a new machine or fixing an old one, our parts hold up.

What really sets us apart is how we customize. Need a hydraulic lift cylinder with a specific bore size? We’ll make it. A longer stroke for a dump truck? No problem. Different mounting or a special surface treatment to fight rust? We’ve got you. Our engineers have been at this a long time, so whether you’re an OEM building a new model or just need a replacement hydraulic lift cylinder for an old piece of equipment, we’ll make sure it fits like it was made for your machine.

Our parts are used in over 30 countries now—helping farmers plant crops, logistics teams move goods, ships stay on course, and off-road vehicles get the job done. We’ve become a go-to hydraulic lift cylinder supplier because we keep it simple: good parts, honest service, and no hassle. At Shandong Everpower, we’re here to give businesses cylinders that don’t quit—so your equipment can keep running, day in and day out, for years to come.
