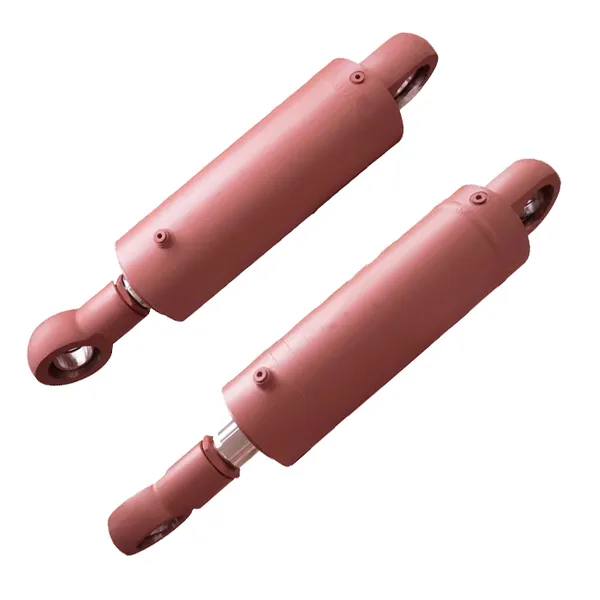

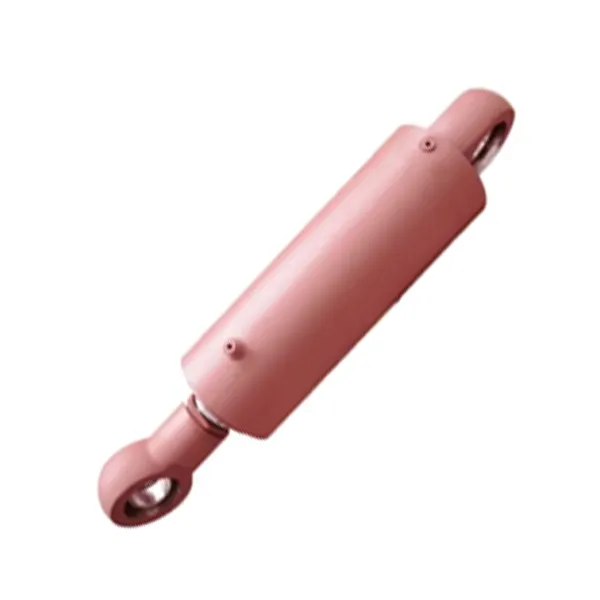

Raydafon is a China-based factory-direct manufacturer and supplier of sanitation machinery reverse thrust hydraulic cylinders. This cylinder is built as the core power unit for garbage compactors, material pushing equipment, street sweepers and river dredging ships. Standard model LPE222.2.2-5-00 delivers up to 2500 kN reverse thrust with a patented two-stage piston, 16 MPa working pressure, Φ220 mm bore and 420 mm stroke. The high-strength alloy body, 1200 MPa tensile strength and quadruple composite sealing system are designed for landfill leachate, snow-melting agents and pH 2-12 corrosive liquids. Custom bore, stroke, installation distance, oil port rotation, low-temperature versions and private label are supported. Send your drawing number, required quantity and destination port to request a quotation.
Sanitation equipment works under constant pressure. Garbage compactors must compress wet waste with high moisture content. Material pushing equipment handles sludge, masonry and mixed loads. Street sweepers and river dredging ships work with vibration, corrosion and long duty cycles. A standard hydraulic cylinder may lose thrust, corrode early or leak oil in these conditions.
Raydafon builds this sanitation machinery reverse thrust hydraulic cylinder as a dedicated power unit for these environments. The patented two-stage piston reaches up to 2500 kN reverse thrust, about 30% higher than ordinary cylinders. In garbage compression, it raises compression density from about 200 kg/m³ to 350 kg/m³, which can add roughly 2 tons of payload per truck. The cylinder body is forged from high-strength alloy through seven forging steps and precision heat treatment, reaching 1200 MPa tensile strength. A quadruple composite sealing system resists pH 2-12 corrosive liquids such as landfill leachate and snow-melting agents.
For buyers comparing suppliers, Raydafon offers factory-direct pricing, OEM production and stable batch quality. If you also source related cylinders, review the full Hydraulic Cylinder category or the dedicated Garbage Truck Hydraulic Cylinder range. For locking rather than pushing functions, see the Sanitation Machinery Locking Hydraulic Cylinder.
The standard reverse thrust cylinder below covers common garbage compactor and material pushing equipment. If your equipment uses a different mounting pattern, send the OEM drawing number or a physical sample for reverse engineering and custom production.

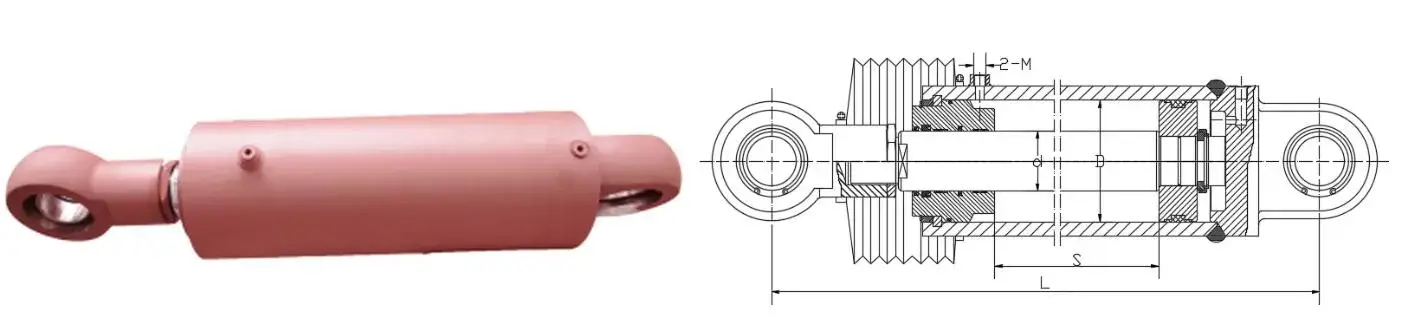

| Cylinder Name | Drawing Number | Bore Diameter D | Rod Diameter d | Stroke S | Installation Distance L | Working Pressure | Interface M | Weight |
|---|---|---|---|---|---|---|---|---|
| Reverse thrust cylinder | LPE222.2.2-5-00 | Φ220 mm | Φ110 mm | 420 mm | 1110 mm | 16 MPa | 2-M22×1.5 | 323 kg |
Need a different bore, stroke, installation distance or port rotation? Raydafon can produce a custom reverse thrust hydraulic cylinder against your drawing. For related forklift hydraulic systems, see the Forklift Hydraulic Cylinder range.
Patented two-stage piston reaches up to 2500 kN, about 30% higher than ordinary cylinders. Compression density rises from about 200 kg/m³ to 350 kg/m³, adding roughly 2 tons payload per truck.
High-strength alloy body processed through seven forging steps and precision heat treatment reaches 1200 MPa tensile strength. Quadruple composite sealing resists pH 2-12 liquids including leachate and snow-melting agents.
About 35% smaller than traditional models, fitting narrow-body sanitation equipment. Oil port position supports customized rotation to match different pipeline layouts.
Forged alloy body and matched sealing system keep thrust stable during continuous compaction and pushing. Low leakage and low wear under high load.
Custom bore, rod, stroke, installation distance, oil port rotation, low-temperature version for cold regions and private label are supported.
Produced in Raydafon's own plant. Customers deal with the manufacturer, not a trader. Stable batch quality and fast after-sales response.

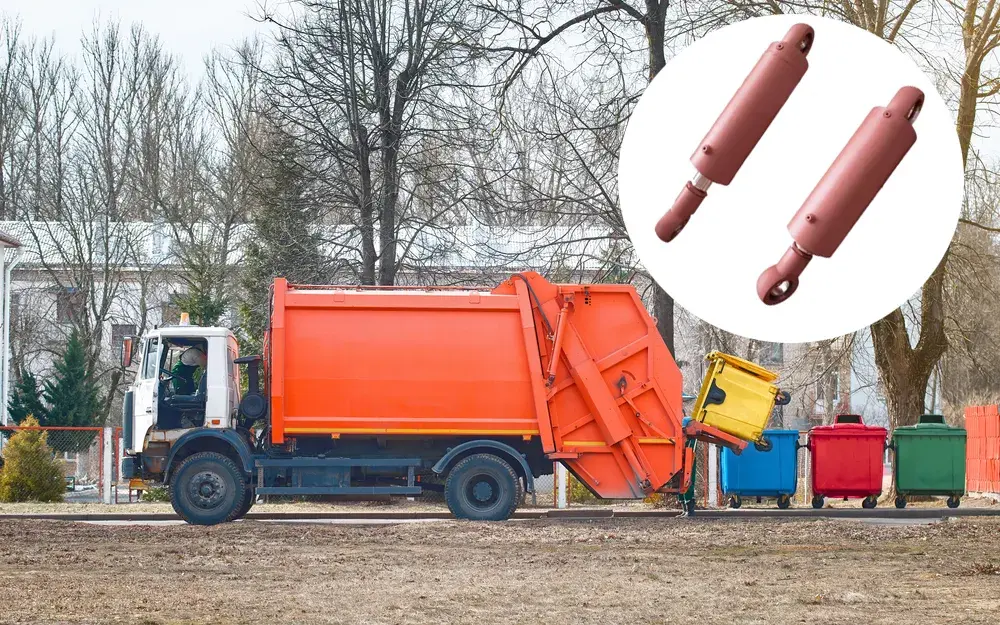

Two-way hydraulic push compresses municipal waste to about 1/3 of original volume. Compression density increases by around 40%, raising single-truck payload.
Compact design saves about 30% installation space. Accurately controls 100-2000 kN pushing force for sludge, masonry and mixed materials.
Stable thrust for roller brush and sweeping arm positioning on uneven roads and during continuous cleaning cycles.
Corrosion-resistant body and sealing system handle wet, abrasive and chemically aggressive dredging environments.
High-strength alloy body, seven forging steps, precision heat treatment to 1200 MPa tensile strength. Material records can be provided with bulk shipments.
Each cylinder is checked for leakage, stroke smoothness and port fitting before packing. Reverse thrust performance is verified against rated pressure.
Bore, rod, stroke, installation distance and port dimensions are recorded against the ordered drawing or customer sample.
Cylinders are packed with anti-rust oil and protective end caps. Bulk orders can be palletized and strapped for sea freight, air freight or express delivery.
Provide equipment type, drawing number, bore, rod, stroke, installation distance, port size, quantity and destination port.
Raydafon checks whether model LPE222.2.2-5-00 or a custom reverse thrust cylinder fits your equipment.
For OEM projects, Raydafon reverse-engineers the sample and confirms dimensions before bulk production.
After drawing approval, Raydafon provides an FOB Ningbo quotation, production schedule and packing details.
A sanitation machinery reverse thrust hydraulic cylinder is a double-acting hydraulic actuator that generates strong pushing force in the reverse direction. It is used in garbage compactors, material pushing equipment, street sweepers and river dredging ships to compress or push waste and sludge. The reverse thrust cylinder is the core power unit that drives the compression plate or pushing blade.
Raydafon produces standard model LPE222.2.2-5-00 with Φ220 mm bore, Φ110 mm rod, 420 mm stroke, 1110 mm installation distance, 16 MPa working pressure, 2-M22×1.5 port and 323 kg weight. Custom bore, stroke, installation distance and port rotation are available against OEM drawings or physical samples.
The patented two-stage piston structure reaches up to 2500 kN reverse thrust, which is about 30% higher than ordinary cylinders. In garbage compression applications, it can raise compression density from about 200 kg/m³ to 350 kg/m³ and increase single-truck load capacity by around 2 tons.
The cylinder body is made of high-strength alloy material, processed through seven forging steps and precision heat treatment, with tensile strength reaching 1200 MPa. A quadruple composite sealing system resists corrosive liquids with pH value from 2 to 12, including landfill leachate and snow-melting agents.
Yes. Raydafon supports OEM production from customer drawings or physical samples. Custom bore, rod, stroke, installation distance, oil port rotation, low-temperature versions for cold regions, private label packaging and bulk order production are available.
Send the drawing number or existing sample details, bore diameter, rod diameter, stroke, installation distance, working pressure, port size, order quantity and destination port. Raydafon will reply with an FOB Ningbo quotation and lead time.
Use the inquiry form on this page or contact Raydafon by phone, email or WhatsApp. Include the required model, drawing number, quantity and application. The sales team will confirm sample availability, bulk production schedule and packing details.
Send your drawing number, bore/rod/stroke requirement, working pressure, port size, order quantity and destination port. Raydafon will confirm the standard model or design a custom reverse thrust hydraulic cylinder, then provide an FOB Ningbo quotation with lead time and packing details.
