Crossed Helical Gears

Product Advantages

Expert in spatial "transformation": Ordinary gears can only transmit power between parallel or intersecting axes, and they are "blind" when encountering complex mechanical layouts. But the crossed helical gears produced by Raydafon can make two non-parallel and non-intersecting axes "hold hands" to transmit, just like playing "transformation" on the mechanical space. In some compact automation equipment, it can cleverly use narrow space to accurately deliver power, making the equipment layout more flexible.

Quiet "doer": The most feared thing about gear rotation is loud noise, and the helical tooth design of this product makes the meshing process super smooth, and the noise is directly "cut in half". Used in smart bookshelves in libraries and precision testing instruments in hospitals, the running sound is almost inaudible and does not disturb the environment at all. Even if used for a long time and at high frequency, it can maintain "quiet output", a true "doer".

Wear-resistant "small steel cannon": Made of high-strength alloy steel, coupled with special surface treatment technology, our crossed helical gears have a maximum wear resistance. In high-load environments such as mining machinery and heavy transport equipment, it can run continuously for tens of thousands of hours with minimal wear. No need to replace frequently, maintenance costs are directly reduced, and the cost performance is amazing!

Affordable "Powerful": As a factory-direct supplier, Raydafon uses large-scale production to keep prices to the lowest. Other gears with the same performance may be expensive, but our product prices are very affordable, which truly achieves the goal of spending little money to do big things, allowing you to easily use high-quality transmission gears!

Product Application

In the cooling fan structure of a laptop computer, the space is extremely compact. Ordinary gears are difficult to meet complex transmission requirements, while crossed helical gears can cleverly transmit the motor power to the fan blades with its unique staggered shaft transmission characteristics. Raydafon's products have micron-level precision, which not only makes the fan run quieter, but also effectively saves internal space and helps the notebook achieve a thin and light design.

In the multi-directional adjustment system of the dental chair, power needs to be flexibly transmitted to components at different angles. Crossed helical gears perfectly adapt to this demand. It can realize non-parallel shaft transmission in a small space, so that the backrest of the dental chair can be tilted and the seat can be raised and lowered accurately and smoothly. Our gears are made of medical-grade materials, which are safe and reliable, ensuring that patients are comfortable and at ease during treatment.

In the auxiliary equipment transmission system of the automobile engine, the working conditions are complex and the reliability requirements are extremely high. This product can withstand large torque and impact loads, and efficiently transmit the engine power to components such as water pumps and generators. Raydafon's gears have undergone a special heat treatment process, and their wear resistance and strength far exceed ordinary standards. Even in harsh environments with high temperatures and vibrations, they can ensure stable operation of the equipment and reduce the number of downtimes for maintenance.

The transmission device of smart curtains pursues quietness and efficiency. Crossed helical gears play a key role here. It allows the motor and the curtain track to transmit at a non-parallel angle, saving installation space while running with extremely low noise. Every morning, accompanied by a gentle sound, the curtains slowly open, adding a touch of comfort to home life. As a factory-direct supplier, Raydafon provides high-performance transmission solutions for various industries at affordable prices.

Product Types

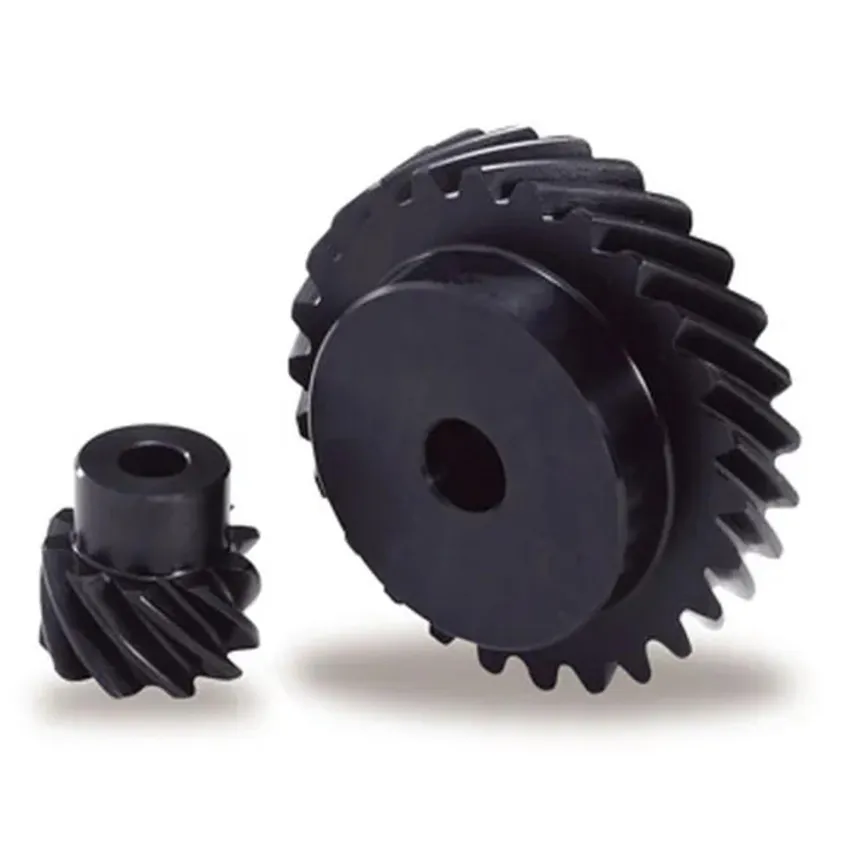

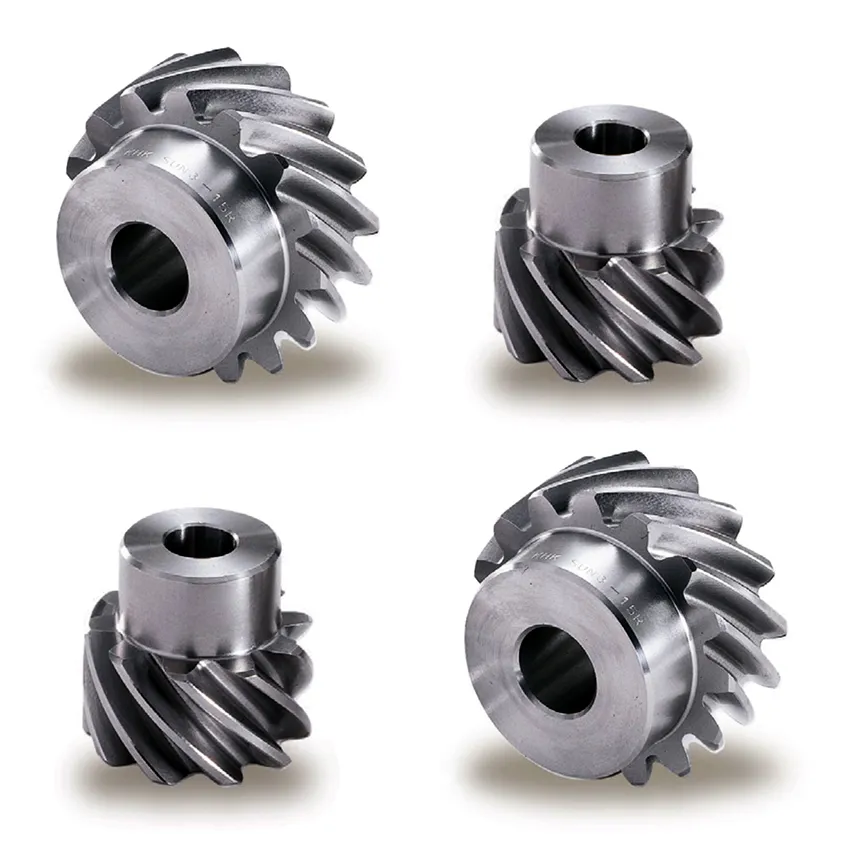

Steel Crossed Helical Gears	Stainless Steel Crossed Helical Gears

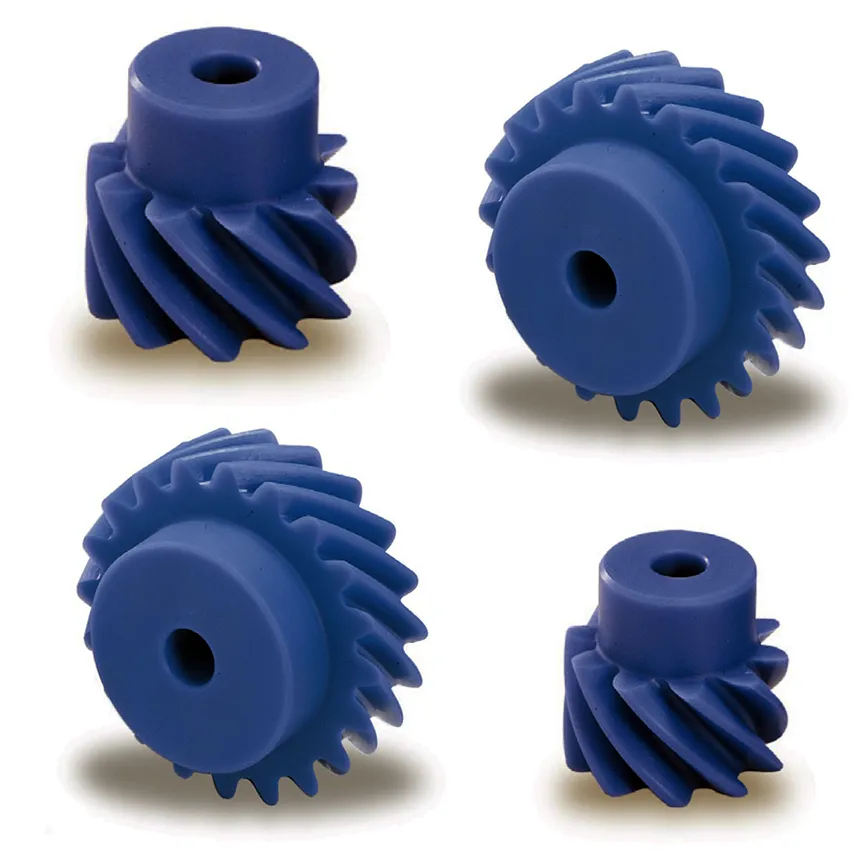

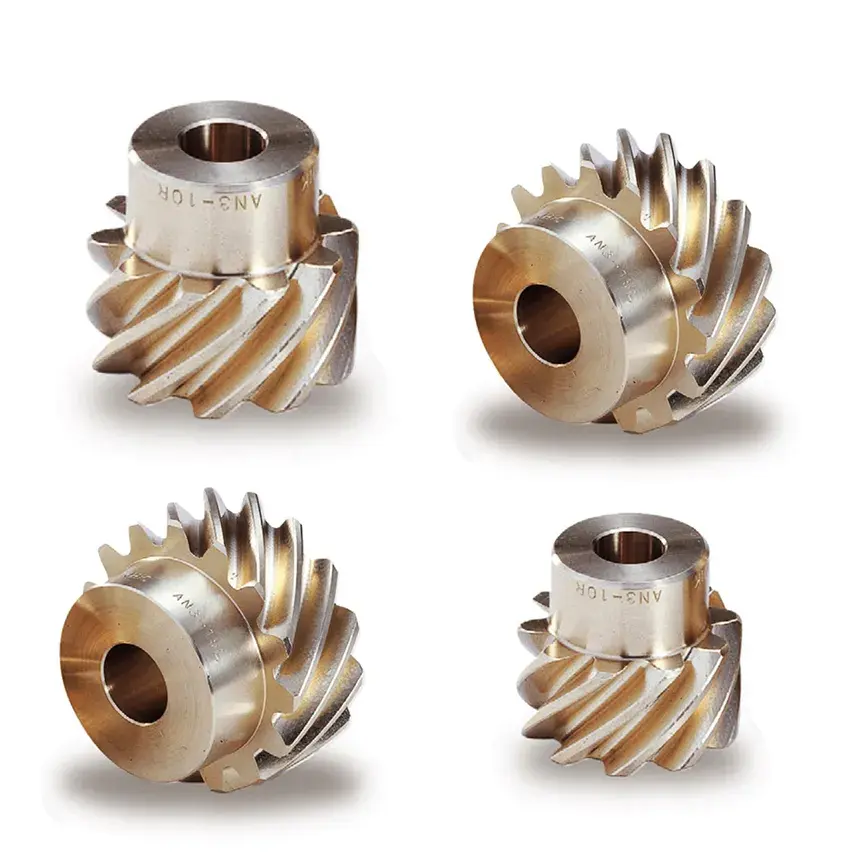

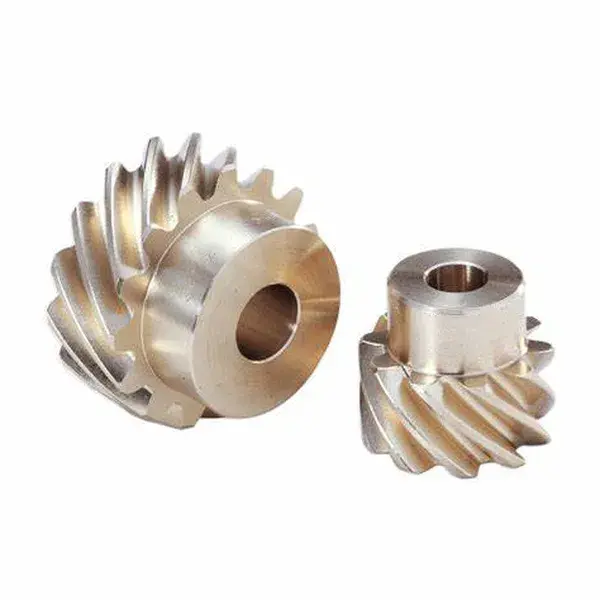

Aluminum Bronze Crossed Helical Gears	Nylon Crossed Helical Gears

Customer Testimonials

I am Tom. Recently, the factory urgently needed crossed helical gears for equipment renovation. The time was tight and the task was heavy. After contacting Raydafon, the staff immediately helped me sort out the needs and recommended models that were particularly suitable for the actual working conditions. After receiving the product, I found that the meshing accuracy of the gears was beyond imagination. It was installed on the equipment and ran smoothly as if it was a new machine. The previous abnormal noise and vibration disappeared. Moreover, there were some minor episodes during transportation, and the customer service helped me follow up and coordinate throughout the process until the goods were confirmed to be delivered safely. I am so lucky to meet a company with strong products and warm service. I must give Raydafon a thumbs up!

I am Emma Clark from Canada. The factory urgently needed a batch of high-precision staggered helical gears for equipment renovation. I found many suppliers but was not satisfied. Finally, I placed an order with Raydafon. After the gears arrived, I found that the workmanship of the gears was too fine, the tooth surface was as smooth as a mirror, and the dimensional error was almost invisible to the naked eye. After installing it on the equipment, the transmission system that was originally severely stuck became smooth instantly, and the operating noise was so small that it could be ignored. The most unexpected thing was that the cross-border transportation arrived two days earlier than expected, and the packaging was tight without any bumps. Now the equipment is running stably and the production capacity has increased. I sincerely thank Raydafon and will come to you for purchase next time!

I am Lucas Silva from Brazil. When I was looking for replacement gears for old equipment in my workshop, I found Raydafon's crossed helical gears by chance on the Internet. I was worried that there would be various troubles in cross-border procurement, but the professionalism in the communication process finally made me choose to purchase. As a result, everything from ordering to receiving the goods went very smoothly! After receiving the gears, my colleagues praised the solid workmanship and clear and regular tooth patterns. Now the equipment efficiency has been greatly improved and the maintenance frequency has also been reduced. Your product quality is excellent and the communication is very timely. I will definitely repurchase in the future!
