What Are the Different Types of Universal Couplings?

As one of the leading manufacturers in mechanical transmission systems, Raydafon Technology Group Co., Limited has focused on developing high-quality universal couplings designed for a wide range of industrial applications. Our factory emphasizes precision engineering, reliable performance, and superior durability in every Universal Coupling we produce. Understanding the different types of universal couplings can help you select the best option for your system’s torque, alignment, and speed requirements.

Table of Contents

1. Introduction to Universal Couplings
2. Classification by Structure: Single and Double Types
3. Material and Manufacturing Standards
4. Performance Features and Technical Parameters
5. Applications and Selection Guidelines
6. FAQ
7. Conclusion

Introduction: Understanding the Purpose of Universal Couplings

A universal coupling is a mechanical device that transmits torque between two shafts that are not in perfect alignment. It allows flexible movement while maintaining rotational power transfer. In our factory, each universal coupling is designed to compensate for angular, parallel, and axial misalignments, which commonly occur in industrial systems. Raydafon Technology Group Co., Limited ensures every coupling meets strict standards to guarantee reliability and longevity in demanding environments.

Classification: Single Type vs. Double Type Universal Couplings

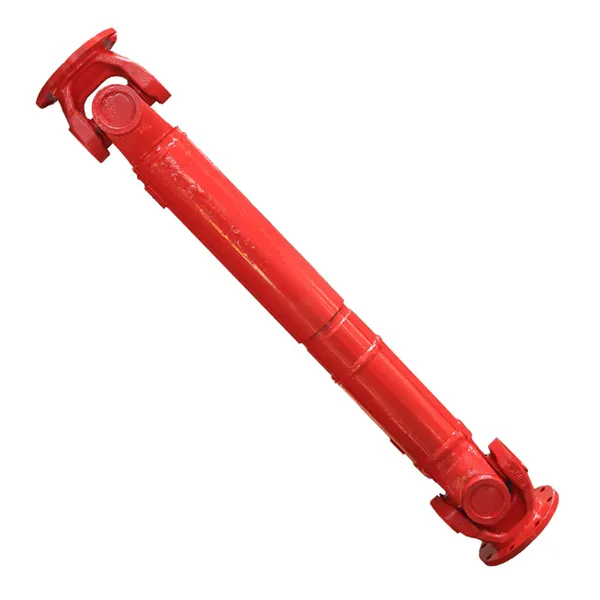

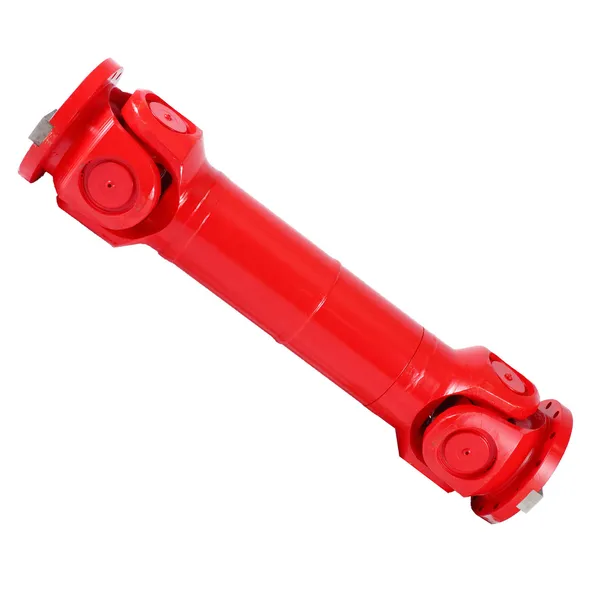

Universal couplings can be divided into two main categories: single joint and double joint types. A single universal coupling connects two shafts at an angle, allowing flexibility but limited alignment correction. A double universal coupling, also known as a double Cardan joint, includes two universal joints connected by a central shaft, enabling greater angular compensation and smoother torque transmission. Our products are engineered to deliver high torque capacity and precise alignment for both configurations.

Material and Manufacturing Standards: Ensuring Strength and Durability

Raydafon Technology Group Co., Limited selects materials such as carbon steel, alloy steel, and stainless steel for their mechanical strength and wear resistance. Our factory uses precision machining, heat treatment, and dynamic balance testing to enhance the performance of each Universal Coupling. The result is a robust product that can operate under continuous load and varying environmental conditions.

Performance: Key Advantages of Our Universal Couplings

Each universal coupling from Raydafon Technology Group Co., Limited is engineered for optimal mechanical efficiency and safety. Our products are designed to reduce vibration, absorb shocks, and ensure stable power transfer between connected shafts. Our team focuses on precision alignment, controlled tolerances, and advanced lubrication systems that extend service life. We continuously test every unit to maintain the quality reputation our factory has built globally.

Applications: Where Universal Couplings Excel

Universal couplings are widely used in various sectors, including automotive, marine, aerospace, agricultural, and industrial machinery. At Raydafon, we supply customized designs suitable for different torque and speed requirements. Our factory’s flexibility allows us to adapt to customer specifications, offering complete mechanical transmission solutions that improve equipment performance and reduce downtime.

FAQ: What Are the Different Types of Universal Couplings?

Conclusion: Choosing the Right Universal Coupling for Your System

Understanding the different types of universal couplings helps ensure proper selection for your application. With strong technical expertise, Raydafon Technology Group Co., Limited provides durable, efficient, and precisely engineered couplings that enhance the performance of power transmission systems. Our products are tested to meet the highest industry standards, and our factory continues to innovate to deliver superior mechanical solutions worldwide.
