Can Precision Gear designs exceed the 17-tooth limit?

Precision gear, an indispensable component in everyday life and industry, is widely used in a wide range of applications, including aviation, cargo ships, and automobiles. However, when designing and manufacturing gears, certain tooth counts are required. Some have suggested that gears with fewer than 17 teeth will not rotate. However, this is not accurate. What exactly causes this discrepancy?

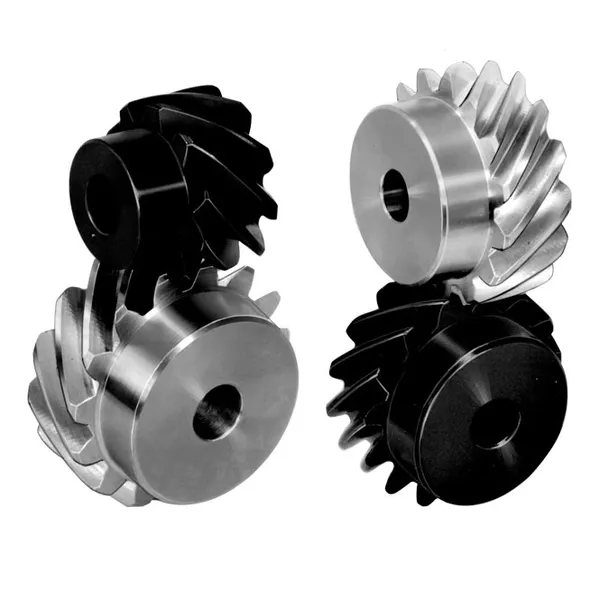

Precision Gear

Undercutting

During the manufacturing process of Precision Gear, undercutting can occur if the number of teeth is too small. This phenomenon negatively impacts gear strength. When the intersection of the tooth tip and the meshing line exceeds the critical meshing point of the gear being cut, the involute tooth profile at the root of the gear being cut is partially removed. This phenomenon is called undercutting. Undercutting is a reduction in gear strength caused by excessive cutting at the root. This can be avoided by selecting an appropriate tooth height coefficient and pressure angle.

Aspect	Undercut (Gear Root Undercutting)	Prevention & Solutions
Definition	Removal of material near the root of gear teeth due to interference in cutting/milling	-
Visual Identification	Notched tooth roots Asymmetrical tooth profile	Inspect root fillet with magnifiers or CMM
Primary Cause	• Low pinion tooth count • Excessive cutter addendum • High pressure angle	Increase pinion teeth count Optimize cutter geometry
Consequences	Reduced tooth strength Noise/vibration at high speeds Premature fatigue failure	Design validation via stress simulation
Key Prevention Methods	-	Profile Shifting– Move cutter away from gear blank Higher Pressure Angle for fewer teeth Precision cutter design – Reduce tool addendum Increase addendum of mating gear
Tooth Count Limits	Avoid ≤ 17 teeth Avoid ≤ 14 teeth	Minimum teeth: 18 (20° PA), 15 (25° PA) w/o shift 12–14 (20° PA) with profile shifting

The Relationship between Gear Design and Tooth Count

Whether or not a precision gear has fewer than 17 teeth is not an absolute limitation. In practice, many gears with fewer than 17 teeth exist, but their design must avoid undercutting. Hobbing is a common machining method.

Gear Machining Methods

Precision gear machining methods include hobbing. 17-tooth gears have unique machining characteristics. Too few teeth can easily lead to undercutting. The key to avoiding undercutting lies in selecting the appropriate addendum height coefficient and pressure angle. For involute gears, good meshing is crucial for smooth operation.

Applications of Gears with Different Tooth Counts

While theory allows for precision gears with any tooth count, the impact of tooth count on undercutting must be considered in practical designs to ensure gear stability and life. Furthermore, the number of teeth on a gear is an important consideration. However, many gears with fewer than 17 teeth still function well on the market. This is primarily because undercutting is not always unavoidable in real applications.

Involute Gear Design

Involute tooth profiles are widely used in precision gear design due to their advantages in meshing performance and friction reduction. However, non-involute tooth profiles are also used in specific situations. Involute gears can be further divided into spur gears and helical gears. For standard spur gears, the addendum height coefficient, root height coefficient, and pressure angle are clearly defined.

Through appropriate machining techniques, such as indexing and helical gear design, precision gears with fewer than 17 teeth can effectively avoid undercutting, ensuring proper operation. Indexing is the most common method to address this issue, involving adjusting the tool position for cutting. Helical, cycloidal, and pan-cycloidal gears are also viable options.

Raydafon offers a variety of precision gear sizes，please feel free to purchase.
