Sanitation Machinery Locking Hydraulic Cylinder

Raydafon is a China-based OEM sanitation hydraulic cylinder manufacturer and supplier. This sanitation machinery locking hydraulic cylinder is designed for garbage compactors, road sweepers and high-pressure cleaning equipment. It uses 316L stainless steel, electrolytic polishing Ra≤0.4μm, double-lip PTFE sealing with IP69K protection, and works at 25-30 MPa with stable locking under wet, dusty and corrosive conditions. Factory cycle testing confirms no leakage after 5,000 cycles on selected models. Custom bore, stroke, installation distance, port and private label are available. Target pricing is typically 30%-40% below comparable imported units, depending on model and quantity. Send drawing number, required quantity and destination port for a fast quotation.
Send Inquiry
Product Description
OEM Sanitation Hydraulic Cylinder Manufacturer

Sanitation Machinery Locking Hydraulic Cylinder Manufacturer for Garbage Compactors & Road Sweepers

Raydafon is a China-based factory-direct manufacturer and supplier of sanitation machinery locking hydraulic cylinders. This locking hydraulic cylinder is built for garbage compactors, road sweepers, high-pressure cleaning equipment and other sanitation machinery that needs stable holding force under wet, dusty and corrosive working conditions. Standard models cover 25-30 MPa working pressure, Φ40-63 mm bore, Φ20-40 mm rod, 53-160 mm stroke and 2-G3/8 port. Custom OEM drawings, sample reverse engineering, private label and bulk orders are supported. Send your drawing number, required quantity and destination port to request a quotation.

Request a Quotation Send Drawing Number
25-30 MPaWorking pressure
Φ40-63 mmBore diameter
53-160 mmStroke
IP69KSealing protection

Why Raydafon Locking Cylinders Are Specified in Sanitation Equipment

Sanitation equipment does not work in a clean factory environment. Garbage compactors face leachate, wet waste and continuous pressure. Road sweepers work with vibration, dust and road shock. High-pressure cleaning equipment needs fast locking and stable angle control. A standard hydraulic cylinder may lose holding force, leak oil or corrode early in these conditions.

Raydafon builds this sanitation machinery locking hydraulic cylinder as a core locking drive component. The cylinder body uses 316L stainless steel and electrolytic polishing to Ra≤0.4μm, which helps resist sodium hypochlorite, alcohol and other disinfectants. The double-lip PTFE sealing system with IP69K protection is designed for -20°C to 120°C working conditions. Selected models are cycle-tested without leakage after 5,000 cycles.

For buyers comparing suppliers, Raydafon offers factory-direct pricing, OEM production and stable batch quality. If you also source other hydraulic components, you can review the full Hydraulic Cylinder category or the dedicated Garbage Truck Hydraulic Cylinder range.

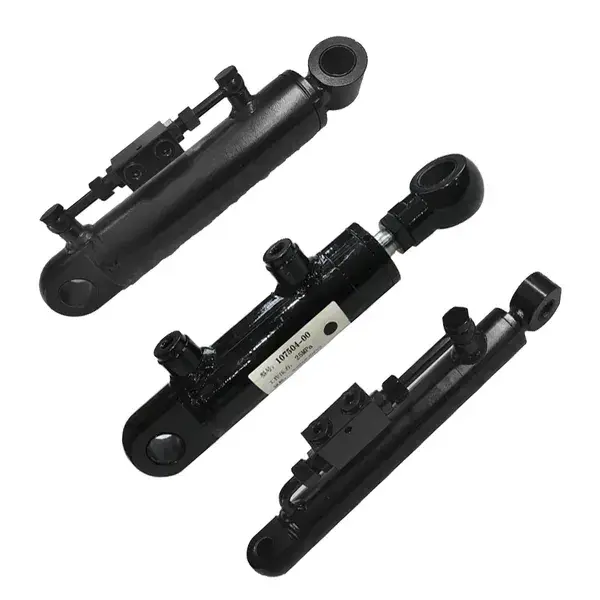

Sanitation machinery locking hydraulic cylinder with 316L stainless steel body and locking drive component

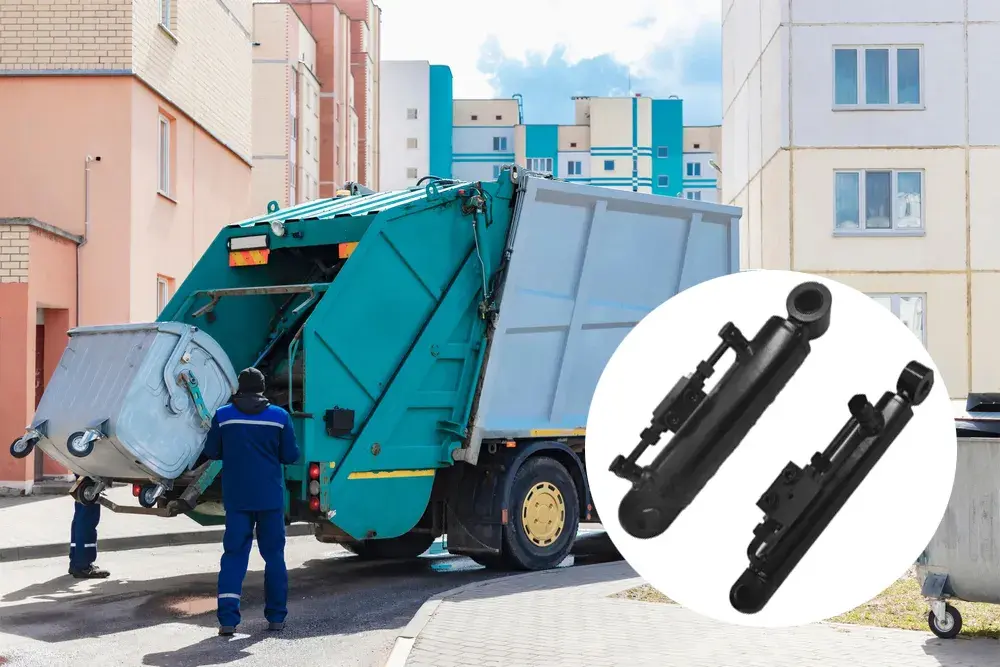

Sanitation machinery locking hydraulic cylinder for garbage compaction and road sweeping

Standard Models and Technical Dimensions

The two standard locking cylinder models below cover common sanitation machinery locking applications. If your equipment uses a different mounting pattern, send the OEM drawing number or a physical sample for reverse engineering and custom production.

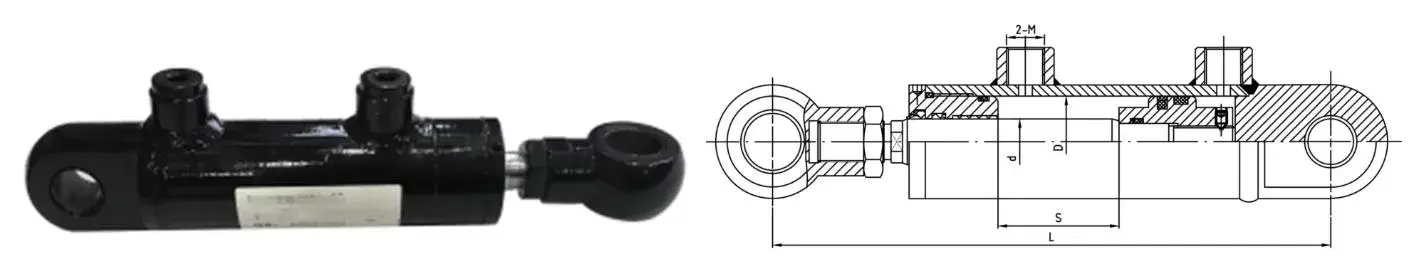

Sanitation machinery locking hydraulic cylinder dimension drawing for model 107504-00 and 103631-00
Dimensional reference for standard sanitation locking cylinder models
Cylinder Name Drawing Number Bore Diameter D Rod Diameter d Stroke S Installation Distance L Working Pressure Interface M Weight
Locking cylinder 107504-00 Φ40 mm Φ20 mm 53 mm 245 mm 25 MPa 2-G3/8 2.6 kg
Locking cylinder 103631-00 Φ63 mm Φ40 mm 160 mm 385 mm 30 MPa 2-G3/8 15 kg

Need a different bore, stroke, installation distance or port type? Raydafon can produce a custom locking hydraulic cylinder against your drawing. For related sanitation equipment cylinders, see the Sanitation Machinery Reverse Thrust Hydraulic Cylinder.

Applications in Garbage Compaction, Road Sweeping and High-Pressure Cleaning

Garbage compression equipment

On garbage transfer station compactors, the two-way hydraulic lock can hold the compression arm under wet waste conditions. Stable locking helps maintain pressure without slipping, supporting higher handling capacity and reducing downtime caused by arm movement.

Road sweeping machinery

Road sweepers work on uneven roads. The compact locking cylinder helps fix the roller brush arm and reduce vibration offset. This supports stable cleaning width and reduces the need for frequent adjustment during operation.

High-pressure cleaning equipment

On high-pressure water gun equipment, fast locking helps fix the gun head angle quickly. Stable holding force reduces shaking and deviation when cleaning guardrails, walls and other vertical surfaces.

OEM sanitation machinery and aftermarket supply

Forklift and sanitation equipment dealers, repair workshops and OEM builders can order standard models or custom locking cylinders with private label packaging. If you also handle forklift equipment, Raydafon supplies the Forklift Hydraulic Cylinder range.

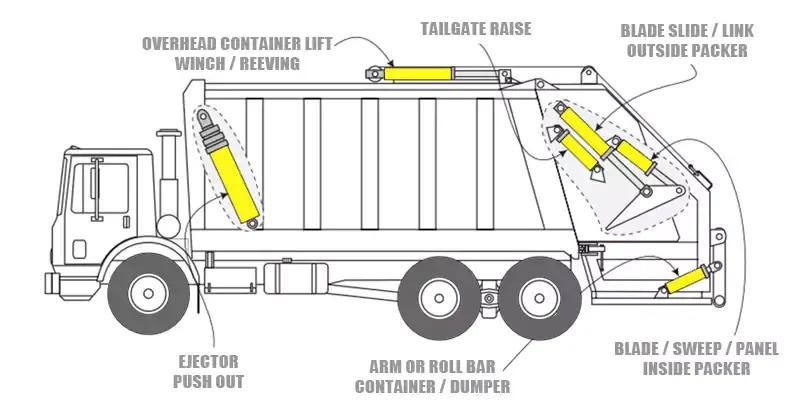

Sanitation machinery locking hydraulic cylinder application in garbage compaction and road sweeping equipment
Locking cylinder applications in sanitation machinery

Quality Evidence, Testing and Export Support

Material and surface records

316L stainless steel body, electrolytic polishing Ra≤0.4μm, and sealing compound data can be provided with bulk shipments for buyer quality review.

Pressure and cycle testing

Each cylinder is checked for leakage, stroke smoothness and port fitting before packing. Selected models are cycle-tested without leakage after 5,000 cycles.

Dimensional inspection

Bore, rod, stroke, installation distance and port dimensions are recorded against the ordered drawing or customer sample.

Export packing

Cylinders are packed with anti-rust oil and protective end caps. Bulk orders can be palletized and strapped for sea freight, air freight or express delivery.

Custom OEM Ordering Process for Sanitation Hydraulic Cylinders

Step 01 Send application details

Provide equipment type, drawing number, bore, rod, stroke, installation distance, port size, quantity and destination port.

Step 02 Model review

Raydafon checks whether model 107504-00, 103631-00 or a custom locking cylinder fits your equipment.

Step 03 Sample and drawing approval

For OEM projects, Raydafon reverse-engineers the sample and confirms dimensions before bulk production.

Step 04 Production and quotation

After drawing approval, Raydafon provides an FOB Ningbo quotation, production schedule and packing details.

Frequently Asked Questions

What is a sanitation machinery locking hydraulic cylinder?

A sanitation machinery locking hydraulic cylinder is a hydraulic actuator that locks or holds a moving arm, roller brush, compression plate or high-pressure cleaning head in position. It is used in garbage compactors, road sweepers and high-pressure cleaning equipment where stable locking, dust resistance and moisture resistance are required.

Which models are available?

Raydafon produces model 107504-00 with Φ40 mm bore, Φ20 mm rod, 53 mm stroke, 245 mm installation distance, 25 MPa working pressure and 2.6 kg weight, and model 103631-00 with Φ63 mm bore, Φ40 mm rod, 160 mm stroke, 385 mm installation distance, 30 MPa working pressure and 15 kg weight. Custom models are available against OEM drawings or samples.

What working pressure and sealing protection does the locking cylinder use?

The standard range covers 25-30 MPa working pressure. The cylinder uses a double-lip PTFE sealing system with IP69K protection and is designed for -20°C to 120°C operating conditions. Selected models are cycle-tested without leakage after 5,000 cycles.

What materials and surface finish are used?

The cylinder body is made from 316L stainless steel and electrolytically polished to Ra≤0.4μm. This helps resist disinfectants such as sodium hypochlorite and alcohol, and supports use in high-cleanliness sanitation and industrial environments.

Can Raydafon produce custom OEM locking hydraulic cylinders?

Yes. Raydafon supports OEM production from customer drawings or physical samples. Custom bore, rod, stroke, installation distance, port type, private label packaging and bulk order production are available.

What information is needed for a quotation?

Send the drawing number or existing sample details, bore diameter, rod diameter, stroke, installation distance, working pressure, port size, order quantity and destination port. Raydafon will reply with an FOB Ningbo quotation and lead time.

How do I request a sample or bulk order?

Use the inquiry form on this page or contact Raydafon by phone, email or WhatsApp. Include the required model, drawing number, quantity and application. The sales team will confirm sample availability, bulk production schedule and packing details.

Ready to Source Sanitation Machinery Locking Hydraulic Cylinders?

Send your drawing number, bore/rod/stroke requirement, working pressure, port size, order quantity and destination port. Raydafon will confirm the standard model or design a custom locking hydraulic cylinder, then provide an FOB Ningbo quotation with lead time and packing details.
