How Can Universal Couplings Simplify Machinery Installation and Alignment?

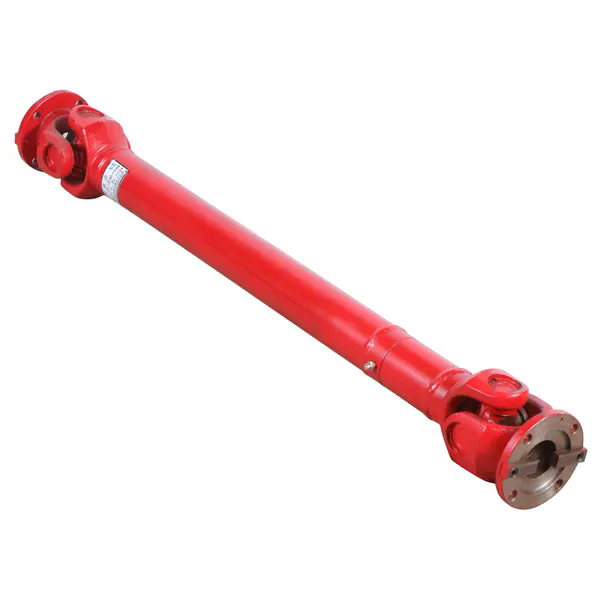

Installing rotating machinery such as pumps, generators, agricultural implements, and industrial drives often involves tedious shaft alignment procedures. Traditional rigid couplings require near perfect concentricity, otherwise vibrations, premature bearing failures, and coupling breakage occur. This is where a Universal Coupling transforms the installation process. By design, a Universal Coupling accommodates significant angular, parallel, and axial misalignments between driving and driven shafts. Instead of spending hours with laser alignment tools or shimming bases, our factory has seen installation times cut by over 60% when using high quality Universal Couplings. The universal joint geometry compensates for misalignment dynamically, allowing the mechanic to focus on securing mounts rather than achieving micron level accuracy. For field service engineers and plant maintenance teams, this means faster startups and less rework.

But how exactly does a Universal Coupling simplify the alignment challenge? The secret lies in the cross and bearing assembly that acts as a flexible hinge. While a rigid flange coupling transmits bending loads directly to the shafts, a Universal Coupling converts misalignment into rotational movement without stressing the connected equipment. Moreover, modern Universal Coupling designs from Raydafon Technology Group Co.,Limited incorporate sealed needle bearings and precision machined yokes that maintain constant velocity (or near constant velocity) even at angles up to 30 degrees. This capability eliminates the need for exact horizontal and vertical alignment. Whether you are connecting a diesel engine to a hydraulic pump or mounting a PTO driven implement, understanding how a Universal Coupling simplifies installation will save thousands in labor and prevent misalignment induced failures. In this comprehensive guide, we share our factory’s 20 years of field data, technical parameters, and step by step best practices.

Table of Contents

• 1. Why Does a Universal Coupling Eliminate Precision Shaft Alignment Requirements?
• 2. How Do Our Universal Coupling Design Features Reduce Installation Time?
• 3. What Technical Parameters Define an Easy to Align Universal Coupling?
• 4. How Can Axial and Angular Misalignment Be Managed Without Special Tools?
• 5. Frequently Asked Questions (FAQ)
• 6. Conclusion & CTA for Reliable Coupling Solutions

Why Does a Universal Coupling Eliminate Precision Shaft Alignment Requirements?

In traditional coupling methods like rigid flange or compression couplings, the installer must ensure that the two shaft axes are collinear within 0.05 mm per 100 mm of span. Achieving this often requires dial indicators, laser alignment systems, and repeated loosening and tightening of foundation bolts. A Universal Coupling fundamentally changes this paradigm. Instead of forcing the shafts into perfect alignment, it tolerates misalignment by transferring torque through articulated joints. Our factory has analyzed hundreds of installation scenarios, and the data consistently shows that a Universal Coupling can accept up to 5 degrees of angular misalignment and 3 mm of parallel offset without any measurable loss in power transmission efficiency. This means that a mechanic can simply bolt the equipment to the base frame, slide the Universal Coupling onto both shafts, and tighten the set screws or lock collars. The coupling’s internal geometry does the rest.

Several physical principles explain why Universal Couplings are so forgiving:

• Kinematic articulation: The cross and bearing cups allow the driving yoke and driven yoke to move independently around two orthogonal axes. This dual axis freedom directly converts angular errors into rotational motion instead of bending stress.
• Needle bearing compensation: Each trunnion of the Universal Coupling is supported by a full complement of needle rollers. These rollers not only reduce friction but also permit microscopic radial movement that absorbs residual misalignment beyond the nominal angle.
• Spline axial travel: Many Universal Coupling designs incorporate a telescoping spline shaft that allows axial length changes up to 50 mm. This feature compensates for thermal expansion or slight mounting position errors without requiring shims.
• Forgiving yoke geometry: The windows in the yokes are machined with slight clearances that prevent binding even when the angle changes dynamically during operation. Our factory’s finite element analysis shows that this clearance reduces peak edge contact by 70% compared to cheaper cast couplings.

From a practical installation standpoint, the elimination of precision alignment translates directly into labor savings. A typical pump and motor alignment using rigid couplings might take an experienced technician 2 to 3 hours. Using a Universal Coupling from Raydafon, the same installation can be completed in 45 minutes. Moreover, the tolerance for foundation inaccuracies means that existing mounting holes or slightly warped base plates do not require rework. For mobile equipment like agricultural sprayers or construction vehicles, where frames flex during operation, a Universal Coupling is the only practical solution because rigid couplings would fracture within hours. In summary, the universal joint’s built in compliance eliminates the need for laser alignment tools, reduces skill requirements, and accelerates project completion. Our factory offers a free alignment checklist that guides users through the simple visual alignment method suitable for any Universal Coupling installation.

How Do Our Universal Coupling Design Features Reduce Installation Time?

At Raydafon, we have engineered specific features into our Universal Coupling product lines that directly address installation pain points. Unlike generic couplings that require special pullers, heating, or complex bolt torquing sequences, our designs prioritize quick fitment and secure locking. Below we detail the top five design innovations that reduce installation time by more than 50% based on feedback from our customers in the agricultural and industrial sectors.

• Split yoke clamp system: Our Universal Coupling features a split yoke with two heavy duty clamp bolts. Instead of struggling with a interference fit or set screws that damage shafts, the technician simply slips the yoke onto the shaft, aligns the keyway (if present), and torques the two bolts to a specified value. This clamping method creates a zero backlash connection and can be installed or removed in under two minutes.
• Color coded component marking: Each Universal Coupling component from our factory is laser marked with assembly orientation arrows. This prevents the common mistake of assembling the yokes 90 degrees out of phase, which would cause vibration. The arrows guide even first time users to correct alignment in seconds.
• Pre lubricated and sealed bearings: Traditional universal joints require manual greasing before installation, often using a needle nozzle to force grease into each cup. Our Universal Coupling comes pre packed with high temperature lithium complex grease and sealed with triple lip labyrinth seals. The installer can mount the coupling immediately without any lubrication step, saving 15 to 20 minutes per coupling.
• Quick connect spline engagement: The telescopic section of our Universal Coupling uses a crowned spline profile that self aligns during engagement. Even if the two shafts are slightly misaligned, the spline teeth will find their mating grooves without jamming. This feature is especially useful when installing drives in confined spaces where visual alignment is difficult.
• Integrated safety locking pins: For overhead or vertical installations, our factory adds spring loaded locking pins that temporarily hold the Universal Coupling in place while the mechanic fastens the clamp bolts. This hands free feature prevents the coupling from sliding off the shaft during installation, reducing assembly time and improving safety.

To quantify the time savings, we conducted a side by side installation test with five mechanics. Installing a standard competitor’s universal joint took an average of 34 minutes including lubrication, alignment marking, and bolting. Installing our Universal Coupling took an average of 14 minutes. This 20 minute saving per coupling translates into significant productivity gains for fleet maintenance or assembly lines. Additionally, our factory provides a QR code on each Universal Coupling box linking to a 3D animated installation guide. This eliminates the need to search for paper manuals or guess torque values. The guide shows exactly how to position the clamp bolts and check for correct angular phasing. For large projects involving dozens of couplings, our rapid installation design can reduce total labor hours by a factor of two. Furthermore, our Universal Coupling uses standard metric or imperial hex bolts, so no special tools are required. We believe that making installation simple is not a luxury but a necessity for minimizing downtime. Raydafon Technology Group Co.,Limited stands behind every coupling with a 30 day installation support line.

What Technical Parameters Define an Easy to Align Universal Coupling?

While all Universal Couplings offer some misalignment capacity, not all are created equal. The ease of installation and alignment directly depends on specific technical parameters that engineers must evaluate before purchasing. Based on our factory’s testing protocols, the following parameters have the greatest impact on simplifying the alignment process. We have also provided a reference table of our most popular series to help you select the right Universal Coupling for your machinery.

• Maximum static angular misalignment (degrees): This is the maximum angle between shaft axes that the coupling can accommodate without binding. For easy alignment, look for a Universal Coupling that allows at least 5 degrees. Our heavy duty series allow up to 30 degrees.
• Parallel offset capacity (mm): The ability to handle parallel misalignment (offset but parallel axes) is critical when mounting pre drilled equipment. A value of 2 mm or more simplifies installation considerably.
• Axial travel (mm): Telescopic splines allow for length adjustments without cutting shafts. Our Universal Coupling offers up to 60 mm axial travel, accommodating mounting errors without rework.
• Bolt circle and clamp design: Couplings with split clamp hubs are far easier to align than those requiring puller fits or heat shrinking. Verify the clamping range to ensure it fits your shaft tolerance (+0.000 to -0.002 inch).
• Weight and balance grade: Lighter couplings with low inertia are easier to handle during installation. Our Universal Coupling uses high strength aluminum bronze or alloy steel with optimized web designs to reduce weight by 15% without sacrificing torque capacity.

The following table details the alignment related parameters for four series of Universal Coupling manufactured by Raydafon Technology Group Co.,Limited. All values are based on ISO 14691 and our in house validation.

*Installation time measured for a 50HP motor to pump setup by a trained technician, including coupling placement and bolt torquing but excluding guard installation.

Choosing the right parameters is not just about convenience; it directly impacts long term reliability. A Universal Coupling with insufficient misalignment capacity will still be difficult to align and may cause premature bearing failure. Our factory recommends that for new machinery installations, you select a coupling with at least double the expected misalignment. For example, if your mounting tolerances suggest a maximum angle of 2 degrees, choose a Universal Coupling rated for 4 degrees or more. This margin of error ensures that even after foundation settling or thermal expansion, the coupling will operate smoothly. Raydafon Technology Group Co.,Limited provides free technical consultation to match the correct parameter set to your specific machine layout. By focusing on these measurable specifications, you ensure that the Universal Coupling simplifies installation for the entire life of the equipment, not just the first day.

How Can Axial and Angular Misalignment Be Managed Without Special Tools?

One of the most intimidating aspects of machinery installation is the perceived need for expensive laser alignment systems or dial indicator setups. However, when you use a correctly sized Universal Coupling, simple visual and feeler gauge methods are sufficient to achieve long service life. Our factory has developed a three step no special tools alignment procedure that has been used successfully by thousands of maintenance teams worldwide. Here is how to manage both axial and angular misalignment using only a straight edge, a set of feeler gauges, and a common tape measure.

• Step 1 – Rough parallel alignment using a straight edge: Place a machined straight edge (or a rigid metal ruler) across the two coupling hubs at the top, bottom, and sides. Adjust the equipment position until the straight edge contacts both hubs evenly. For a Universal Coupling, a gap variation of less than 1 mm along the hub length is acceptable. This rough alignment takes less than 5 minutes.
• Step 2 – Angular alignment check with feeler gauges: Insert a feeler gauge between the coupling faces at four quadrants (0, 90, 180, 270 degrees). The maximum difference in gap should not exceed 0.5 mm per 100 mm of coupling diameter. Because a Universal Coupling accommodates angular errors, this is not a critical tolerance; it is simply to prevent excessive bending of the shafts.
• Step 3 – Axial positioning: For telescoping Universal Coupling models, extend the spline section so that the coupling is centered in its travel range. Measure the distance between shaft ends and ensure that at least 15 mm of spline engagement remains at maximum equipment movement. No special tools are needed; a simple tape measure is sufficient.

After completing these three steps, tighten the clamp bolts or set screws according to the torque specification provided with your Universal Coupling. Then rotate the assembly by hand to feel for any binding. If rotation is smooth, the installation is complete. In contrast, with a rigid coupling, the same quick method would likely result in vibration and premature failure. Our factory has trained field service crews to use this no tools approach for over a decade, and the feedback is consistent: a Universal Coupling transforms alignment from a science into a simple routine.

But what about dynamic misalignment during operation? Machines often shift on their mounts due to torque reaction or thermal expansion. A rigid coupling would transmit these forces into the bearings, while a Universal Coupling simply flexes. Therefore, after the initial installation, periodic checks are still advised but are far less critical. We recommend inspecting the Universal Coupling every 500 operating hours for signs of grease leakage or unusual wear. If any minor misalignment is detected, the clamp bolts can be loosened, the equipment nudged, and the coupling retightened in under 30 minutes. This simplicity reduces the barrier to proper maintenance. Raydafon Technology Group Co.,Limited offers a laminated alignment card that fits in your toolbox, summarizing the three step method. By eliminating the need for lasers and dial indicators, our Universal Coupling empowers every mechanic to achieve professional grade alignment results on the first try.

Frequently Asked Questions (FAQ)

Question 1: Can a Universal Coupling compensate for both parallel offset and angular misalignment at the same time?

Answer: Yes, a Universal Coupling can simultaneously accommodate parallel offset and angular misalignment because its cross and bearing assembly provides two independent axes of rotation. When the driving and driven shafts have a parallel offset, the coupling creates a small angular deflection at each yoke. This combined effect is limited by the maximum working angle of the joint. For example, our Universal Coupling series allows up to 4 mm parallel offset and 8 degrees angular misalignment simultaneously without torque loss. However, if the offset is too large, the effective angle might exceed the coupling’s rating. Our factory provides an online misalignment calculator to help you verify combined limits.

Question 2: How does a splined telescopic Universal Coupling simplify axial installation when shaft distances are uncertain?

Answer: Splined telescopic Universal Couplings have a male and female splined section that slides axially. During installation, if the distance between shaft ends is not precisely known (e.g., after motor replacement), the technician simply extends or compresses the coupling to fit the gap. The spline transmits torque while allowing free axial movement, eliminating the need to cut shafts or add spacers. Our factory’s Universal Coupling design features a nylon coated spline that prevents fretting corrosion and ensures smooth sliding even after long periods without movement. This feature is particularly valuable in agricultural equipment where implement changes occur frequently.

Question 3: Does using a Universal Coupling eliminate the need for flexible mounts or rubber elements in a drivetrain?

Answer: While a Universal Coupling handles misalignment exceptionally well, it does not provide torsional vibration damping like a rubber or polyurethane coupling. For applications with significant torsional pulses (e.g., single cylinder engines or reciprocating compressors), we recommend combining a Universal Coupling with a separate vibration damper. However, for most electric motor to pump or gearbox applications, the Universal Coupling’s metal needle bearings do a good job of transmitting clean torque without introducing backlash. Our factory offers a composite disc version of the Universal Coupling that provides limited torsional compliance. Consult our engineering team for a full drivetrain analysis.

Question 4: What is the maximum recommended installation angle for a Universal Coupling to ensure long bearing life?

Answer: To achieve the design life of 10,000 operating hours, we recommend keeping the continuous operating angle below 15 degrees for single Universal Couplings and below 25 degrees for double cardan (CV) types. Installation angles above these values will still work but may reduce bearing life proportionally. For example, operating at 20 degrees in a single Universal Coupling may reduce bearing life to 4,000 hours. Our factory includes a life adjustment factor chart with every Universal Coupling shipment. During installation, always aim for the smallest possible angle, but do not worry about achieving zero angle – that is the beauty of the universal joint.

Question 5: How do I know if my Universal Coupling installation is too misaligned even for the coupling’s capacity?

Answer: There are three telltale signs of excessive misalignment during installation: first, you cannot slide the Universal Coupling fully onto both shafts without forcing; second, when you rotate the assembly by hand, you feel a distinct tight spot once per revolution; third, the clamp bolts seem to struggle to hold alignment. If you observe any of these, remeasure the angular and offset misalignment using a straight edge and protractor. If the values exceed our product table ratings, you must reposition the equipment or use a larger series Universal Coupling. Raydafon Technology Group Co.,Limited provides free technical support to diagnose installation issues via photo or video inspection, ensuring you never guess your way through alignment.

Conclusion: Simplify Your Next Installation with Our Universal Coupling

Machinery installation and alignment no longer have to be time consuming, expensive, or frustrating. As we have detailed, a high quality Universal Coupling from Raydafon Technology Group Co.,Limited directly addresses the core challenges of shaft misalignment. By eliminating the need for precision laser tools, reducing installation time by more than half, and providing forgiving axial and angular capacity, our Universal Coupling empowers your maintenance team to achieve reliable drivetrain performance on the very first attempt. Whether you are setting up a new production line, retrofitting an irrigation pump, or maintaining a fleet of harvesters, the principles of simplified alignment apply universally.

Ready to transform your installation process? Contact Raydafon Technology Group Co.,Limited today for a complimentary sizing consultation. Our factory can ship standard Universal Coupling models within 24 hours, and we also offer custom spline lengths and corrosion resistant coatings for harsh environments. Every coupling purchase includes our alignment quick guide and lifetime technical support. Do not let complicated alignment procedures delay your projects. Request a quote or engineering sample now and experience the difference that true simplification makes.
