Do you know the basic characteristics of Worm Gears and Worm Shafts?

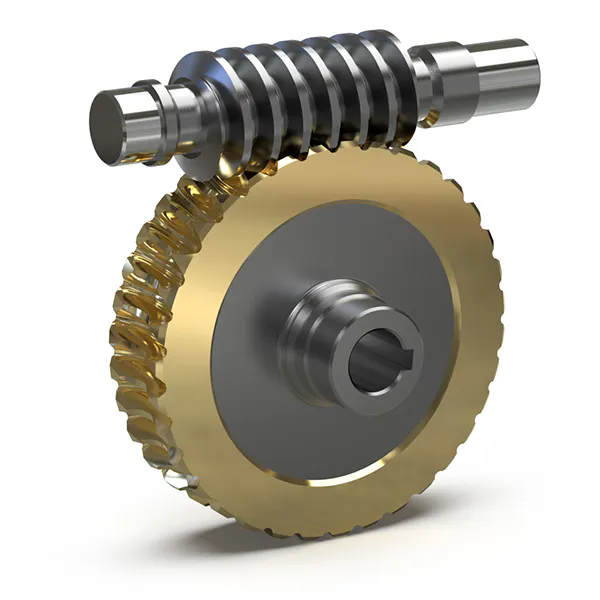

Worm Gears and Worm Shafts are classic mechanical transmission components, often used to connect and transmit motion and power between two intersecting shafts. Their operating principle is quite similar to that of rack and pinion gears and screws: the meshing of the worm gear and worm shaft achieves smooth transmission between the intersecting shafts. Next, Raydafon will introduce you to the basic characteristics of worm gears and worm shafts.

Large transmission ratios.

A significant advantage of Worm Gear and Worm Shaft transmissions is their ability to achieve large transmission ratios. Typically, the worm has fewer turns, while the worm wheel has a relatively large number of teeth. This is like using a small key to pry open a large lock, allowing a single-stage worm gear transmission to achieve a high reduction ratio. In applications where speed increases or decreases are required, worm gear transmissions are particularly effective.

High load capacity.

Because the meshing surfaces of the worm and worm wheel are in line contact, and multiple teeth are engaged simultaneously, they can withstand large loads. This makes Worm Gear and Worm Shaft transmissions excellent in applications requiring high power or heavy loads. They are commonly used in heavy machinery, mining machinery, and shipbuilding.

Smooth and quiet operation.

Because the meshing surfaces of Worm Gears and Worm Shafts are in line contact and the meshing process is continuous and smooth, they reduce shock and vibration, thereby reducing noise. Furthermore, the stability of worm gear transmissions is reflected in their ability to maintain a constant transmission speed. Because the meshing process is continuous and smooth, worm gear transmissions can transmit power with minimal speed fluctuations, thereby improving the operational stability and reliability of the machinery.

Self-locking.

When the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism exhibits self-locking properties, enabling reverse self-locking. This means that only the worm drives the worm wheel, while the worm wheel cannot drive the worm. This self-locking feature not only improves the safety of the machinery but also simplifies the design of the control system. This feature also makes it suitable for use in heavy machinery, where the reverse self-locking function provides a strong safety protection.

Compact structure.

Compared to other transmission types, Worm Gear and Worm Shaft transmissions offer smaller size and lighter weight for the same transmission ratio. This also reduces raw material usage, thereby lowering production costs. In practical applications, the compact structure also makes worm gear transmissions more convenient and faster during installation and commissioning.

With their unique line-contact transmission method, high load capacity, and compact structure, Worm Gear and Worm Shaft mechanisms are often used in applications with staggered shafts, high transmission ratios, low transmission power, or intermittent operation. The following table provides a guide to optimizing worm gear and worm shaft performance for your reference.
