PTO Shaft for Peecon Vertical Feed Mixers

Replacement PTO shafts for PEECON vertical feed mixers 865, 1100, 1300 and 1500. CAT6 constant velocity main shaft; tractor-side spline options 1.375-6 (540 rpm), 1.375-21 (1000 rpm) and 1.750-20 (1000 rpm); mixer-side input typically 1.750-6. Automatic cutout clutch torque 2,500–3,500 N·m; shear bolt yokes rated 2,920 N·m. Shaft length, yoke size, spline combination and shield configuration can be made to drawing. MOQ and lead time are confirmed per order because they depend on the model and the configuration. Send your mixer model and tractor PTO spline — we confirm the driveline combination and issue a quotation.
Send Inquiry
Product Description

Wholesale Replacement Driveline · PEECON Vertical Mixer Range

Wholesale PTO Shaft for PEECON Vertical Feed Mixers — Specifications, MOQ, Customization & Lead Time for Feed Mixer Replacement

When a vertical feed mixer PTO shaft fails, the baler or mixer stops, and the replacement decision comes down to three checks: which PEECON model, which spline on the tractor side, and which clutch torque the mixer gearbox can take. This page lists those three items against the four mixer models in this range, together with the CV main shaft and clutch part numbers, so you can confirm the specification before you ask for a quotation.

Pricing & MOQBy quotation
Lead TimePer order
CustomizationDrawing-based
DocumentsOn request

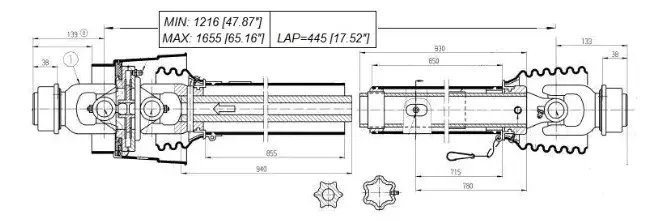

PTO shaft for PEECON vertical feed mixer — complete assembly with CAT6 constant velocity joint
PEECON vertical feed mixer PTO shaft — CAT6 constant velocity joint and 2500 series clutch end.

Key Specifications

  • Main shaftCAT6 constant velocity
  • Tractor spline1.375-6 · 1.375-21 · 1.750-20
  • Mixer inputTypically 1.750-6
  • Shaft torque3,800 N·m rated / 4,200 N·m peak
  • Clutch torque2,500 – 3,500 N·m
  • Shear bolt yoke2,920 N·m
  • Mixer models865 · 1100 · 1300 · 1500
  • Tractor power95 – 200 hp minimum
  • CustomizationLength, yoke, spline, shield

Model Matrix — Which PEECON Mixer Needs Which PTO

PEECON865
  • Capacity865 CFT
  • Augers2
  • Min. power95 hp
  • DrivelineCAT6 CV
  • SplineBy tractor
PEECON1100
  • Capacity1100 CFT
  • Augers2
  • Min. power135 hp
  • DrivelineCAT6 CV
  • SplineBy tractor
PEECON1300
  • Capacity1300 CFT
  • Augers3
  • Min. power180 hp
  • DrivelineCAT6 CV
  • SplineBy tractor
PEECON1500
  • Capacity1500 CFT
  • Augers3
  • Min. power200 hp
  • DrivelineCAT6 CV
  • SplineBy tractor

Most tractors in this power range use a 1.750-20 PTO stub and most PEECON mixers in this range use a 1.750-6 input shaft. Both sides are matched independently — the mixer side is fixed by the mixer, the tractor side is fixed by the tractor. Confirm both before ordering.

CAT6 Constant Velocity Main Shaft — Assembly and Half-Shaft Part Numbers

Complete CV assembly and half-shaft reference for the CAT6 main shaft
Tractor Output Shaft Complete CV Assembly Part Number CV 1/2 Shaft Part Number Implement Half (2500) Part Number
540 rpm, 1.375" × 6 spline 392206 392206-HALF 2500-IMPLEMENT-HALF
1000 rpm, 1.375" × 21 spline 392221 392221-HALF 2500-IMPLEMENT-HALF
1000 rpm, 1.750" × 20 spline 392220 392220-HALF 2500-IMPLEMENT-HALF

The complete CV assembly ships with the joint pre-greased. If you only need to replace one half, the half-shaft part number is the one you order. The implement half is shared across all three tractor-side variants.

Clutch and Yoke Selection — Torque Ratings and Part Numbers

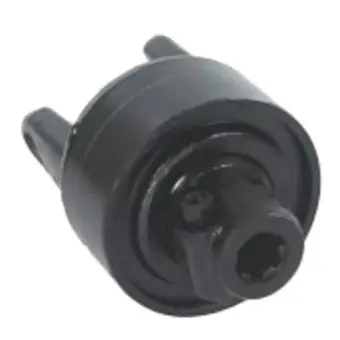

2500 series automatic cutout clutch for PEECON vertical feed mixer PTO shaft
2500 series automatic cutout clutch — K64 and K64/24 bodies.
2500 Series Automatic Cutout Clutches
Part Number Model Diameter Splines Torque
134467 K64/24 1.750 20 3,500 N·m
LAF20250MDAL67 K64 1.750 20 2,500 N·m
135416 K64/24 1.375 6 2,700 N·m
135362 K64/24 1.750 6 2,700 N·m
135986 K64/24 1.750 20 2,700 N·m

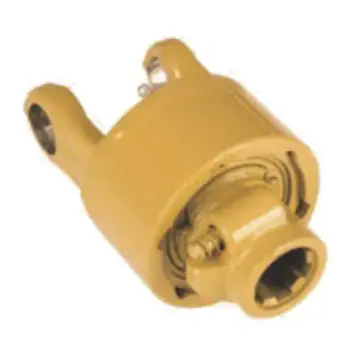

2500 series shear bolt yoke for PEECON vertical feed mixer PTO shaft
2500 series shear bolt yokes — KB61, KB61/2 and BTL bodies.
2500 Series Shear Bolt Yokes
Part Number Model Diameter Splines Torque
BTL67214810A KB61 1.375 21 —
BTL67385610A KB61 1.375 6 2,920 N·m
355272 KB61/2 1.375 6 2,920 N·m
4250104 KB61/2 1.375 6 2,920 N·m
BTL67205610A BTL 1.750 20 2,920 N·m
4250105 KB61/2 1.750 20 2,920 N·m
BTL67345610A KB61 1.750 6 2,920 N·m
338427 KB61/2 1.750 6 2,920 N·m
392340 KB61/2 1.9375 RD 0.50 key —

The two clutch families are not interchangeable in service. Automatic cutout clutches re-engage after slip, so they suit mixers that meet occasional overloads during start-up. Shear bolt yokes sacrifice the bolt on overload and need to be re-bolted before the mixer runs again, so they suit mixers where a broken bolt is easier to replace than an overheated clutch pack. Full reference for the wider range is on the PTO shaft for feed mixers page.

Specification Detail — Shaft, Joint and Shield

Shaft and Joint

Main shaft
CAT6 constant velocity
Shaft material
Hardened alloy steel, ground
Shaft diameter
φ62 mm
Joint angle
±45°
Bearing
Four-spherical roller
Rated torque
3,800 N·m
Peak torque
4,200 N·m
Speed range
540 – 1000 rpm

Seal and Protection

Seal material
Hydrogenated nitrile rubber
Seal temp. range
−45 °C to 130 °C
Dust cover
Three-lip with spiral chip groove
Shield
Full-coverage, quick-connect
Tractor power
80 – 220 hp
Mixer compatibility
PEECON, KUHN (20 m³ and above)
Customization
Length, yoke, spline, shield
Documentation
Supplied on request

Specifications above reflect the current production build. For non-standard shaft length or yoke size, the drawing governs. The wider range for other feed mixer brands, including Supreme feed mixers, is listed on the category page, and the matching feed mixer gearbox is on a separate page.

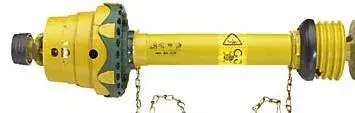

PTO shaft for PEECON vertical feed mixer — clutch end and shield detail
Clutch end and shield — quick-connect collar and full-coverage guard.
CAT6 constant velocity main shaft for PEECON vertical feed mixers
CAT6 constant velocity main shaft — joint body and half-shaft interface.
PEECON vertical feed mixer PTO shaft installed — U-joint and damper
Installed view — U-joint angle at the mixer input and damper location.

How the Order is Confirmed

Send model and spline

Provide the PEECON mixer model (865 / 1100 / 1300 / 1500) and the tractor PTO stub size.

Confirm the driveline

We return the matching CV assembly, clutch family and part number combination.

Drawing and quotation

For custom lengths or yokes, a drawing is issued before production. The quotation lists MOQ and lead time for the confirmed configuration.

Production and dispatch

Standard shafts move on the confirmed schedule; custom shafts move after the drawing is approved.

MOQ and lead time are quoted per order because they depend on the model, the spline combination and whether the shaft is standard or made to drawing. Nothing on this page commits to a fixed figure that would not hold for a different configuration. The PTO shaft range page lists the other agriculture categories.

Frequently Asked Questions

Which PEECON mixer models does this PTO shaft cover?

The 865, 1100, 1300 and 1500. Minimum tractor power for each is 95 hp, 135 hp, 180 hp and 200 hp respectively, as listed in the model matrix above. All four run a CAT6 constant velocity main shaft.

What spline is used on the tractor side and on the mixer side?

Most tractors in this range use a 1.750-20 spline, and most mixers use a 1.750-6 input shaft. The 1.375-6 (540 rpm) and 1.375-21 (1000 rpm) tractor-side options are also available. The tractor side and the mixer side are matched independently — confirm both before ordering.

What is the torque rating of the shaft and the clutch?

The CAT6 main shaft is rated to 3,800 N·m continuous and 4,200 N·m instantaneous peak. Automatic cutout clutches in the 2500 series range from 2,500 N·m to 3,500 N·m. Shear bolt yokes are rated at 2,920 N·m.

Can you supply a non-standard shaft length or yoke?

Yes. Shaft length, yoke size, spline combination and shield configuration can be made to drawing. Send the dimensions of the existing shaft, or a sketch with the joint centres marked, and we will confirm feasibility.

What are the MOQ and lead time?

MOQ and lead time are confirmed per order. They depend on the model, the spline combination and whether the shaft is standard or made to drawing. Send your mixer model and tractor PTO spline and we will issue a quotation listing the MOQ and lead time for that configuration.

Request a Quotation for Your PEECON Mixer

Send your PEECON mixer model (865 / 1100 / 1300 / 1500) and the tractor PTO stub size (1.375-6, 1.375-21 or 1.750-20). We confirm the driveline combination and part number, and issue a quotation with MOQ and lead time for that configuration. Custom lengths and yokes are quoted against drawing.

Request Quotation
Related Category
Send Inquiry
Contact Info
For inquiries about hydraulic cylinders, gearboxes, PTO shafts or price list, please leave your email to us and we will be in touch within 24 hours.
Related Products

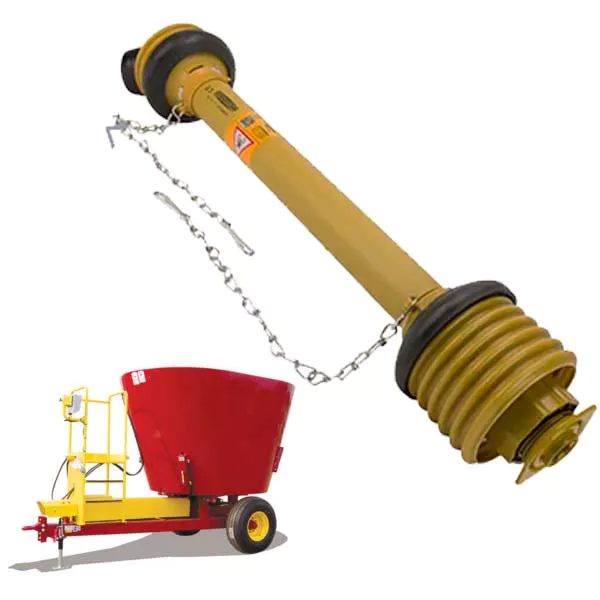

PTO Shaft for Supreme Feed Mixers
