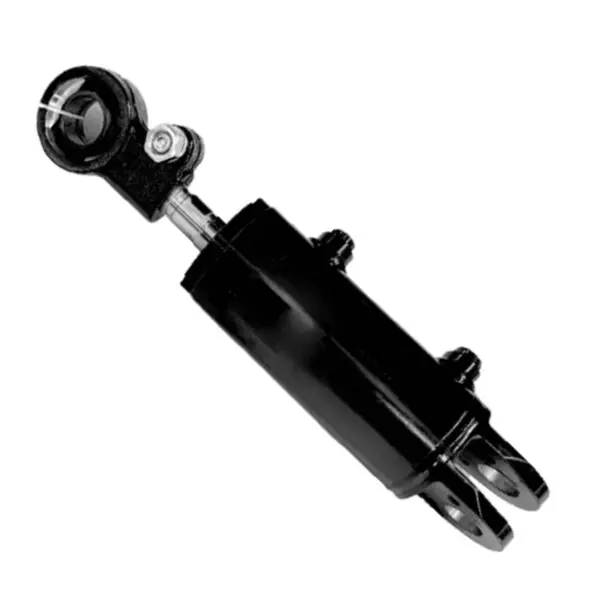

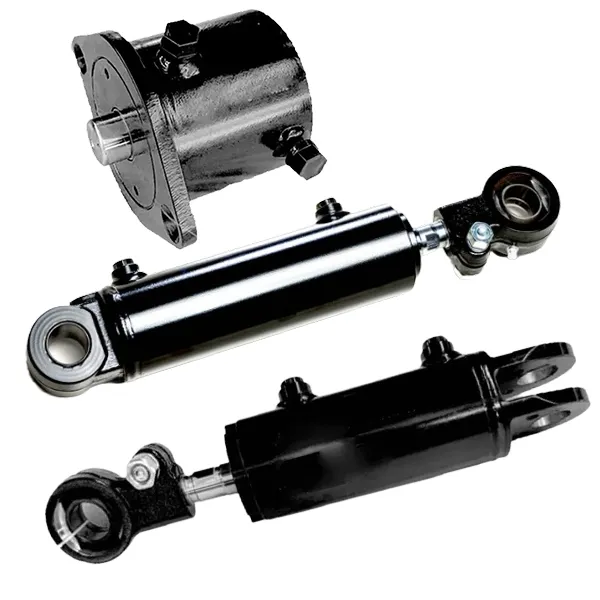

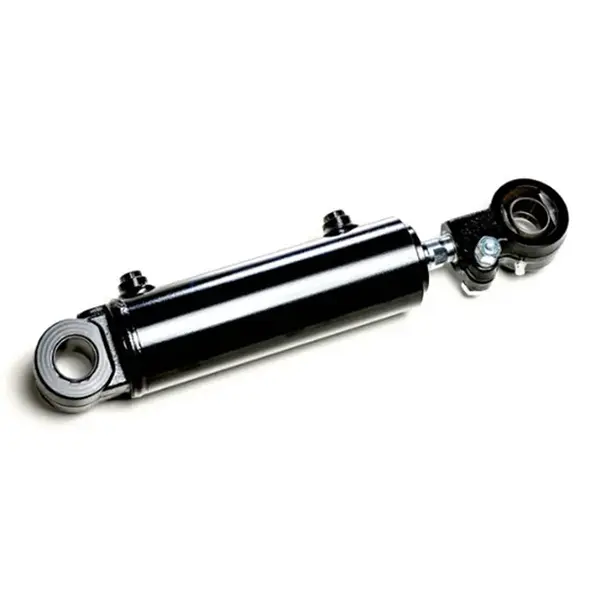

The forklift tilt cylinder is the hydraulic component that controls the forward and backward tilt of the mast and forks. Raydafon manufactures tilt cylinders for 1.5-18 ton forklifts using high-strength steel and a matched piston / rod / seal set. Working pressure is stable at 7-14 MPa under load. Screw fixation and a retaining ring connection allow oil seal replacement in minutes without removing the mast. Suitable for warehouse loading, factory lifting and port turnover.
1.5-18 ton
The cylinder is not assembled from commodity hardware. The piston, cylinder body, piston rod and seal set are matched as a set, similar to the way an experienced fitter hand-finishes a matched pair. That is why the cylinder runs stably under high pressure for years without losing gland pressure.

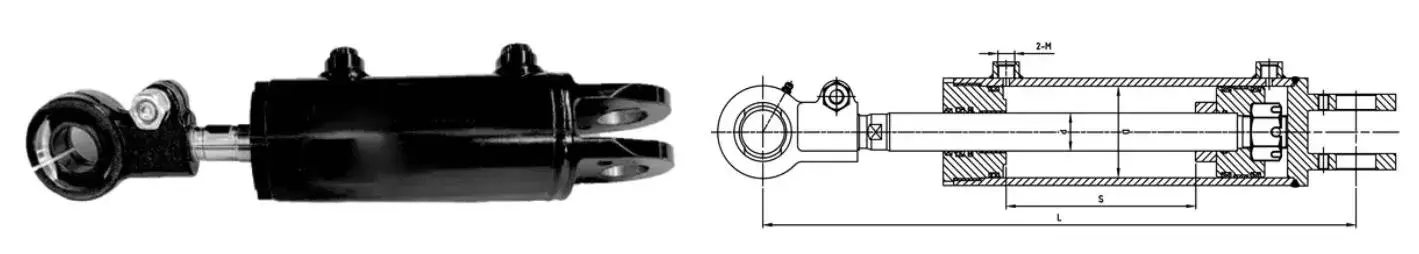

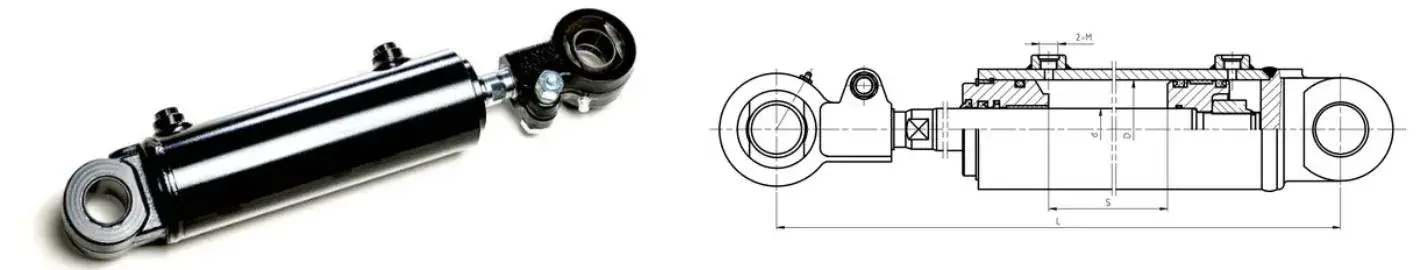

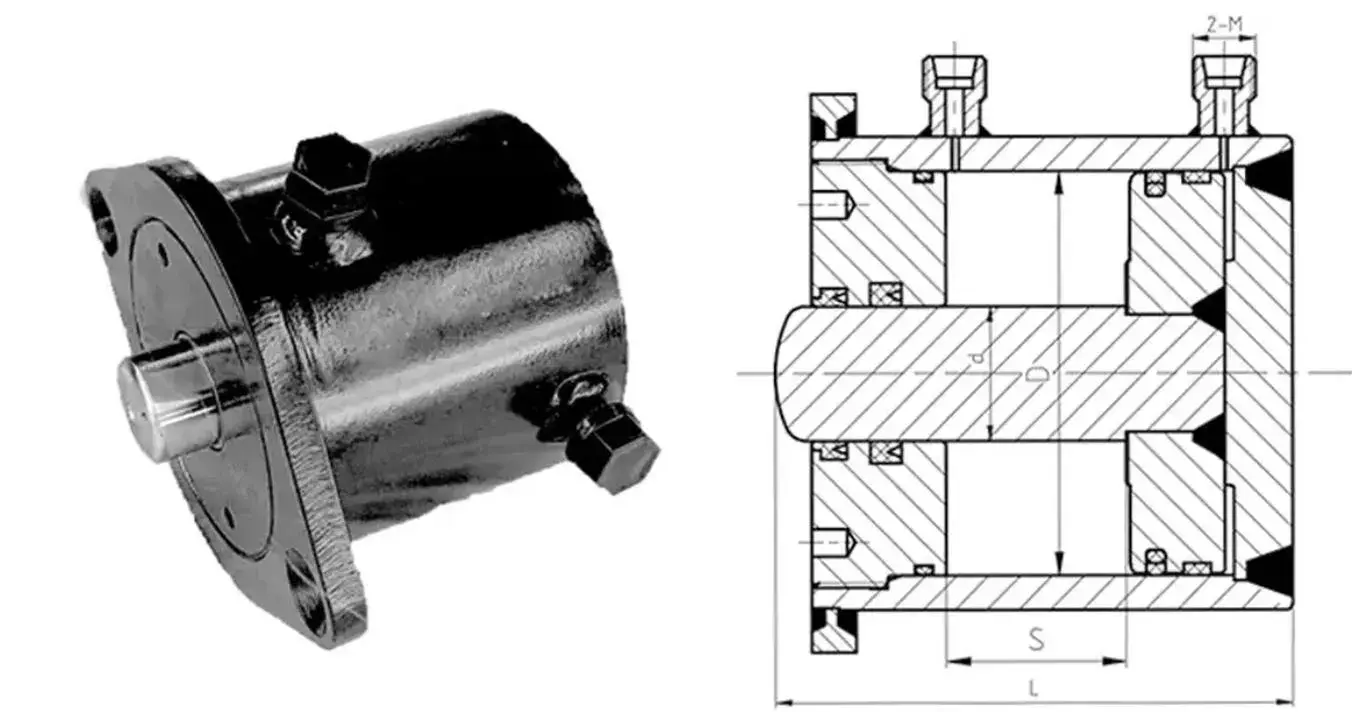

Different forklift tonnages use different inner diameters and strokes, so the tilt cylinder model has to match the truck. Raydafon stocks and produces seven standard models from QA20V500 through A45M300, and can produce a custom model against a customer drawing. For trucks that need the vertical lift function instead, Raydafon also produces the Forklift Lift Cylinder.

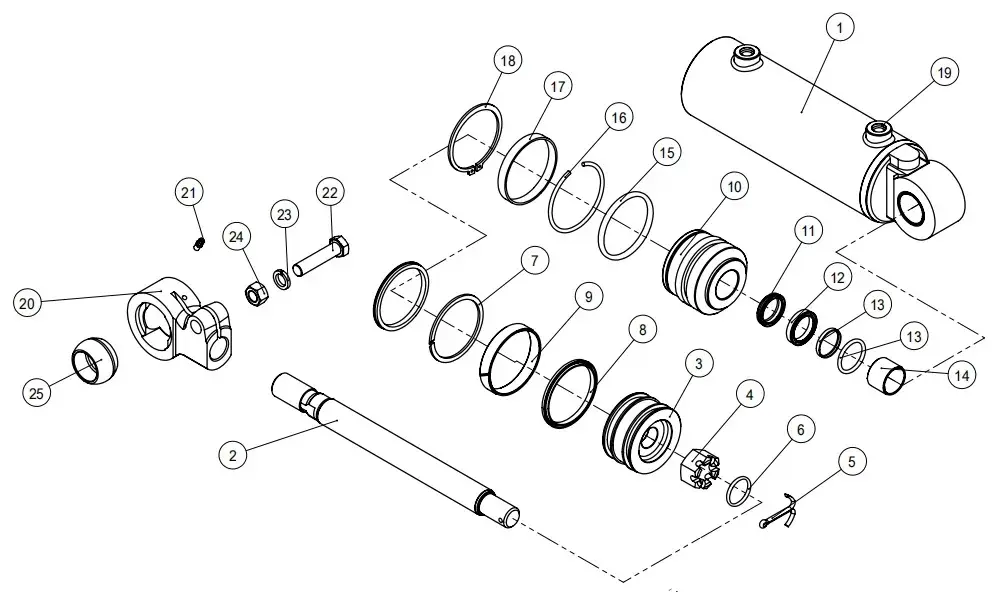

Parts are numbered below to match the exploded view. Numbers 1-25 correspond to the diagram above.
Choose the model that matches your forklift tonnage and mounting pattern, or send your OEM drawing for a custom build. All models listed below share the same matched piston / rod / seal architecture.
Can't find your model? Send the OEM drawing number or a physical sample. Raydafon reverse-engineers, produces a sample and quotes the batch on the same drawing. For the wider forklift hydraulic cylinder range, see the Forklift Hydraulic Cylinder category.
The tilt cylinder pushes the piston in a reciprocating motion which drives the mast to tilt forward and backward. Hydraulic oil enters through one of the two ports at the cylinder base; the piston rod extends and pushes the mast forward, or retracts and pulls the mast back. Different from other hydraulic components, this cylinder runs smoothly in both directions because the bore and rod surfaces are matched to the seal set.
On heavy or irregular cargo, the operator uses the tilt function to level the load before lifting. Accurate angle control is what prevents the load from shifting and keeps the truck stable. Raydafon tests the tilt cylinder under 7-14 MPa working pressure to confirm that the response stays smooth under full load.
The matched piston, rod and seal set keeps pressure stable at 7-14 MPa. No fluctuation under heavy load or during long working shifts.
Seals are made from wear-resistant compound with low oil leakage and low wear. Reliable in dusty warehouses or humid environments.
Screw fixation and retaining ring connection allow oil seal replacement in minutes. No need to remove the entire mast from the truck.
Bore Φ60 to Φ100, rod Φ25 to Φ40, stroke 32 to 193 mm. Covers most 1.5-18 ton forklift applications without a custom tooling order.
Send a forklift brand and model, or a drawing number. Raydafon reverse-engineers, samples and quotes a custom batch on the same drawing.

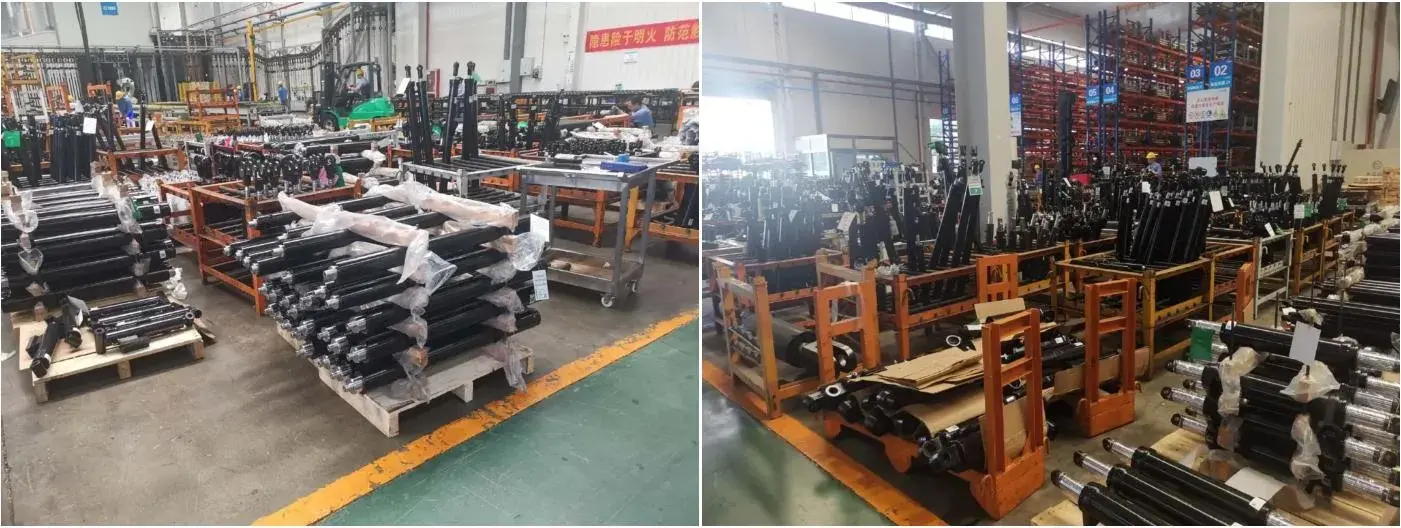

Produced in Raydafon's own plant. Customers deal with the manufacturer, not a trader. Fast after-sales response and stable batch quality.
Container loading, pallet picking and shelf transfer where the operator needs to level the load before lifting. Accurate angle control prevents cargo shifting.
Heavy or irregular industrial loads where the forklift needs to tilt the mast forward or backward to balance the load during the lift cycle.
Continuous heavy-duty cycle environments where the tilt cylinder works thousands of cycles per shift. Matched seals and low wear keep it running without leaks.
Forklift dealers and aftermarket suppliers who need a reliable OEM-equivalent tilt cylinder for 1.5-18 ton trucks. Warehouse stock and custom production both available.
Send forklift brand and model, tonnage, required bore/rod/stroke, port size, quantity and destination port.
Raydafon confirms whether a standard model (QA20V500 / S16N450 / RTE35M300 / A15N450 / A30M300 / A35M300 / A45M300) fits, or if a custom build is required.
For custom builds, Raydafon reverse-engineers the OEM part, produces a sample, and confirms bore, stroke, installation distance and port dimensions with the buyer.
High-strength steel cylinder body is honed to tolerance. Piston rod is ground and hard chrome plated for wear resistance.
Piston, seals, guide bush and clevis are assembled. Cylinder is pressure-tested for leakage and smooth stroke at rated pressure.
Cylinders are packed in wooden cases with anti-rust oil and protective end caps. Shipped by sea, air or express with packing list, invoice and inspection report.
Cylinder body and rod material certificate, seal compound data sheet provided with each shipment.
Each cylinder pressure-tested at rated pressure before packing. Leakage, stroke smoothness and port fitting are recorded.
Bore, rod, stroke, installation distance and port dimensions recorded against the ordered specification or customer drawing.
Wooden case with anti-rust oil and protective end caps. Large cylinder batches palletized and strapped for sea freight.
A forklift tilt cylinder is a hydraulic cylinder that controls the forward and backward tilt of the mast and forks. It is one of the core components of the forklift hydraulic system, alongside the lift cylinder and steering cylinder. When the operator moves the tilt lever, the cylinder extends or retracts, which rotates the mast about its bottom pivot and changes the fork angle.
Raydafon produces forklift tilt cylinders for 1.5-ton to 18-ton forklifts. Standard models cover bore diameters from Φ60 mm to Φ100 mm, rod diameters from Φ25 mm to Φ40 mm, and strokes from 32 mm to 193 mm. Custom bore and stroke are available for OEM forklift brands.
The cylinder is rated for 7-14 MPa working pressure across the standard model range, with peak pressure capability tested at 18.1 MPa on specific models such as S16N450-600000-001Z and RTE35M300-600000-500.
The cylinder housing and piston rod are made from high-strength steel. The seal set includes a dust wiper, U-ring, rod seal, hole seal, back-ring, O-ring, wear-ring and du bush. The seals use wear-resistant compound, which gives low oil leakage and low wear in dusty warehouse or humid environments.
The cylinder uses screw fixation and a retaining ring connection. Maintenance staff can replace the oil seal or troubleshoot the cylinder by unscrewing the screws and removing the retaining ring. This can be done in minutes without removing the entire mast from the forklift.
Yes. Raydafon supports OEM production against a customer drawing or existing sample. Send the forklift brand and model, bore diameter, rod diameter, stroke, installation distance, port size and quantity, and Raydafon will quote a custom tilt cylinder.
MOQ is 50 units per model. Bulk lead time is 25-35 days after deposit and drawing approval, depending on model complexity and order quantity.
Send your forklift model and tonnage, required bore diameter, rod diameter, stroke, installation distance, port size, quantity and destination port. Raydafon will reply with an FOB Ningbo quotation, lead time and packing details.
Send your forklift model and tonnage, bore/stroke requirement, port size and order quantity. Raydafon will confirm the model or design a custom build, then offer an FOB Ningbo quotation with lead time and packing details.
